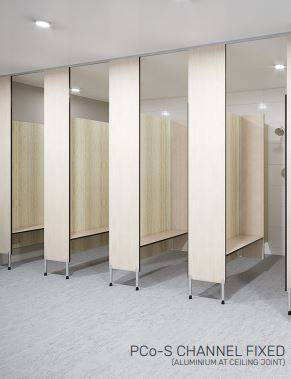

Shower cubicle - Pedestal Mounted Ceiling Fixed – (PC-S)
Verified by manufacturer over a year ago
Compact Laminate Colour Palettes - ComLam colours
Compact Laminate Colour Palettes - ComLam colours
Pedestal Mounted Ceiling Fixed Shower Cubicle System.
Application
- Most practical material for toilet partitions, particularly in wet and high traffic environments such as toilet cubicles, change rooms, playgrounds and hospitals.
- Mounted above the wash area, PC panels come in the full range of Compact Laminate colours.
Description
The TPI Pedestal Mounted Ceiling fixed (PC-S) shower partition system maximises the feeling of space in low ceiling rooms whilst delivering a streamlined, vertical aesthetic in high ceiling rooms.
Material Benefits:
13 mm Compact Laminate
Available in a variety of design alternatives due to the range of colours and surface finish options.
- Impact, fire and scratch-resistant.
- Waterproof.
- Easy to clean.
- Bacteria resistant.
General information
Color | Manufacturer guidanceCompact laminates colour options are available in:
Also available in polished stone and other board suppliers colour range. To check with the manufacturer. |
Material | Compact laminate (HPL) boards. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Seven year |
Uniclass | |
NATSPEC National Classification System | 0525 Cubicle Systems |
SpecPack | 10150 Toilet Compartments |
SpeedSpec | 10150 Toilet and Similar Compartments |
Specification data - Panel cubicle systems
Enclosures | |
Panels | Compact laminate (HPL) boards. |
Panel supports | Cubicle and partition legs. |
Access | |
Doors | Compact laminate (HPL) boards. |
Hardware | Metlam® Xcel series (Standard).Manufacturer guidanceAvailable in wide range of door furniture options: Metlam® Xcel series Black. Novas Pinnacle. Novas Ultima. Metlam® 300. |
System accessories | TPI’s patented Modulux® Total privacy solution.Bench seating. |
Standard | To AS 1428.1 - 2009. |
Colour | Black. Charcoal. White. |
Overall height | 2400 mm. |
Width | 300 mm. Guidance for specification option: Frontal panel width. |
Cubicle depth | 1800 mm. |
Height | 1700 mm. Guidance for specification option: Door height. |
Door width | 595 – 600 mm. Guidance for specification option: Standard door width. 720 - 750 mm. Guidance for specification option: Ambulant door width. |
Thickness | 13 mm. Guidance for specification option: Compact laminate thickness. |
Seat | Shower seat. |
Length | 900 mm. Guidance for specification option: Seat nominal length. Width at 300 mm. |
Height | 450 mm. |
Shower Enclosure Side Panel | Splash nib panel. |
Panel size | 1700 x 300 mm. |
Aluminium profile finish | Square clear anodised. Square powder coated. |
Fixing | PCa-S – Angle fixed. PCo -S– Continuous channel. |
