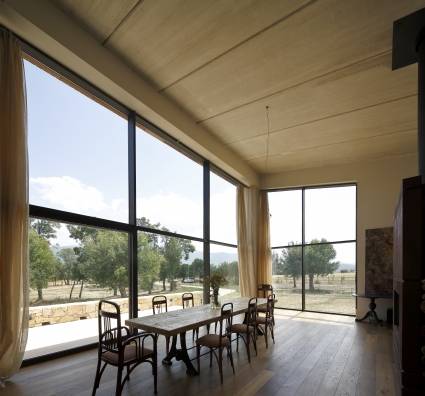

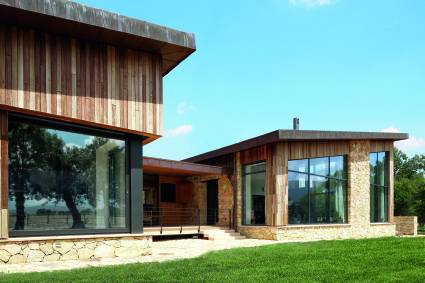

Schüco ASS 50 sliding system

Verified by manufacturer over a year ago

Capral Aluminium

Thermally Broken Aluminium Lift & Slide Door.

Jump to:
+61 7 3816 7500 Website

Application

Residential and Commercial.

Description

The Schüco ASS 50 thermally broken sliding system with lift & slide operation is very easy to move. Panels can be up to 3m tall or 3m wide and up to 400kgs in weight when closed, the door is perfect weather tight, providing excellent thermal insulation and sound reduction. Up to three tracks allow large opening widths and the door can therefore be used with great flexibility in large glass constructions.

General information

Color

Clear glass specification can be changed as required.

-

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Size

Maximum recommended sizes: 3300 mm (H) x 3000 mm (W).

-

Width

3000 mm

Height

3000 mm

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

NATSPEC National Classification System

0451 Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

Specification data - Sliding door and partition sets

Operation:

Manual.

Configurations

Slider.

Stacker.

Biparting.

MultiSlide.

Door panels

Door Height: 3 m. Door Width 3 m. Weight up to 400 kgs.

Frame dimensions

For detailed interlock information please contact Capral Spec Team.

2 Track 120mm x 38mm.

3 Track 185mm x 38mm.

Glazing

Single.

Double.

Performance:

Max SLS: 930pa / ULS: 1400pa / WATER: 150pa.

Standard

AS2047.

Acoustics

Rw 40(-2C;-4Ctr).

Cyclonic impact testing

No

Bushfire attack level (BAL)

up to BAL29 DTS.

Hardware

• Lift & Slide Handle.
• SmartStop Closer.

Accessories:

Trickle Vents.

Security Screen.

Flyscreen.

Environmental information

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8 kg·CO₂e/kg

Recyclability

100% Recyclable.
