Safebridge® Purlin and Insulation System
Verified by manufacturer over a year ago
High performance roof frame and insulation system.
Application
Can be adapted to almost any commercial or industrial roof structure in both cyclonic and non-cyclonic regions.
Description

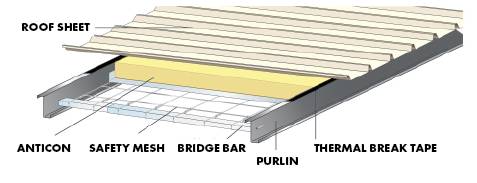

Safebridge® Purlin and Insulation System is a high performance roof insulation system that utilises existing purlin space to achieve energy efficiency. Some features of this system include:
- Can achieve high thermal performance in any climate zone.
- Requires no additional roof spacers to elevate the roof sheet above the purlin.
- Retains structural integrity and load points of the roof interior.
- Suits most roof pitches and complex roof designs.
- Available with either foil, decorative or acoustic finishes on the internal faced insulation.
- Creates a safer work environment during construction.
General information
Color | Manufacturer guidanceCan be installed with either foil, decorative or acoustic finishes on the internal faced insulation material. |
Finish | Manufacturer guidanceCan be installed with either foil, decorative or acoustic finishes on the internal faced insulation material. |
Material | Steel |
Size | Manufacturer guidanceRefers to purlin size only. Standard sizes are 150 mm, 200 mm, 250 mm and 300 mm. System can be customised in an infinite combination of purlin depth and insulation products for varying thermal needs. |
Uniclass | |
NATSPEC National Classification System | 0421 Roofing - Combined |
SpeedSpec | 07610 Roofing and Roof Plumbing |
SpecPack | 07600 Metal Roofing, Siding and Roof Plumbing |
Specification data - Glass fibre insulation
Form | Anticon SB75 Rₘ1.8.Anticon SB95 Rₘ2.3.Anticon SB110 Rₘ2.5.Anticon SB130 Rₘ3.0.Anticon SB125 Rₘ2.8.Anticon SB140 Rₘ3.3.Anticon SB145 Rₘ3.6.Anticon SB110 + SB55 Rₘ3.8.Anticon SB130 + SB55 Rₘ4.3.Anticon SB140 + SB55 Rₘ4.6. |
FrameSize | Manufacturer guidanceRefers to purlin size. Standard sizes are 150 mm, 200 mm, 250 mm and 300 mm. Custom depths are available. |
Roof type | Metal roof with no ceiling - R0900 (reflective). Metal roof with no ceiling - R0900 (non-reflective). Metal roof with suspended ceiling - R1000 (100-600 mm cavity). Metal roof with suspended ceiling - R1000 (grater than 600 mm cavity). |
Framing | 150 mm Metroll Safebridge® Purlins. 200 mm Metroll Safebridge® Purlins. 250 mm Metroll Safebridge® Purlins. 300 mm Metroll Safebridge® Purlins. Manufacturer guidanceCustom depths are available. |
Bar type | Metroll SafeBridge® Bridge Bars. Guidance for specification option: Specify the length required which is the spacing on the purlins. |
Vapour barrier | Bradford Thermoplast 993 White. |
Mesh | Australian Mesh SB SafeBridge® Safety Mesh. Guidance for specification option: Specify the width of mesh required installed between purlins. |
Thermal break | 10 mm Bradford Thermal Break Tape. Guidance for specification option: Between purlin and roof sheet. |
Fasteners | ITW Buildex Metal Tech Screws. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Australia |
Country of product manufacture | Australia |
Literature
SafeBridge® Installation Guide
