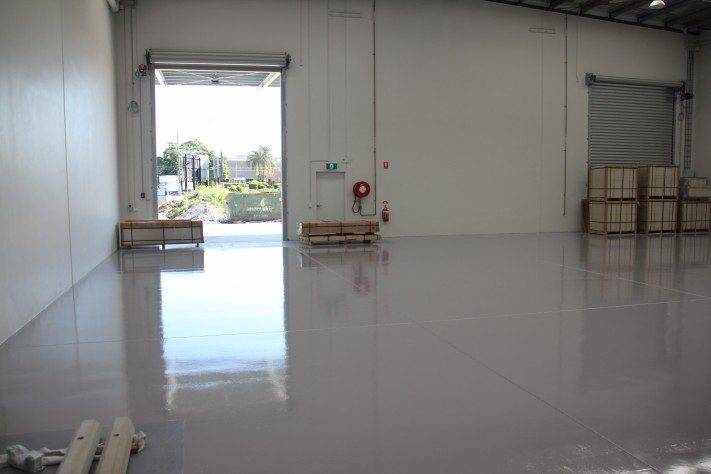

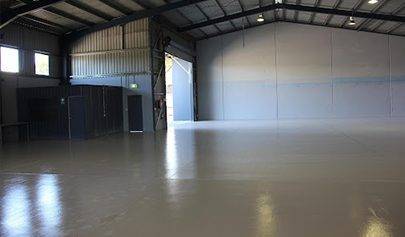

Resin Guard™ Flooring System

Verified by manufacturer over a year ago

Premium

Real World Epoxies Pty Ltd Variant:

High performance protective rollcoat flooring system.

Jump to:
+61 1300 376 943 Website

Application

Suitable for commercial spaces, such as:

  • Warehouses
  • Workshops.
  • Factories.
  • Other high traffic areas.

Description

Resin Guard™ is a high performance commercial resin flooring system specially designed to seal and protect high traffic areas. Some of its features include:

  • Smooth, solid colour.
  • Resistance to wear, chemicals and impact.
  • Completely seamless and easy to clean.
  • Solvent free mixture.
  • Extra options available, e.g. added chemical and impact resistance, as well as a specialist topcoat for UV resistance.

General information

Color

-

Manufacturer guidance

Base coat and top coat are tintable to all Australian Standard colours.

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

NATSPEC National Classification System

0657 Resin Based Seamless Flooring

SpecPack

03360 Concrete Finishes

SpeedSpec

03365 Concrete Finishes

Specification data - Resin flooring systems

Execution

Must be installed by a licensed resin flooring installer (where applicable), with proven experience in the application of thin-film rollcoat flooring systems.

Substrate

Concrete substrate must be prepared in accordance to manufacturer's specification.

Primer

Ezypoxy Clear (DFT: 150 microns).

Guidance for specification option:

Required on some surfaces.

Manufacturer guidance

Optional.

Basecoat

Jaxxon 1525 (DFT: 200–300 microns).

Colour

Black.

Guidance for specification option:

Non-Australian standard colour.


Bridge Grey (N44).

Koala Grey (N45).

Light Grey (N35).

Manilla (Y45).

Show more

Manufacturer guidance

Select tint for base coat.

Tintable to all Australian Standard colours upon request. Contact manufacturer for details.

Top coat

Jaxxon 1505 (DFT: 100–300 microns).

Colour

Black.

Guidance for specification option:

Non-Australian standard colour.


Bridge Grey (N44).

Koala Grey (N45).

Light Grey (N35).

Manilla (Y45).

Show more

Manufacturer guidance

Select tint for top coat.

Tintable to all Australian Standard colours upon request. Contact manufacturer for details.

Finish

Gloss.

Fire performance

8.5 kW/m².

Guidance for specification option:

Epoxy TDFT: 700 microns.

Urethane TDFT: 100 microns.

Manufacturer guidance

To AS ISO 9239.1-2003.

Smoke generation

175%.

Guidance for specification option:

Epoxy TDFT: 700 microns.

Urethane TDFT: 100 microns.

Sustainability data

Country of product manufacture

Australia
