Resin Grip™ Flooring System
Verified by manufacturer over a year ago
Standard
Standard
High performance protective non-slip flooring system.
Application
Suitable for commercial spaces, such as:
- Workshops.
- Food processing facilities.
- Cafes, restaurants and bakeries.
- Wet areas.
Description
Resin Grip™ is a high performance commercial floor finish specially designed to seal, protect and offer lasting slip resistance to various facilities and wet areas. Some of its features include:
- Resistance to wear, chemicals and impact.
- Completely seamless and easy to clean.
- Solvent free mixture.
- Extra options available, e.g. added chemical and impact resistance, as well as a specialist topcoat for UV resistance.
General information
Color | Manufacturer guidanceBase coat and top coat are tintable to all Australian Standard colours. |
Uniclass | |
NATSPEC National Classification System | 0657 Resin Based Seamless Flooring |
SpecPack | 03360 Concrete Finishes |
SpeedSpec | 03365 Concrete Finishes |
Specification data - Resin flooring systems
Execution | Must be installed by a licensed resin flooring installer (where applicable), with proven experience in the application of thin-film broadcast flooring systems. |
Substrate | Concrete substrate must be prepared in accordance to manufacturer's specification. |
Primer | Ezypoxy Clear (DFT: 150 microns). Guidance for specification option: Required on some surfaces. RWE Resin Grip HD broadcast layer or Ezypoxy Rollcoat topcoat. Manufacturer guidanceOptional. |
Basecoat | Ezypoxy Rollcoat (DFT: 250 microns) with saturated broadcast. |
Aggregate broadcast | RWE Resin Grip HD. Manufacturer guidanceA lower concentration of non-slip particle or a finer particle can be used to reduce the slip rating. |
Colour | Black. Guidance for specification option: Non-Australian standard colour. Bridge Grey (N44). Koala Grey (N45). Light Grey (N35). Manilla (Y45). Manufacturer guidanceSelect tint for base coat. Tintable to all Australian Standard colours upon request. Contact manufacturer for details. |
Top coat | Ezypoxy Rollcoat (DFT: 250 microns). |
Colour | Black. Guidance for specification option: Non-Australian standard colour. Bridge Grey (N44). Koala Grey (N45). Light Grey (N35). Manilla (Y45). Manufacturer guidanceSelect tint for top coat. Tintable to all Australian Standard colours upon request. Contact manufacturer for details. |
Finish | Semi-gloss with subtle stipple texture. Manufacturer guidanceThis is a non-slip system with a textured profile from the broadcast material (ranging from P2-P5). |
Fire performance | 8.5 kW/m². Guidance for specification option: Epoxy TDFT: 700 microns. Mineral filler: 1.2 kg/m². Urethane TDFT: 100 microns. Manufacturer guidanceTo AS ISO 9239.1-2003. |
Smoke generation | 175%. |
Sustainability data
Country of product manufacture | Australia |
Literature
Resin Flooring system Fire Test Summary

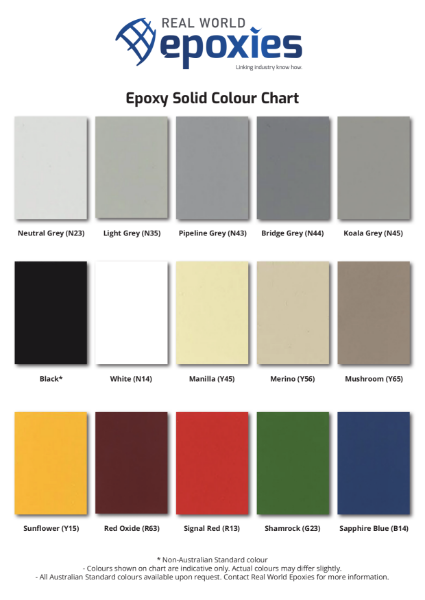

Colour chart - Resin Guard, Resin Grip and Resin Rock
Resin Grip Brochure
Resin Grip Maintenance Guide

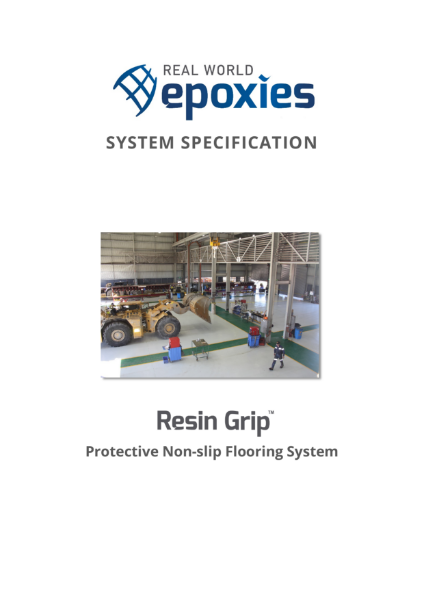

Resin Grip Specification
Case studies
Resin Grip - Boral
Resin Grip - Queensland Rail
Resin Grip - Rio Tinto
Resin Grip - TGI Fridays
Resin Grip - Thomas Borthwick & Sons
