Reapor® 25/625625
Reapor® 25/625625
Eco-friendly sound and noise absorbers for challenging environments.
Application
Suitable for indoor and outdoor applications, and can be applied to the following areas such as:

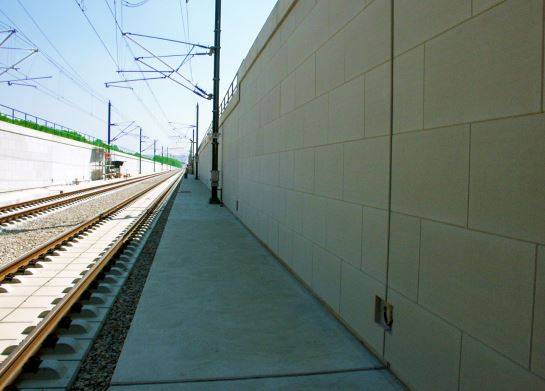

- Rail and motorway tunnels, vent shafts and noise barriers.
- Outdoor cafes, bars and restaurants.
- Interior walls and ceilings of offices, retail spaces, hospitals, schools and aged care facilities.
- Fire exits and stairwells.
- HVAC, genset plant rooms and substations.
- Machinery or industrial noise enclosures.
- Shooting ranges.
- Airports, stations, and carparks.
- Road barriers and exterior plant fences.
Description
High-performance noise absorbers that look like cut stone. Constructed from small aerated granules made from recycled glass. It comes with significant features such as:
- Resists weather, water and UV exposure over an extended period
- Exceptionally high NRC of 0.95 (50 mm thick panel)
- Easy to install, easy to cut, drill and rout using standard woodworking tools.
- Forms a durable, lightweight, fibre-free, non-combustible and natural 'stone-like' panels to suit indoor and outdoor designs.
- Low VOC, no smoke emission or volatiles released when exposed to fire or flames.
- Made from recycled glass.
- No binders are used to enhance absorption performance.
General information
Material | Heat sintered glass granule beads. |
Size | 625 (H) x 625 (W) x 50 mm (T) |
Warranty description | Manufacturer guidanceWarranty by request. To check with the manufacturer for details. |
Uniclass | |
NATSPEC National Classification System | 0472 Acoustic Insulation 0434 Cladding - Flat Sheets and Panels 0431 Cladding - Combined |
SpecPack | 07415 Steel-Faced Autoclaved Aerated Concrete (AAC) Panels 07200 Thermal and Acoustic Insulation |
SpeedSpec | 07462 Cladding External Walls 07200 Thermal and Acoustic Insulation |
Specification data - Glass barrier panels
Standards | To AS/NZS 3837.Guidance for specification option: In compliance to NCC and NZBC. |
Certification | Green Building Council of Australia ‘Green Star’ credit IEQ-13. |
Colour | Light grey. |
Finish: | Highly porous. |
Material: | Small aerated granules made from recycled glass. |
Form | Hard, lightweight, fibre-free, non-combustible stone-like panel. |
Thickness | 25 mm. |
Length | 625 mm. |
Width | 625 mm. |
Density | 270 kg/m³. |
Panel weight | 2.6 kg. |
Standard | To AS 1530.1 and AS 1530.3. |
Fire resistance | Non - combustible. Guidance for specification option: Test method done as per AS 1530.1/ISO 1182. |
Fire performance | 0. Guidance for specification option: Spread of flame, ignitability and heat evolve - 0. 1. Guidance for specification option: Smoke developed - 1. Manufacturer guidanceTest method as per AS 1530.3. |
Thermal Conductivity: | 0.077 W/mK. |
Noise reduction coefficient | 0.65. Guidance for specification option: NRC value for Reapor 25 mm. 0.45 Guidance for specification option: Weighted sound absorption rating (αW) for Reapor 25 mm. |
VOC content | 0.026 mg/m² per hour. |
Formaldehyde emissions | < 0.005 mg/m² per hour. |
Sustainability data
Contains Red List materials | Yes |
Recyclability | Made from recycled glass. |
