Procore A1®
Verified by manufacturer over a year ago
Procore A1® Solid Colours
Procore A1® Solid Colours
A DtS non-combustible, superior construction grade aluminium cladding panel.
Application
This product is ideal for the following applications:
- Exterior cladding.
- High-rise buildings.
- Airport cladding.
- Fascia.
- Formwork.
- Schools.
- Hospitals.
Description
Procore A1® is a superior Deemed-to-Satisfy (DtS) non-combustible, construction grade aluminium cladding panel, with a unique profiled aluminium core and durable coating. It comes with significant features such as:
- BCA approved Non-combustible.
- Tested to AS1530.1 & AS1530.3
- Non-Combustible aluminium core technology.
- Zero Polyethylene.
- Visually the same as traditional composite panels.
- Cost-effective, large stock holdings and short lead times
- CSIRO Certified.
- Superior CNC, V-groove & fold performance.
- Light-weight, only weighs 4.5kg/m2.
- Enhance with high-quality PVDF coating system for long-term durability and optimum resistance to weather.
- Requires minimal maintenance.
- Delivers superior performance when fabricated, folded and formed.
General information
Color | Manufacturer guidanceWide range of colours options are available. Check with the manufacturer. |
Material | Aluminium. |
Size | 3200 x 1500 mm. 4000 x 1500 mm. Manufacturer guidanceCustom sizes are available. Check with the manufacturer. |
Uniclass | |
NATSPEC National Classification System | 0434 Cladding - Flat Sheets and Panels 0431 Cladding - Combined |
SpeedSpec | 07462 Cladding External Walls |
SpecPack | 07430 Sandwich Panels |
Specification data - Aluminium-faced aluminium core panels
Fire performance | |
Combustibility | Non-combustible.Guidance for specification option: Test method as per AS 1530.1. |
Fire hazard properties | |
Standard | To AS 1530.1 & AS 1530.3. |
Group number | Group 1. |
Flammability index | 0.Guidance for specification option: Ignatability and heat index rating as per AS 1530.3. |
Spread of flame index | 0.Guidance for specification option: Test method for spread of flame as per AS 1530.3. |
Smoke developed index | 2.Guidance for specification option: Test method for smoke developed as per AS 1530.3. |
Panel dimensions | |
Length | 3200 mm.4000 mm. |
Width | 1500 mm. |
Overall thickness | 4 mm. |
Finish as delivered | |
Coating | PPG Kynar 500 PVDF-coating. |
Dry film thickness | 27 - 28 μm.Guidance for specification option: Overall paint thickness in microns. 0.20 - 0.30 mil (Primer).0.70 - 0.80 mil (Topcoat). |
Colour | Anthracite Grey PC6210. Atomic Orange PC6135. Bee Sting PC6244. Brown Earth PC6272. Bushland Green PC6227. Manufacturer guidanceColours may vary from the actual product due to print variations. Confirm colour against a panel sample. Check with the manufacturer. |
Finish: | Satin or Gloss finish. Guidance for specification option: Finish for Gloss Onyx Black PC6297 and Gloss Vivid White PC6011. |
Core facing material | 5005 Series marine grade aluminium. |
Thickness | 0.70 mm (Face). 0.50 mm (Back). |
Adhesive | Henkel™ hot melt adhesive. |

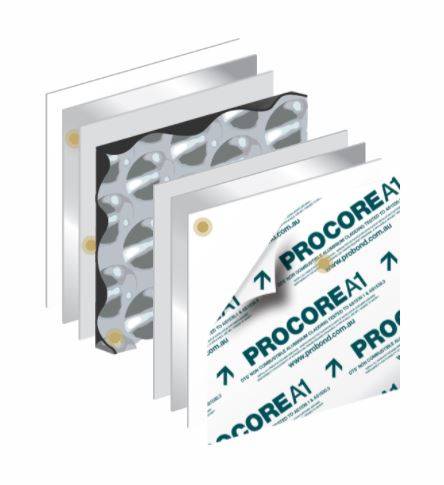

Core | Unique technology aluminium profiled sheet. |
Sustainability data
Contains Red List materials | No |
Recyclability | 100% Recyclable. |
Literature

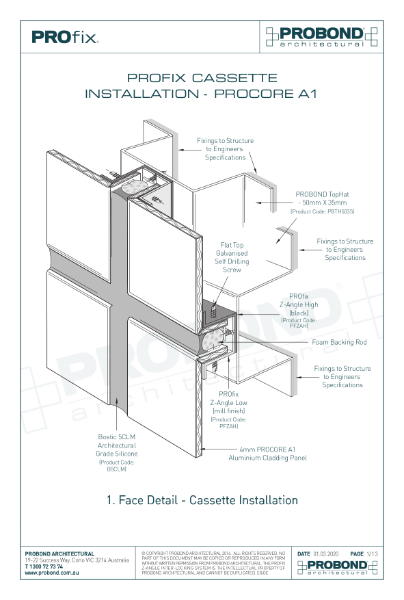

PROCORE A1 - Installation

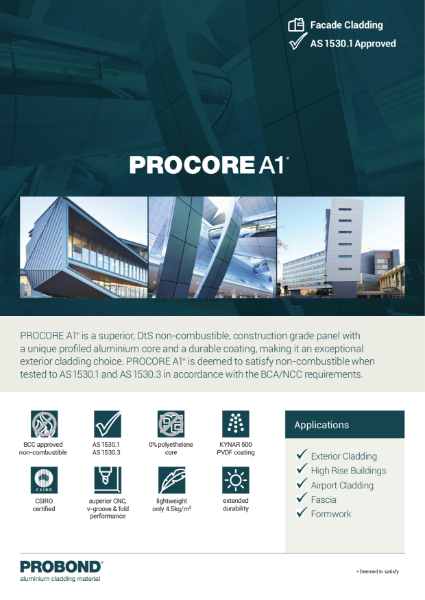

PROCORE A1 Overview

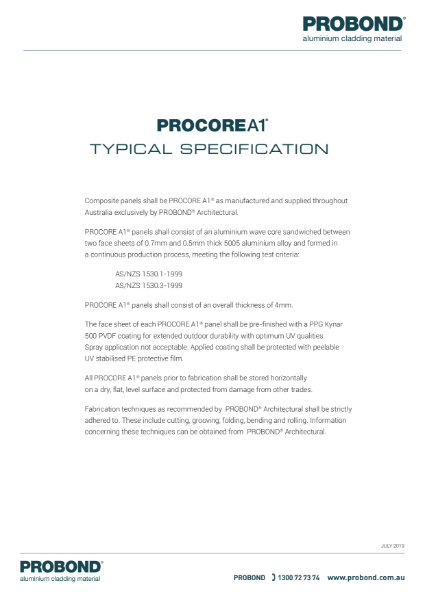

PROCORE A1 Typical Specification

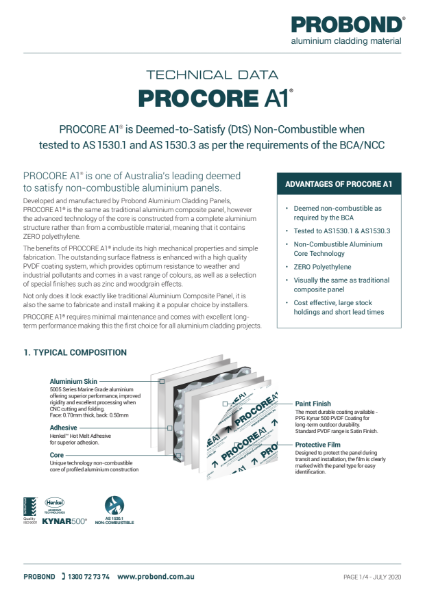

Procore A1 TDS
Non-Combustible Colour Range
Case studies

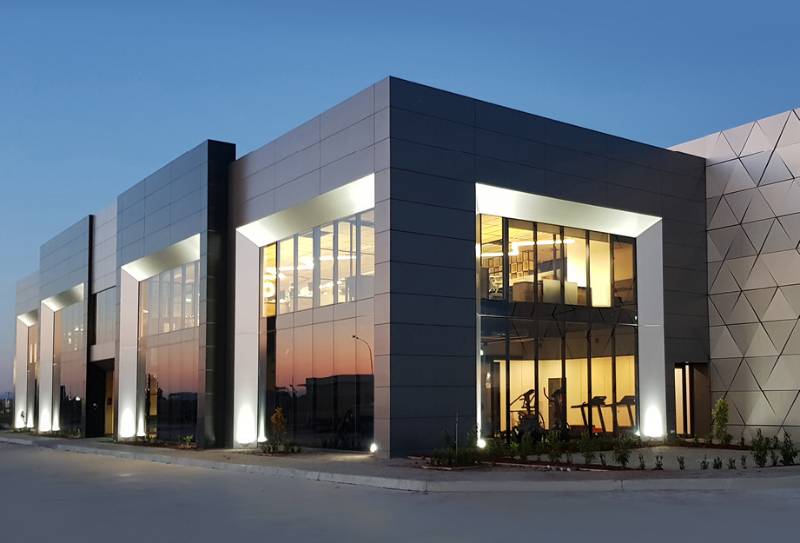

National Headquarters & Distribution Complex

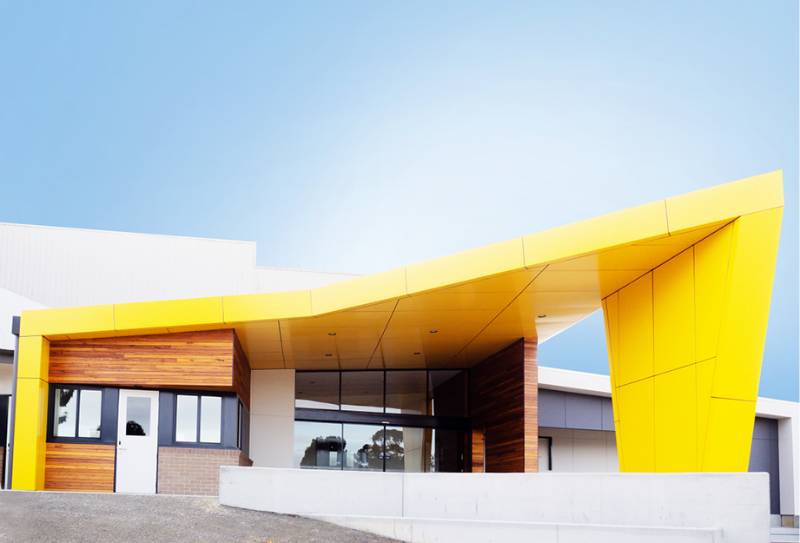

Technology Rooms
