Probond FacadeFR®

Verified by manufacturer over a year ago

Probond FacadeFR® Solid Colours

PROBOND Architectural Variant:

A superior construction grade aluminium composite panel.

Jump to:
+61 1300 72 73 74 Website

Application

This product is ideal for the following applications:


  • Long term external cladding application for Type C commercial constructions and domestic projects.
  • Pylon signs and signage.
  • Formworks and internal fit-outs.
  • Fascia.

Description

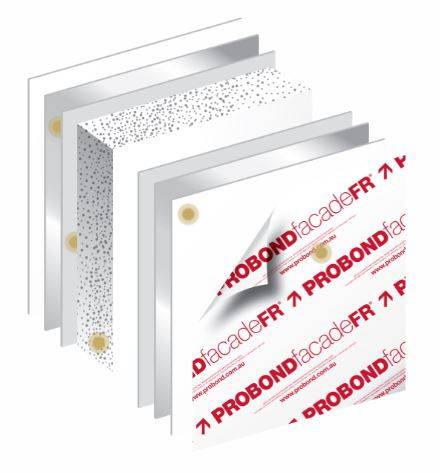

Probond FacadeFR® is a superior construction grade aluminium composite panel with a fire resistant mineral core and surface finish with a high-quality fluoropolymer (PVDF) resin-based coating, designed for long-term outdoor durability. It comes with significant features such as:


  • Group1 BCA Classification requirements for external cladding.
  • Fire-resistant mineral core.
  • Excellent long-term performance.
  • Superior routing performance.
  • Versatile, cost-effective and folds easily.
  • KYNAR 500 PVDF coating.
  • High formability and stability.
  • Excellent weather resistance and durability.
  • Individual design and easy processing.
  • Lightweight yet rigid construction.
  • Easy onsite fabrication and can be pre-fabricated to architectural specifications.
  • Available in large panel sizes and colours.

General information

Color

-

Manufacturer guidance

Wide range of colour options are available. Check with the manufacturer.

Uniclass

Pr_25_71_14_05 Aluminium composite material (ACM) panelsPrimary

NATSPEC National Classification System

0434 Cladding - Flat Sheets and Panels

0431 Cladding - Combined

SpeedSpec

07462 Cladding External Walls

SpecPack

07430 Sandwich Panels

Specification data - Aluminium composite material (ACM) panels

Fire performance

-

Fire hazard properties

-

Standard

To AS ISO 9705, AS/NZS 3837 and AS/NZS 1530.3

Group number

1.

Flammability index

0.

Spread of flame index

0.

Smoke developed index

2.

Finish as delivered

-

Coating

PPG Kynar 500 PVDF coating.

Guidance for specification option:

Contains a minimum of 70% Kynar 500® resin based coating, which meets the highest performance criteria of AAMA - 2605.

Dry film thickness

27 ±1 μm.

Guidance for specification option:

Paint thickness in microns.

Colour

Natural White PB6000.

Jet Black PB6999.

Golden Yellow PB6026.

Atomic Orange PB6135.

Candy Red PB6500.

Electric Lime PB6410.

Ultramarine Blue PB6478.

Denim Blue PB6497.

Pebble Grey PB6988.

Texture

Satin.

Gloss level

40%.

Guidance for specification option:

Custom gloss levels are available between 15 and 80% on all colors upon request and are subject to MOQ. Check with the manufacturer.

Core facing material

5005 Series marine grade aluminium.

Thickness

0.50 mm.

Adhesive

Henkel™ hot melt adhesive.

Core

White mineral filled fire-resistant core.

Panel size

2500 x 1575 mm.

3200 x 1575 mm.

4000 x 1575 mm.

Overall thickness

4 mm.

Acoustic performance

26 dB.

Guidance for specification option:

Sound insulation rating.

0.05.

Guidance for specification option:

Sound absorption rating.

Thermal resistance

0.0103 m²K/W.

Environmental performance

Non-hazardous and no adverse influence on the environment.

Sustainability data

Contains Red List materials

No

Recyclability

100% Recyclable.

Literature

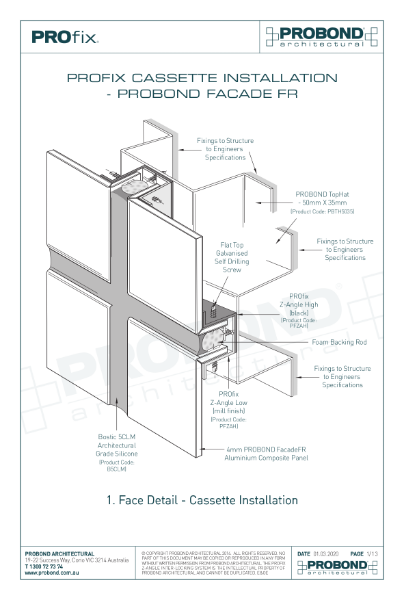

PROBOND Facade FR Installation

PROBOND Facade FR Installation

PROBOND Facade FR Overview

PROBOND Facade FR Overview

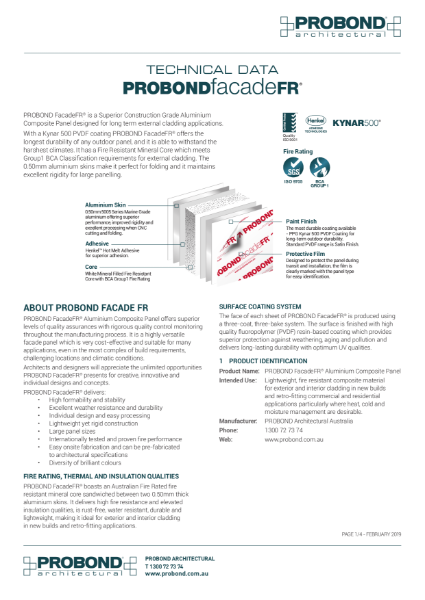

PROBOND Facade FR TDS

PROBOND Facade FR TDS

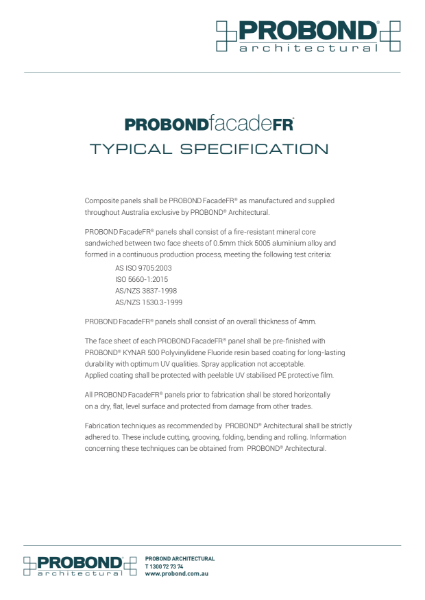

PROBOND Facade FR Typical Specification

PROBOND Facade FR Typical Specification

Case studies

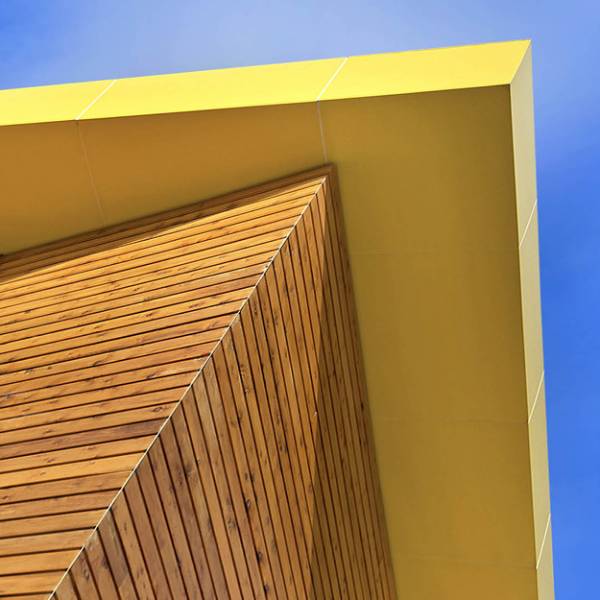

Fitness Centre

Fitness Centre

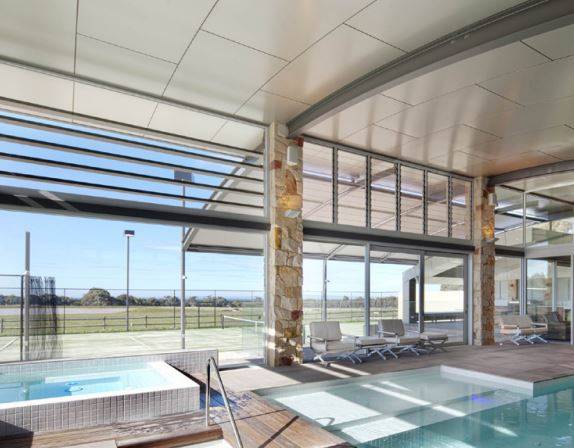

Pool Pavilion

Pool Pavilion
