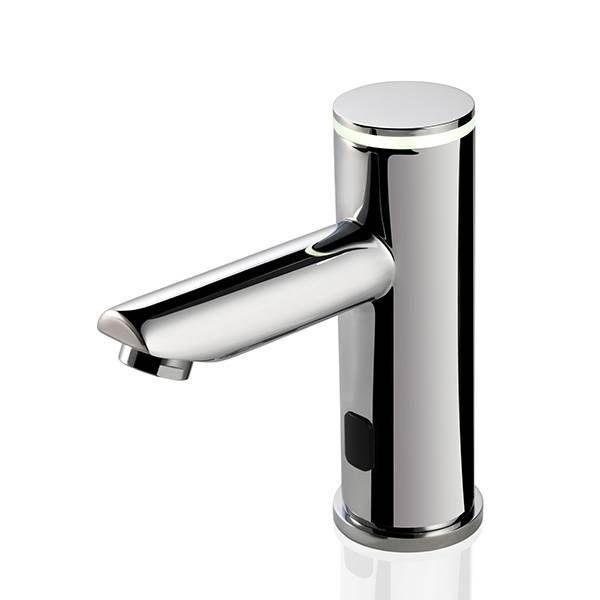

Autoflo Pillar - Glow Mains Power Sensor Tap

Jump to:
+61 3 9380 8244 Website

Application

Ideal for use in:


  • Recreation and shopping centres
  • Private commercial bathrooms

Description

Autoflo Pillar-Glow Mains Power Sensor Tap is suitable for a range of applications ranging from public commercial areas such as recreation and shopping centres, to private commercial bathrooms particularly in the entertainment industry, and any application where a striking bathroom feature is as important as hygiene and water savings. The robust construction is complemented with an array of features ensuring consistent performance. The ability to self-range to its environment, the hygienic self flush performed every 24 hours, the capability for multiple tap installations from one power source, coupled with its unique glow are just some of what sets the Autoflo Pillar-Glow Mains Power Sensor Tap apart.


Features:


  • Operating range self initialisation
  • Accessories available for multiple tap installations from one power source.
  • Illuminated light ring creates unique bathroom ambience
  • Auto Hygienic Self Flush every 24 hours
  • Dual stage water filters to avoid solenoid blockages
  • Optional remote control for adjustment from factory settings

General information

Finish

Chrome Plated.

Material

Brass.

Size

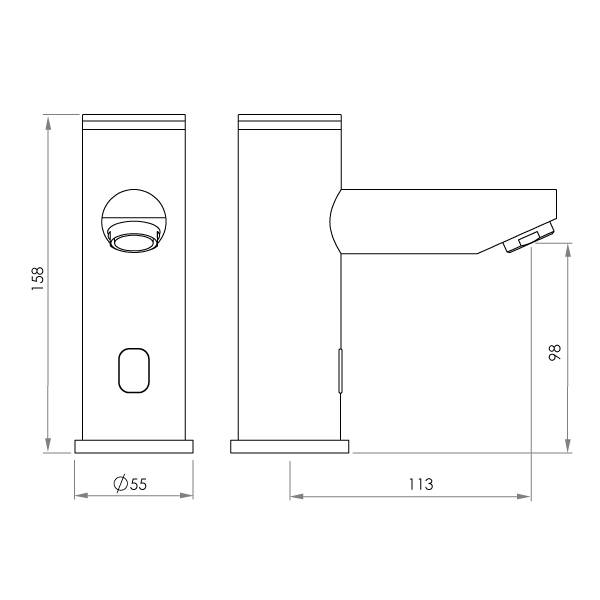

158 mm (H) x 55 mm (W) x 113 mm (D)

Warranty description

Five year

Uniclass

Pr_40_20_87_98 Washbasin tapsPrimary

NATSPEC National Classification System

0811 Sanitary Fixtures

0812 Tapware

SpecPack

15410 Plumbing Fixtures

SpeedSpec

15410 Plumbing Fixtures

Specification data - Washbasin taps

Water Efficiency Labelling and Standards Scheme (WELS)

-

Standard

AS/NZS 3718

Rating

5 star 6.5L/min

Form

Automatic action thermostatic mixer taps.

Materials

-

Body

Brass.

Finish and colour

Chrome-plated.

Flow rate (maximum)

-

Cold water flow rate (maximum)

6.5L/min

Hot water flow rate (maximum)

6.5L/min

Water supply temperature (maximum)

50°C.

Integral accessories

300-5102: Pillar Glow body with sensor

300 - 5102: Pillar mounting kit

300 - 0110: 6V Solenoid Valve

300 -0225: 9V Power Pack

600 - 0145: M10 to1/2 BSP flex 500mm (1)

600 - 0133: 1/2" BSP M/M nipple C/P (2)

300-5127: Pillar Glow Coupling Module

Power supply

Mains.

Operating time

Continuous 2 minutes max

Dimensions

158 mm (H) x 55 mm (W) x 113 mm (D)

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Third party certifications

QA Certificate

QA Certificate

Certificate of Conformity

Literature

Pillar - Glow Product Data Sheet

Pillar - Glow Product Data Sheet

Autoflo 5 Year Warranty

Autoflo 5 Year Warranty
