Paraseal LG
Verified by manufacturer over a year ago
Dual layer sheet waterproofing membrane.
Application
- Provide superior protection to below grade structures.
- Typically used for applications in elevator pits, retaining walls, below grade waterproofing, tunnels, and below footing slab.
Description

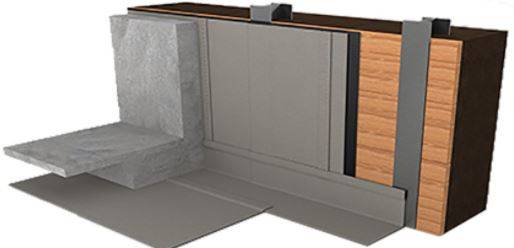

A high-performance multi-layer sheet membrane waterproofing system consisting of a self-sealing, expandable layer of bentonite laminated to an impermeable, high-density polyethylene (HDPE).
- Dual-layer waterproofing system provides redundancy and added security to the builder and owner that water will not enter.
- Can be installed 24 hours after the concrete formwork has been removed, allowing for a faster construction schedule.
- Robust and can handle a variety of site conditions.
- Bentonite can expand up to 8 times its original thickness to stop water that may make it past the HDPE layer, providing a second layer of failsafe protection.
- The robust HDPE layer provides significant (180kg/m²) of puncture resistance to ensure damage doesn’t occur to the waterproofing membrane by careless trades.
General information
Material | Bentonite laminated to high density polyethylene (HDPE). |
Uniclass | |
NATSPEC National Classification System | 0411 Waterproofing – External and Tanking |
SpeedSpec | 07130 Waterproofing and Tanking |
SpecPack | 07130 Waterproofing and Tanking |
Product range |
Specification data - Plastics sheets
Material | Bentonite laminated to high density polyethylene (HDPE). |
Form | Dual layer, high performance membrane. |
Physical properties | |
Dimensions | |
Thickness (minimum) | Between 4.25 to 5 mm.Guidance for specification option: Thickness varies depending on method of application. Manufacturer guidanceFor application and instruction based on substrate conditions, check with the manufacturer's instruction and technical datasheet. |
Colour | Grey (Bentonite). Black (HDPE). |
Curing time | Manufacturer guidanceDoes not need to cure. Can be installed 24 hours after the concrete formwork has been removed. Check with the manufacturer for detailed instructions, application and limitations. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Literature

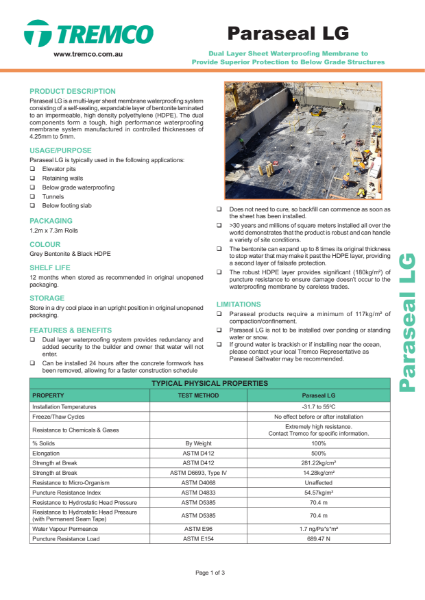

Paraseal LG TDS
Tremco Waterproofing Brochure
Case studies

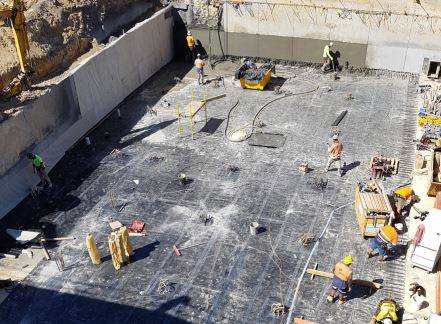

Manly Beach Below Grade Project
