Application

To reinforce and strengthen MAXSEAL FLEX in areas such as:

  • Cold joints where substrates meet, for example a brick or block wall on a concrete slab.
  • Cracked concrete.

Description

A woven fiberglass mesh designed for use with waterproofing coatings to reinforce and strengthen in areas subject to movement. Some of its features include:

  • It is an open weave mesh allowing adhesion between coats of waterproof product. It does not form a barrier between coats.
  • It remains strong and flexible.


General information

Color

White

Finish

Coarse

Material

Fiber-glass

Shape

Other

Length

50000 mm

Width

200 mm

Warranty description

Ten year

Uniclass

Pr_20_96_71_34 Glass fibre mesh reinforcementsPrimary

NATSPEC National Classification System

0411 Waterproofing – External and Tanking

SpeedSpec

07140 Wet Area Membranes

07130 Waterproofing and Tanking

SpecPack

07130 Waterproofing and Tanking

Specification data - Glass fibre mesh reinforcements

Material

Yarn.

Guidance for specification option:

Type E, low alkali fiberglass.

Weight

56 g/m².

Guidance for specification option:

Fabric weight.

Colour

White.

Pattern

Weave and weft.

Thickness

0.15 mm.

Roll size

200 x 50000 mm.

Guidance for specification option:

Construction:

• Warp: 40 x 2 ends per 100 mm (10 x 2 per inch)

• Weft: 40 per 100 mm (10 per inch)

Yarn:

• Warp: 34 x 1 tex

• Weft: 68 x 1 tex Glass

Sustainability data

Contains Red List materials

No

Country of product manufacture

Australia

Recyclability

none

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

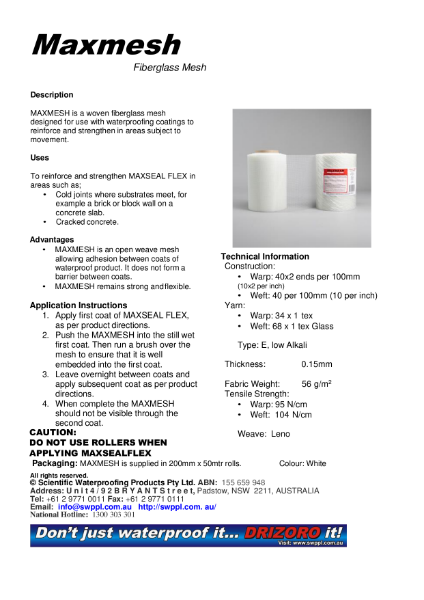

Literature

Maxmesh

Maxmesh
