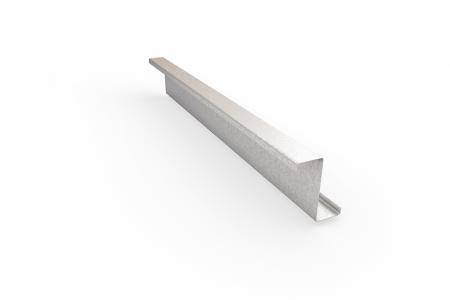

LYSAGHT® Zed and Cee Sections
Verified by manufacturer over a year ago
100 mm Depth
100 mm Depth
Lightweight alternative to timber purlins and girts.
Application
Suitable for use in commercial and domestic applications.
- LYSAGHT® Zed: Over single spans, lapped continuous and unlapped continuous spans in multi-bay buildings.
- LYSAGHT® Cee: In single spans and unlapped continuous spans in multi-bay buildings. Cee sections are ideal as eave purlins or where compact sections are required for detailing.
Description
The LYSAGHT® Zed and Cee Sections are accurately roll formed from high strength, zinc-coated steel to provide an efficient, lightweight, economical roofing and cladding support system for framed structures. Available in a range of gauges and depths.
General information
Finish | GALVASPAN® steel |
Material | Steel. Manufacturer guidanceGALVASPAN® steel. |
Warranty description | Manufacturer guidanceWarranty is available subject to application and project size. Application for a SUPAPURLIN® warranty must be lodged to the nearest Lysaght Service Centre. Additional warranty periods with additional coating treatments are available subject to enquiry. |
Uniclass | |
SpecPack | 05400 Cold-Formed Metal Framing 05100 Structural Steel |
SpeedSpec | 05400 Cold Formed Metal Framing 05100 Structural Steel |
NATSPEC National Classification System | 0341 Structural Steelwork |
Specification data - Cold-formed galvanized steel sections
Primary components | Purlins. |
Material | |
Standard | To AS/NZS 4600. |
Designation | G550 (1.0 mm BMT profiles).G500 (1.2 mm BMT profiles).G450 (1.5–3.0 mm BMT profiles).Manufacturer guidanceVaries depending on selected product profile. |
Thickness | 1.0–1.9 mm.Manufacturer guidanceVaries depending on selected product profile. |
Corrosion protection | |
Standard | To AS 1397. |
Class | Z350. |
Coating thickness | 35 µm. |
Depth | 102 mm. |
Channel width | 102 mm (Zed section). 51 mm (Cee Section). |
Length | Manufacturer guidanceLYSAGHT® purlins are available custom cut in any transportable lengths (limitations apply). For minimum lengths and for lengths over 12 000 mm, contact local manufacturer. |
Configuration | Z10010. Z10012. Z10015. Z10019. C10010. Manufacturer guidanceRefers to product profile. The prefix letters refer to purlin shape, i.e. Z is Zed shape and C is Cee shape. The letters are then followed by a three digit number indicating the section nominal depth in millimetres. This is then followed by a two digit number designating section thickness. For example, Z10010 refers to Zed of 102 mm depth and 1.0 mm thickness. |
Bolts | M12 LYSAGHT® purlin bolt, standard (Grade 4.6) or high strength (Grade 8.8). |
Bridging requirements - to suit span requirements | LYSAGHT HOOK-LOK® II Bridging System with Clamp (locator ends) or bolted bracket ends. |
Accessories | Angle connectors. Raking girt. Raking girt bracket. Cleats. Clamp plates. Manufacturer guidanceConsult with manufacturer for details. |
Fixing holes | Supplied with holes punched to the Australian Institute of Steel Construction (AISC) gauge lines, except in Victoria. |
Sustainability data
Country of product manufacture | Australia |
