LYSAGHT SUPAPURLIN®
Verified by manufacturer over a year ago
150 mm Depth
150 mm Depth
Steel purlins with enhanced performance. Available in WA, SA, NT, QLD and NSW.
Application
Suitable for use in commercial, industrial and rural buildings, as well as small and medium structures such as sheds and awnings. Other applications include:
- Racking frames.
- Wall framing such as stud and plate or track.
- Floor joists.
- Rafters and beams.
- Posts.
Available in WA, SA, NT, QLD and NSW.
Description

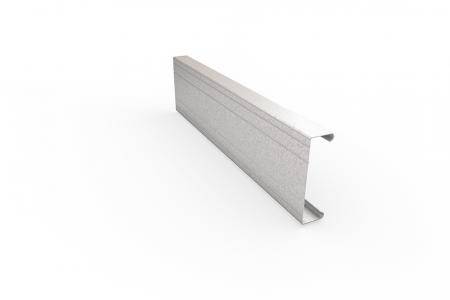

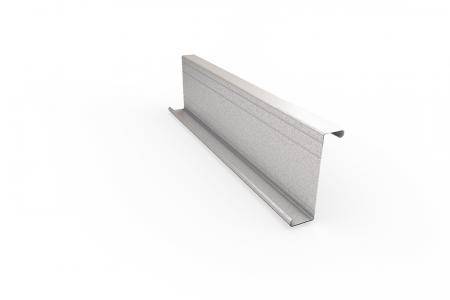

The LYSAGHT SUPAPURLIN® consists of SUPAZED® and SUPACEE® profiles which offer the benefits of the traditional Zed and Cee purlins but with a number of improvements and enhanced performance. Some of its features include:
- Lip stiffener for significant increased strength.
- Capability for increased purlin spacing, increased purlin spans and fewer rows of bridging.
- Unique, patented profile.
General information
Finish | GALVASPAN® steel |
Material | Steel. Manufacturer guidanceGALVASPAN® steel. |
Warranty description | Manufacturer guidanceWarranty is available subject to application and project size. Application for a SUPAPURLIN® warranty must be lodged to the nearest Lysaght Service Centre. Additional warranty periods with additional coating treatments are available subject to enquiry. |
Uniclass | |
SpecPack | 05400 Cold-Formed Metal Framing 05100 Structural Steel |
SpeedSpec | 05400 Cold Formed Metal Framing 05100 Structural Steel |
NATSPEC National Classification System | 0341 Structural Steelwork |
Specification data - Cold-formed galvanized steel sections
Primary components | Purlins. |
Material | |
Standard | To AS/NZS 4600. |
Designation | G550 (1.0 mm BMT profiles).G500 (1.2 mm BMT profiles).G450 (1.5–3.2 mm BMT profiles).Manufacturer guidanceVaries depending on selected product profile. |
Thickness | 1.0–2.4 mm.Manufacturer guidanceVaries depending on selected product profile. |
Corrosion protection | |
Standard | To AS 1397. |
Class | Z350. |
Coating thickness | 35 µm. |
Depth | 152 mm. |
Configuration | SZ15010. Guidance for specification option: Subject to enquiry. Contact manufacturer for details. Extended lead times may apply. SZ15012. SZ15015. SZ15019. SZ15024. Manufacturer guidanceRefers to product profile. The prefix letters refer to purlin shape, i.e. SZ is SUPERZED shape and SC is SUPERCEE shape. The letters are then followed by a three digit number indicating the section nominal depth in millimetres. This is then followed by a two digit number designating section thickness. For example, SZ15010 refers to SUPERZED of 152 mm depth and 1.0 mm thickness. |
Bolts | M12 Grade 4.6 or 8.8. |
Bridging requirements - to suit span requirements | LYSAGHT HOOK-LOK® II Bridging System with Clamp (locator ends) or bolted bracket ends. |
Accessories | General purpose brackets. Angle connectors. Clamp plates. Raking girt bracket. Flange fixing washers. Manufacturer guidanceConsult with manufacturer for details. |
Sustainability data
Country of product manufacture | Australia |
