Security speed gate with integrated AI facial recognition
Suggested Segments:

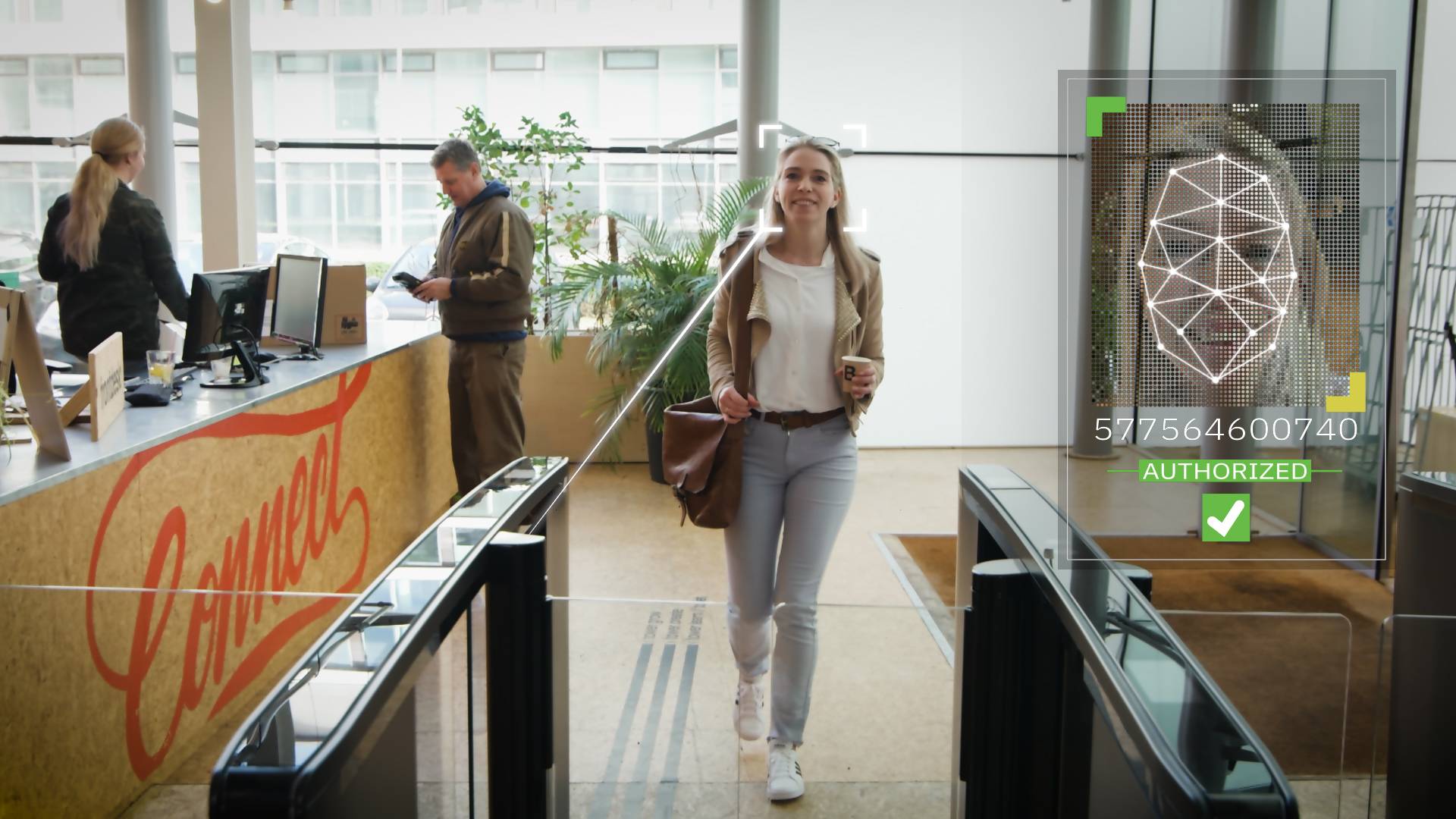

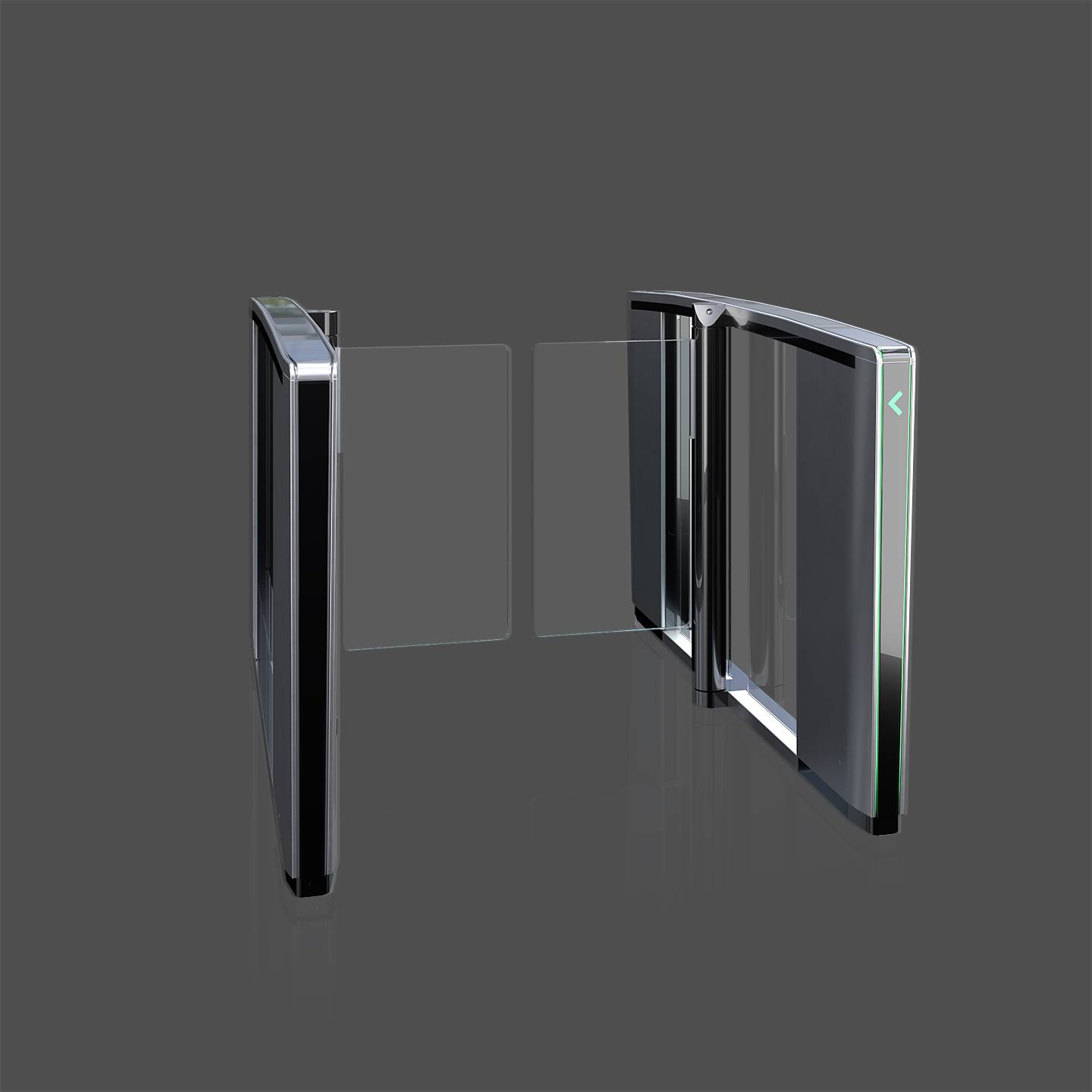

The Lifeline Speedlane Vision is the most intuitive speed gate, powered by state-of-the-art AI computer vision technology, the solution combines the best of sleek, aesthetic security and a secure, accurate, and seamless access control and management solution. The smooth, premium glass casing houses intuitive-coloured LED lights that effortlessly glide along the cabinet top, guiding users from entry through authorisation to the secured area.
Design with a facial recognition camera by Oosto fully integrated into the turnstile, offering the most premium, aesthetic solution, with facial recognition technology, so subtly integrated - nobody would even know it was there. The Lifeline Speedlane Vision can be installed as a single or multi-lane set up and offers:
ColorOther colours available by request. | - |
Finish | Powder-coated |
Material | Stainless steel Steel |
Length | 1776 mm |
Width | 978 mm Overall standard lane width. 1276 mm Overall lane width - wide option. |
Height | 1035 mm |
WarrantyDescription12 month standard product warranty. Extended warranty available on request. | One year |
Uniclass | |
NATSPEC National Classification System | 0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors |
SpeedSpec | 08200 Doors and Door Frames |
Leaves | - |
Type | Laminated. |
Surrounds | - |
Type | Sheet metal. |
Material | Stainless steel to AS/NZS 4673. |
Operation | Electrical. |
Dimensions | - |
Overall width | Overall Lane Width: 977 mm (for a single lane) |
Overall height | 1035 mm |
Passage widthLevel up option: 915 mm | 615 mm |
Control units | - |
Device acceptance | Facial recognition.Card reader. |
Operational voltage | 80 W |
Finish | - |
ColourLevel up options:
| Stainless steel. |
Capacity | 25 - 30 People per minute. |
Cabinet length | 1776 mm |
Cabinet width | 106 mm |
Passage width | 615 mm Standard passage width. 915 mm Wide option. (Disabled access) |
Height | 1035 mm Cabinet heigth 940 mm Barrier height |
Security | Tailgating detection. Passage confirmation signal. Programmable alarm buzzer. Clim-over detection system. |
Power supply | 110-240 VAC, 50 / 60 Hz |
Power consumption | 60 W Stationary. 40 W Sleep mode. |
Operating temperature | -15°C to +50°C |
Accessible design | Yes. |
Safety | Fail safe. Fire alarm connection. Low object detection. |
Integral accessories | Lifeline Boost Mount. Facial Recognition Integration. Top Mount (universal mounting plate). Universal Elevator Destination Display (maximum 8 elevators). BoonTouch External Control Panel (up to 6 lanes). |
Integral sensors | Approach sensor. Feedback signals. Lifeline LED guidance. |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
