Lexan Thermoclear

Verified by manufacturer over a year ago

Ampelite Australia

Architectural polycarbonate glazing system.

Jump to:
+ 61 3 8710 9110 Website

Application

Typical applications:


  • Covered Walkways
  • Pergolas
  • Shopping Centres
  • Sports Complexes
  • Swimming Pool Enclosures
  • Industrial Glazing
  • Greenhouses
  • Screening/Partitioning

Description

A high quality low maintenance glazing material that is built to last. Lexan polycarbonate resin delivers high impact strength, an excellent balance of low weight and high stiffness and naturally very clear transparency. Some of its features include:


  • Certified under Australian Standards
  • Wind Resistance
  • Energy Efficient
  • Impact strength
  • Environmental
  • Light Weight
  • Less Structure
  • Minimum waste

General information

Color

Clear

Bronze

Grey

Other

White

Manufacturer guidance

Available in clear, opal, grey, bronze, metallic grey.

Finish

Other

Material

Polycarbonate

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_25_71_63_65 Polycarbonate profiled sheetsPrimary

NATSPEC National Classification System

0429 Roofing - Glazed

0421 Roofing - Combined

SpecPack

08620 Skylights

SpeedSpec

08620 Skylights

07610 Roofing and Roof Plumbing

Specification data - Polycarbonate profiled sheets

Standard

To AS 4256.

Guidance for specification option:

“The translucent sheeting shall be ‘Ampelite Lexan* Thermoclear* multiwall sheet as distributed by Ampelite Australia Pty Ltd. to comply with AS/4256 parts 1 & 5: 2006.

Fire hazard properties

-

Standard

To AS/NZS 1530.3, AS/NZS 3837 and AS3959 .

Guidance for specification option:

Complies with AS/NZS 1530.3: 2006 for simultaneous determination of ignitability, flame propagation, heat release and smoke release; AS/NZS 3837: 1998 for heat and smoke release rates for material and products using an oxygen consumption calorimeter; AS3959 Construction of buildings in bushfire-prone areas.

Length

2 m.

2.5 m.

3 m.

3.5 m.

4 m.

4.5 m.

5 m

5.5 m.

6 m.

7 m.

Bespoke.

Guidance for specification option:

Other sizes may be available, consult manufacturer for details.

Overall width

700 mm.

1050 mm.

Guidance for specification option:

Metallic grey only.

Thickness

10 mm.

16 mm.

Colour

Bronze.

Guidance for specification option:

10 mm: 35% light transmission. 55% heat transmission.

Clear.

Guidance for specification option:

10 mm: 81% light transmission. 80% heat transmission.

16 mm: 74% light transmission. 78% heat transmission.

Grey.

Guidance for specification option:

10 mm: 20% light transmission. 50% heat transmission.

Metallic Grey.

Guidance for specification option:

10 mm: 16% light transmission. 29% heat transmission.

Opal.

Guidance for specification option:

10 mm: 64% light transmission. 68% heat transmission.

16 mm: 63% light transmission. 67% heat transmission.

Thermal performance

-

Light transmission

81%.

Guidance for specification option:

Clear

64%.

Guidance for specification option:

Opal

35%.

Guidance for specification option:

Bronze

20%.

Guidance for specification option:

Grey

16%.

Guidance for specification option:

Metallic Grey

U value

3.0 W/m2k.

Guidance for specification option:

10 mm Multiwall.

5.7 W/m2k.

Guidance for specification option:

10 mm Standard clear glass.

Impact resistance

250.

Guidance for specification option:

10 mm Multiwall.

1.

Guidance for specification option:

10 mm Standard clear glass.

Product Reference

Lexan™ Thermoclear Twinwall.

Lexan™ Thermoclear Multiwall.

Accessories

Aluminium h-bar.

Guidance for specification option:

Standard Colours:

Natural Anodised, White, Primrose, Black

Standard Lengths:

Natural Anodised - 4m, 5m, 6m, 7m

White, Primrose, Black - 7m

H-Bar finishing gasket.

Guidance for specification option:

Colour: Black

Standard Gauge: 10mm

Standard Length: 14.0m rolls, 7.0m rolls

Aluminium end cap.

Guidance for specification option:

Standard Colours:

Natural Anodised, White, Primrose, Black

Standard Lengths: 6.5m

End cap gasket.

Guidance for specification option:

Colour: Black

Standard Gauge: 10mm

Standard Length: 14.0m rolls, 8.0m rolls

H-bar gasket.

Guidance for specification option:

Colour: Black

Standard Gauge: 10mm

Standard Length: 14.0m rolls, 8.0m rolls

Show more

Sheet weight

1700 g/m².

Guidance for specification option:

10 mm

2700 g/m².

Guidance for specification option:

16 mm

Sustainability data

Contains Red List materials

No

Country of material origin

Saudi Arabia

Country of product manufacture

China

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Literature

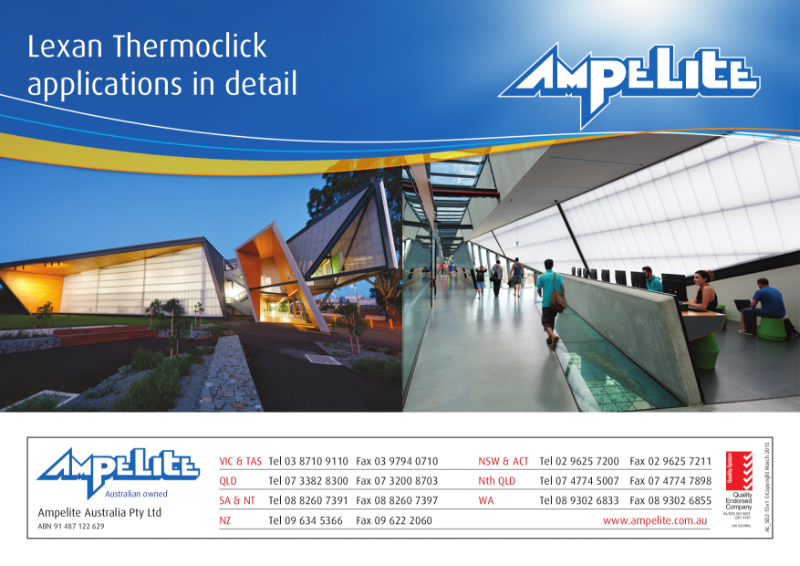

Lexan Thermoclick applications in detail

Lexan Thermoclick applications in detail

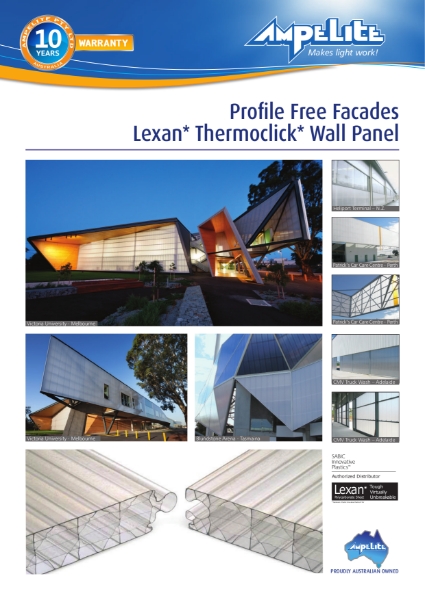

Lexan Thermoclick wall panel, profile free facades
