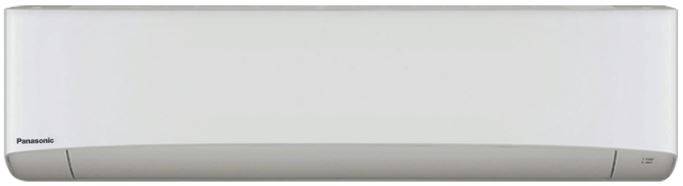

Large Wall Mounted Split Air Conditioning 9.5 kW - Air purification.
Verified by manufacturer over a year ago
R32 Deluxe Model - 9.5 kW Indoor Unit S - 100PK3R
R32 Deluxe Model - 9.5 kW Indoor Unit S - 100PK3R
Large Capacity Cooling or Heating Wall Mounted with Air Purification, Voice/Wi-Fi Control.
Application
A ducted system that delivers air through ducting pipes into the rooms via vents on floors walls and ceilings.
Ideal for small office and other commercial applications.
Description
A high-performance large capacity wall mounted split, air conditioning system consisting of compact outdoor unit and lightweight indoor unit having stylish matte colour and low noise level with washable front panel. Design with 24-hour nanoe™ X air purification. Some of its significant features include:
- Flexible and easy to install.
- Self-diagnosing function.
- Auto fan operation.
- Dry mode.
- Intelligent auto swing.
- Automatic restart function.
- Auto swing/flap function.
- DC Motor.
- 24 hours air purification.
- Quiet operation.
- Close discharge port.
- Piping outlet in six directions.
- Can be controlled with an intuitive voice control device.
- Smart way of controlling air by Cloud base application.

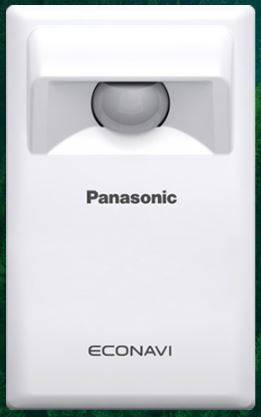

- Panasonic Premium Inverter technology and ECONAVI* technology provides extremely energy efficient cooling or heating while giving energy saving performance.
Design with 24-hour nanoe™ X air purification that can run independently from cooling or heating mode.
Product benefit:
- Active deodorization.
- Inhibition of hazardous substances.
- Inhibition of mould, bacteria and viruses.
- Inhibition of pollen and of major allergens.
- Moisturizes and hydrates.
- Can be controlled with a wired remote controller that offers integration and connects directly to a variety of Cloud base apps.
General information
Color | White |
Finish | Smooth |
Size | Manufacturer guidance9.0kW- 9.5kW |
Length | 236 mm Guidance for specification option: Indoor: 236 mm. 340 mm Guidance for specification option: Outdoor: 340 mm |
Width | 1120 mm Guidance for specification option: Indoor: 1120 mm 940 mm Guidance for specification option: Outdoor: 940 mm |
Height | 302 mm Guidance for specification option: Indoor: 302 mm. 1416 mm Guidance for specification option: Outdoor: 1416 mm. |
Warranty description | Five year |
Uniclass | |
NATSPEC National Classification System | 0722 Room Air Conditioners 0721 Packaged Air Conditioning 0702 Mechanical Design and Install |
SpecPack | 15782 Air Conditioning - Packaged Units |
SpeedSpec | 15738 Domestic Air-Conditioning |
Specification data - Room air conditioning systems
System performance | 9.0 - 9.5 kW. |
Air ductwork and accessories | |
Ductwork | Flexible ductworkManufacturer guidanceMaximum duct length is.. |
Description | Panasonic ducted air conditioning system concealed indoor unit design with powerful airflow. |
Dimensions | 302 H X 1120 W X 236 D mm. |
TotalCoolingCapacity | 9.0 - 9.5 kW. |
HeatingCapacity | 9.0 - 9.5 kW. |
Power input | 240 V (1 Phase). |
Power supply | AC. |
Length | 5 - 85 m. |
RefrigerantClass | R 32. |
PipeConnection | 9.52 - 15.88 mm. Manufacturer guidanceLiquid pipe connections size. |
Operating temperature range | -15°C - 46°C. |
Controller | Remote included. |
Size (h x w x d) | 86 x 86 x 25 mm. |
PowerSource | 240 V (1 Phase). |
Sustainability data
Country of material origin | Malaysia |
Country of product manufacture | Malaysia |
Literature

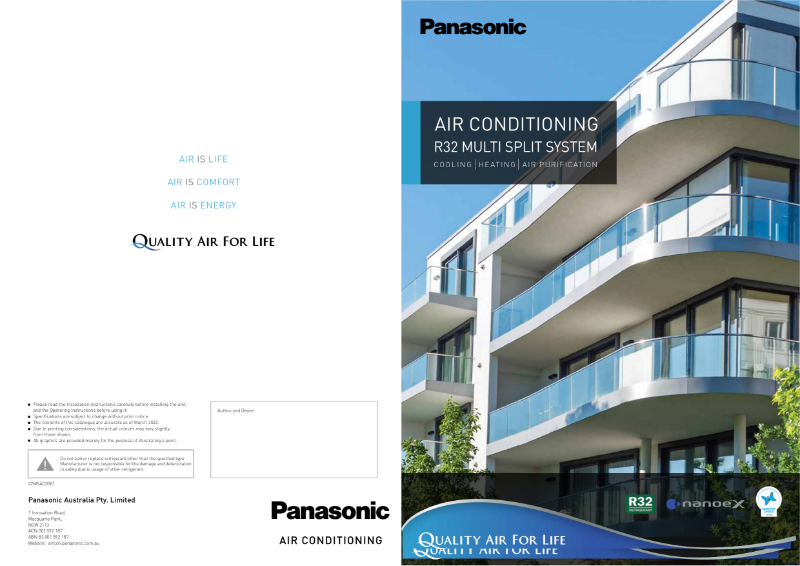

Air Conditioning R32 Multisplit System
Brochure Panasonic Comfort Cloud app
Multisplit Capacity Table
Panasonic CAC WiFi Solutions

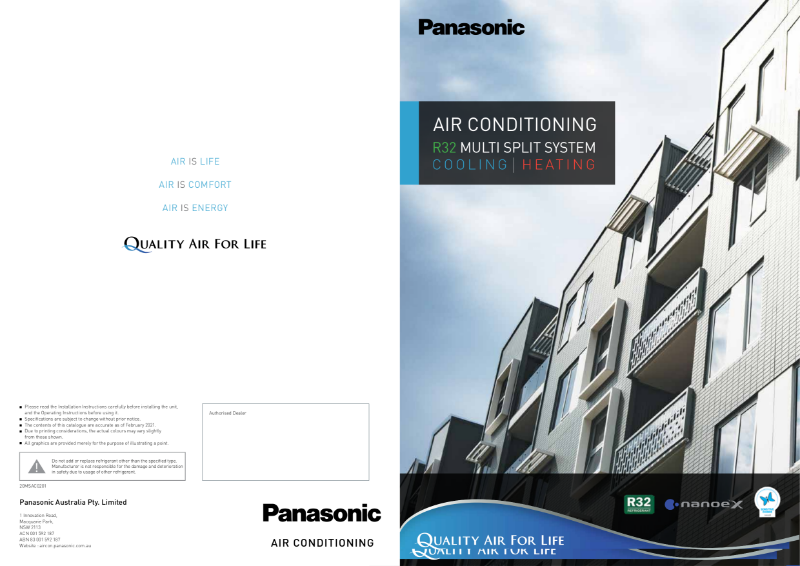

R32 Multisplit Air Conditioning System
