ISO² Panel - Insulation.

Name: ISO² Panel - Insulation.
Brand: Pirmax Pty Ltd
SKU: pY8c3h2THE8WMhHXi7Wce4

Verified by manufacturer over a year ago

Pirmax Pty Ltd

Product certifications:

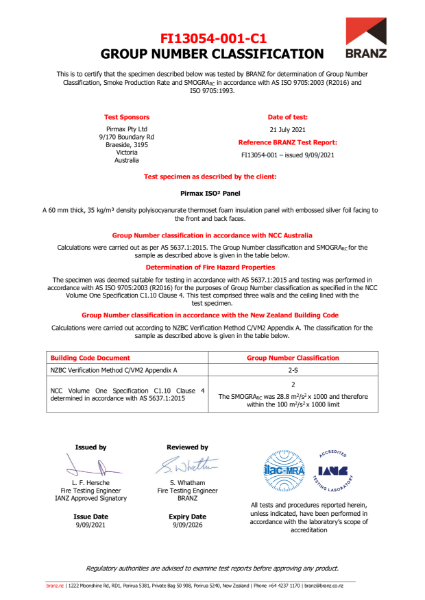

BRANZ Appraised
Certificate type

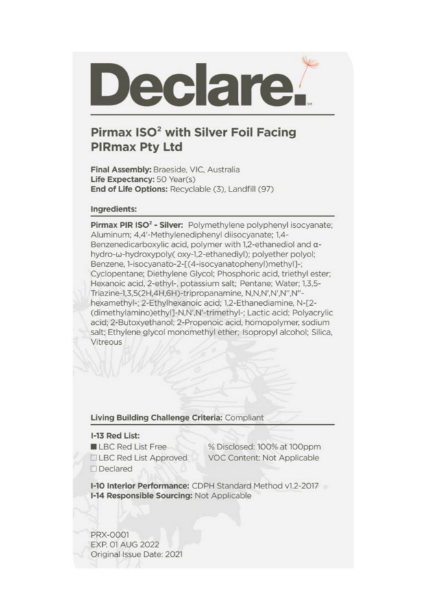

Declare
Certificate type

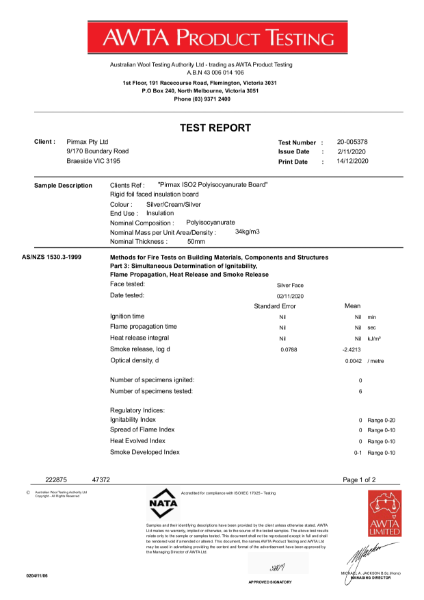

AWTA Test results
Certificate type
AWTA Test results
Certificate type
BRANZ Appraised
Certificate type
AWTA Test results
Certificate type
AWTA Test results
Certificate type

Group 2 rigid thermal insulation panel.

Jump to:

+61 03 9587 0955 Website

Application

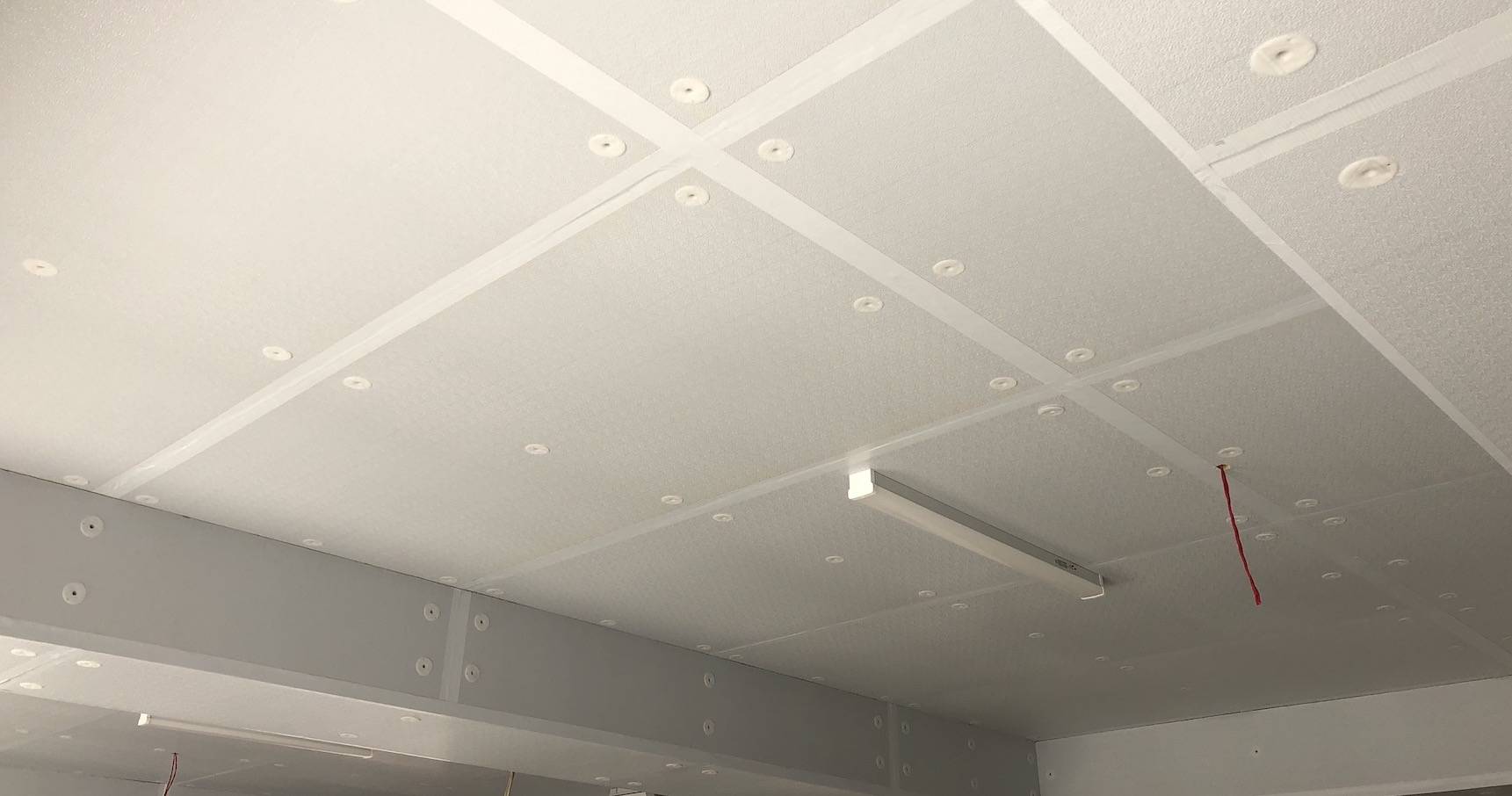

Designed to be used in exposed wall or ceiling/soffit applications typically in commercial or multi-residential use for thermal insulation purposes only. It can also be used in residential applications.

Description

A panel with silver foil facing, is an Australian made modified Polyisocyanurate (PIR) rigid thermal panel that can be used in many applications. A light weight closed cell PIR consisting of a foam inner core, thermoset between two layers of embossed aluminium foil facings. Designed to achieve excellent thermal performance where minimal cavity is available. Features include:

Red list free.
Ingredients are 100% disclosed to 100 ppm.
They have been shown to meet the Materials Petal requirements of the Living building Challenge and emissions testing criteria for Health + Happiness Petal.
Custom sizes are available with MOQS.

General information

Color	Silver
Finish	- Manufacturer guidance Anti-corrosive finish. Embossed foil.
Material	Polyisocyanurate (PIR)
Shape	Rectangle
Length	2400 mm
Width	1200 mm
Warranty description	15 year Guidance for specification option: System warranty.

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
NATSPEC National Classification System	0471 Thermal Insulation and Pliable Membranes
SpeedSpec	07200 Thermal and Acoustic Insulation
SpecPack	07200 Thermal and Acoustic Insulation

Specification data - Polyisocyanurate (PIR) foam boards

Standard	To AS/NZS 4859.1:2018, ASTM E 408-71, AS/NZS 4200.1:2017, AS 5637.1:2015 and AS ISO 9705
Fire hazard properties	-
Standard	To AS 5637.1. and AS/NZS 1530.3:1993. Guidance for specification option: Group 2 Classification
Flammability index	0.
Spread of flame index	0.
Smoke-developed index	0-1.
Thickness (nominal)	25 mm. 30 mm. 40 mm. 50 mm. 60 mm. 70 mm. 75 mm. 80 mm. 90 mm. 100 mm.

Classification	Group 2. Guidance for specification option: Classification in accordance with AS AS ISO 9705:2003 (R2016).
R-Value	R 1.05 m²K/W. Guidance for specification option: for 25 mm thickness. R 1.30 m²K/W. Guidance for specification option: for 30 mm thickness. R 1.90 m²K/W. Guidance for specification option: for 40 mm thickness. R 2.10 m²K/W. Guidance for specification option: for 45 mm thickness. R 2.35 m²K/W. Guidance for specification option: for 50 mm thickness. R 2.85 m²K/W. Guidance for specification option: for 60 mm thickness. R 3.30 m²K/W. Guidance for specification option: for 70 mm thickness. R 3.55 m²K/W. Guidance for specification option: for 75 mm thickness. R 4.00 m²K/W. Guidance for specification option: for 80 mm thickness. R 4.50 m²K/W. Guidance for specification option: for 90 mm thickness. R 5.00 m²K/W. Guidance for specification option: for 100 mm thickness. Show more
Length	2400 mm. Manufacturer guidance Nominal.
Width	1200 mm. Manufacturer guidance Nominal.
Certification	Global GreenTag GreenRate™ Level A
