Harlequin WoodSpring - Engineered Hardwood Top

Verified by manufacturer over a year ago

Harlequin (Australia)

A permanently installed sprung floor system

Jump to:
+61 2 9620 7770 Website

Application

Performing arts, studios, dance halls and rehearsal studios.

Description

A modern update of the traditional ‘basket weave’ construction that originated in the 19th Century but with 21st Century advancements. Harlequin WoodSpring is comprised of a layer of select Class 3 Exterior (EN 314) plywood, a triple-layer of custom machined southern yellow pine laid at right angles, with shock absorption and energy return enhanced by dual density elastomer blocks attached at predetermined intervals to the underside.


Harlequin WoodSpring is installed by our own highly-skilled technical team and all work is fully guaranteed. Different surface options include:

  • Solid hardwood - in beech, oak or maple
  • Engineered board with a hardwood wear layer - in beech, oak or maple.


If solid hardwood or engineered board is chosen, the skirting will be ‘optional’.

General information

Finish

Lacquered

Material

Wood

Warranty description

5 year.

Uniclass

Ss_30_20_95_95 Wood floating floor systemsPrimary

NATSPEC National Classification System

0654 Multilayered Board Flooring

SpeedSpec

09646 Floating Flooring

SpecPack

09620 Sports Flooring

09646 Floating Flooring

Specification data - Wood floating floor systems

Underlay

Dual density shock dampening elastomer blocks, triple layer of custom machined southern yellow pine and select WBP plywood.

Flooring

-

Board type

2-ply engineered board with a hardwood wear layer.

Jointing

Marine adhesive

Perimeter flanking seal

Closed cell polyethylene foam, Wood Skirting or Scotia.

Trims and skirtings

Skirting: Wooden scotia.

FloorCoveringThickness

Minimum floor thickness (before inclusion of chosen finish) 91mm.

Weight

Minimum floor weight (before inclusion of chosen finish) 24kg/m.²

Load

Maximum point load 924kg.

Design load

Rolling load >1500N.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Literature

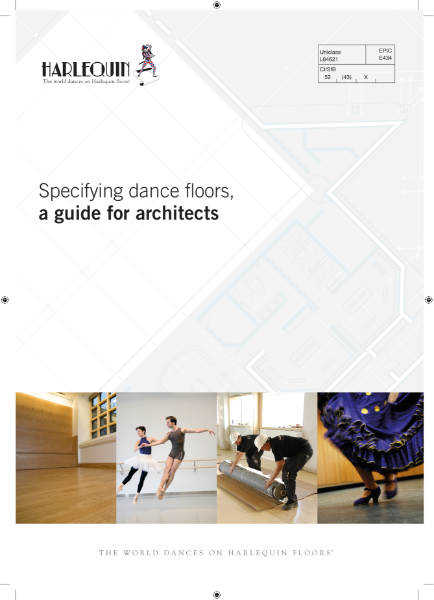

Harlequin - Specifying dance floors, a guide for architects

Harlequin - Specifying dance floors, a guide for architects

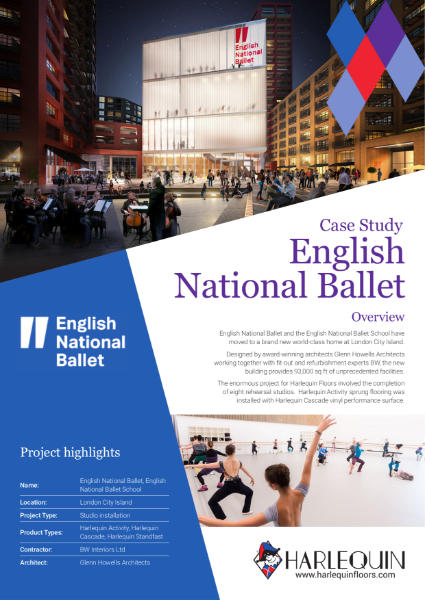

Case Study - English National Ballet
