Grandeur® Non-Cyclonic (COLORBOND® Steel)

Verified by manufacturer over a year ago

COLORBOND® Steel

Fielders Variant:

Steel roofing and walling profile with curving capacity.

Jump to:
+61 8 8292 3611 Website

Application

Suitable for roofing and walling applications in stylish and elegant designs.


AUSTRALIAN STANDARDS



Published load capacity data is derived from testing in accordance with:

  •       AS 4040.0:1992.
  •       AS 4040.1:1992.
  •       AS 4040.2:1992.
  •       AS 4040.3:2018.



Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

  •       AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles.
  •       AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions.
  •       AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions.
  •       AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.



Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.



Fielders steel products comply with:

  •       AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
  •       AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
  •       AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

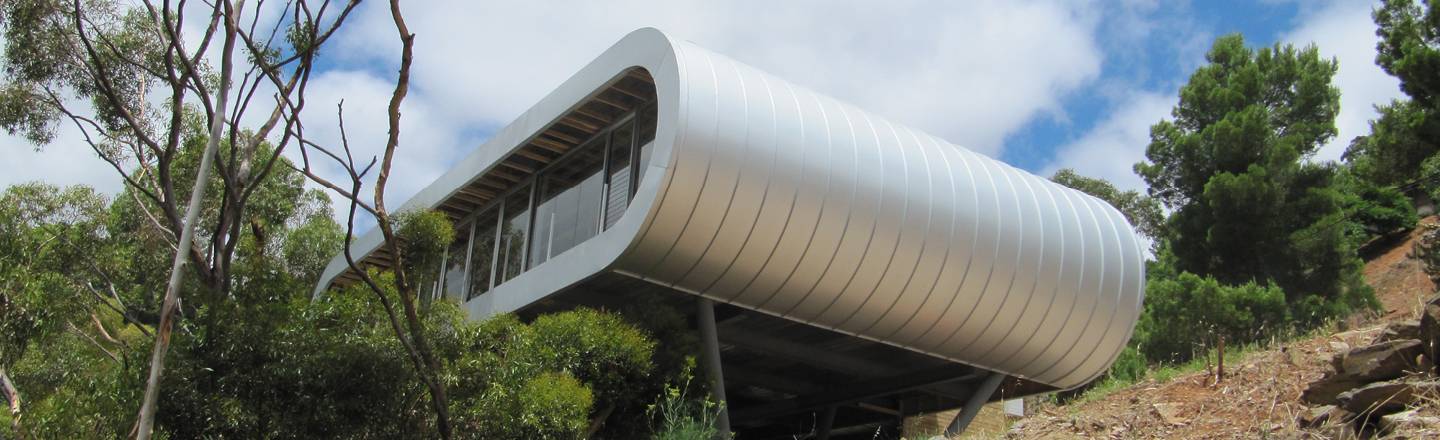

Grandeur® is a steel roofing and walling profile with curving capacity. Some of its features include:

  • Clean lines and classic look.
  • Can be smooth curved to a radius of 1.5 m.
  • Available in a wide range of colours and finishes.
  • Offered in varying supporting substrates.

General information

Material

Steel.

Shape

Rectangle

Warranty description

-

Manufacturer guidance

Covered by BlueScope material warranties, subject to project assessment and terms and conditions.

Uniclass

Pr_25_71_51_15 Carbon steel sheetsPrimary

SpeedSpec

07610 Roofing and Roof Plumbing

07462 Cladding External Walls

NATSPEC National Classification System

0436 Cladding – Profiled and Seamed Sheet Metal

0423 Roofing – Profiled Sheet Metal

SpecPack

07600 Metal Roofing, Siding and Roof Plumbing

Specification data - Carbon steel sheets

Standards

To AS 1397, AS/NZS 1365 and AS/NZS 2728.

Guidance for specification option:

Installation of the cladding should be in accordance with AS 1562.1 and HB 39.

Structural grade

G300.

Coating

-

Class

AM100.

Size

-

Length

-

Manufacturer guidance

Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply.


To address thermal expansion and contraction, recommended maximum sheet length is 24 m.


Provide manufacturing tolerance of ±7 mm in length.

Width

325 mm.

525 mm.

Guidance for specification option:

Recommended for walling applications only.

Manufacturer guidance

Refers to profile width and coverage. Provide manufacturing tolerance of ±4 mm.

Thickness

0.55 mm.

Guidance for specification option:

Total Coated Thickness of 0.60 mm.

0.75 mm.

Guidance for specification option:

Total Coated Thickness of 0.80 mm.

Manufacturer guidance

Refers to Base Metal Thickness or BMT.

Indicated Total Coated Thickness (TCT) is based on standard COLORBOND®, single-sided material.

Finish

-

Applied

Painted.

Colour

Basalt.

Classic Cream.

Cottage Green.

Cove.

Deep Ocean.

Show more

Material/ Finish

COLORBOND® steel.

Thermal expansion

2.9 mm average per 5.0 m.

Manufacturer guidance

Computed at 50° C change.

Frame or support

Plywood.

Guidance for specification option:

Options for plywood are:

  • 15 mm F11 Structural CD grade, to be supported at 450 mm centres for roofing or at 600 mm centres for walling; or,
  • 19 mm F11 Structural CD grade to be supported at 600 mm centres maximum.


Affix wirh 8g-15 x 25 mm Type 17 countersunk head metal screws. Two per fixed clip and three per sliding clip.

Steel Batten.

Guidance for specification option:

Steel battens should be 40 mm x 0.55 mm BMT G550 minimum, with maximum spans of 1200 mm.


Affix with M4.8-16 x 16 mm smooth top flat head metal screws. Two per fixed clip.

Manufacturer guidance

Refers to recommended supports and fasteners if product is to be installed without insulation.

Insulation

-

Manufacturer guidance

When insulation thickness up to 50 mm are installed, screws may need to be increased in number depending on insulation thickness and density.


When insulation is required, Fielders® recommends the use of a thermal spacer.

Installation

-

Manufacturer guidance

To be installed with concealed stainless steel clips.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% Recyclable.
