Grab Rail – Straight
Verified by manufacturer over a year ago
Satin Stainless Steel
Satin Stainless Steel
Straight, toilet grab rail.
Application
Suitable for most building surfaces.
Description
Grab Rail – Straight is a straight grab rail designed for the safety, security and convenience of the physically disabled. It is manufactured with 304 stainless steel and is available in satin or polished finish.
General information
Material | Stainless steel. |
Length | Bespoke |
Warranty description | One year. Guidance for specification option: From date of purchase. Manufacturer guidanceSubject to product being installed and maintained in accordance with the Installation and Operating instructions (fixings supplied by others). |
Uniclass | |
SpeedSpec | 05580 Architectural Metalwork and Whitegoods |
NATSPEC National Classification System | 0811 Sanitary Fixtures 0572 Miscellaneous Furniture |
SpecPack | 05500 Metalwork |
Specification data - Support rails
Form | Fixed. |
Diameter | 32 mm. |
Materials | |
Body | Stainless steel. |
Finish | Satin. |
Dimensions | 300 mm. 400 mm. 450 mm. 500 mm. 600 mm. Manufacturer guidanceRefers to product length. |
HangingHeight | 800 mm (above finished floor). Manufacturer guidanceIn compliance with AS 1428.1. |
Accessible design | DDA-compliant. Manufacturer guidanceMust be installed in accordance with AS 1428. |
Model | JDM-GSN-3-20. |
Literature

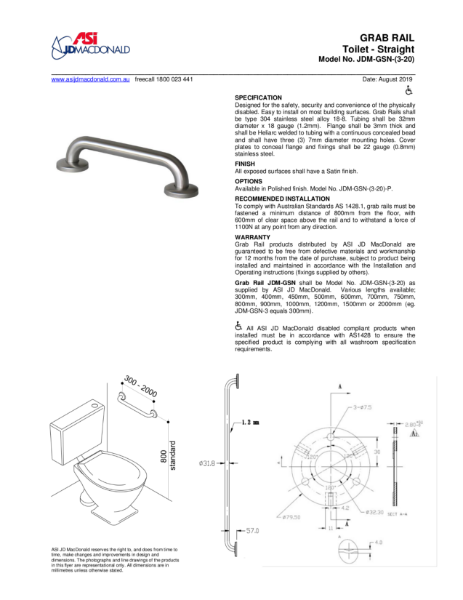

Grab Rail – Straight Specification Sheet

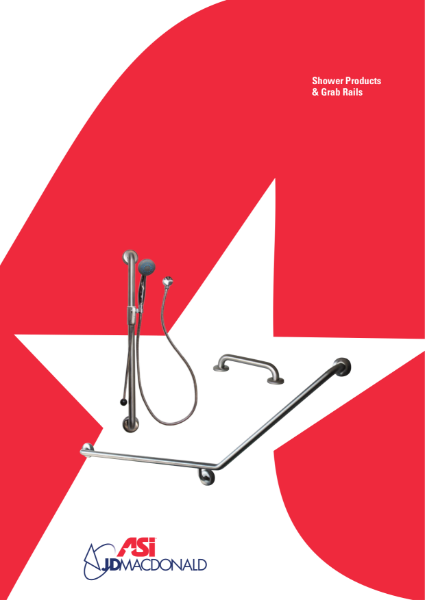

Shower Products and Grab Rails
ASI JD MacDonald Product Care and Maintenance
