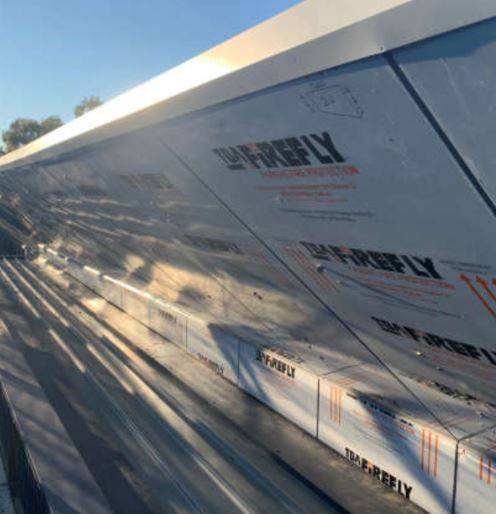

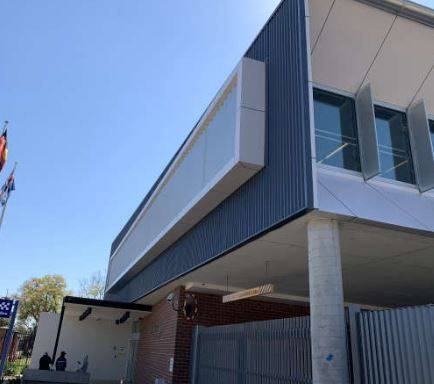

Firefly Solid Aluminium Panels

Verified by manufacturer over a year ago

TBA Firefly

Lightweight External Wall System incorporates ALL Non-combustible Components in accordance with BCA 1988 through to NCC2019 Amendment 1.

Jump to:
+61754114209 Website

Application

Suitable for use in building elements and their non-combustible components such as:

  • External walls and common walls, including all components incorporated in them including the façade covering, framing and insulations.
  • The flooring and floor framing of lift pits.
  • Non-loadbearing internal walls where they are required to be fire-resisting.

This whole wall system has also been tested for acoustics. The several acoustic systems were then subjected to thermal analysis and the results are contained within the thermal report.

Description

TBA Firefly™ are the FIRST Company to offer Fire Engineers, Façade Engineers, Building Certifiers/Surveyors and Design Engineers a true belt and braces Performance Solution approach to meeting the Non-Combustible requirements for lightweight external wall systems of Type A & B Construction. With 1 whole Wall System.

General information

Color

-

Manufacturer guidance

Available colours for Aluminum Solid Panel:


Solid Colours

  • Yellow.
  • Red.
  • Navy blue.
  • White.
  • Charcoal.
  • Monument.
  • Black.


Metallic Colours

  • Metallic silver.
  • Gunmetal grey.
  • Champagne.
  • Dark grey metallic.
  • Medium bronze metallic.
  • Natural copper.
  • Gold metallic.


For accurate colour, please request a sample. Consult manufacturer for details.


Warranty description

20 year

Uniclass

Ss_25_20_72_72 Rigid sheet cladding systemsPrimary

SpeedSpec

07462 Cladding External Walls

NATSPEC National Classification System

0431 Cladding - Combined

Specification data - Rigid sheet cladding systems

System performance

Fire performance.

Acoustic performance.

Thermal insulation

TBA Firefly Vulcan R.02 thermal break.

TBA Firefly Non-Combustible sarking.

Manufacturer guidance

Thermally bridged. Determinations based upon NCC 2019 Amendment 1 and AS/NZS 4859 Parts 1&2:2018, Thermal insulation materials for buildings.

Cladding support

-

Type

Top hat.

Z profile.

Steel substrate.

Steel angle.

Fasteners

Pan head screw.

Hex screw.

Hex head screw.

Pop rivets.

Cladding panels

Aluminium cassette panels.

System accessories

Waterproof silicone sealant.

TBA Firefly NCBR.

Isolation tape washer.

Flashing.

Dow corning 795 structural silicone.

Execution

-

Manufacturer guidance

Refer to installation manual for connection and fixing. Consult manufacturer for details
