Fire-Rated Multi-Service Block®
Verified by manufacturer over a year ago
Fire-stopping a huge range of multiple service penetrations.
Application
Suitable for a wide range of 60 minute fire rating wall substrates.
Description
TBA Firefly™ FR Multi-Service Block® may be fitted to various panels including Speedpanel, Fire Grade Plasterboard lined the wall, INEX Wallboard lined the wall, TBA Firefly™ Intubatt® Penetration Seal, solid and hollow masonry, Brickworks Prontopanel, Hebel Prontopanel, Hebel Powerpanel, Binderholz CLT wall, XLAM CLT wall, Stonewall Platinum FR60 Wall System.

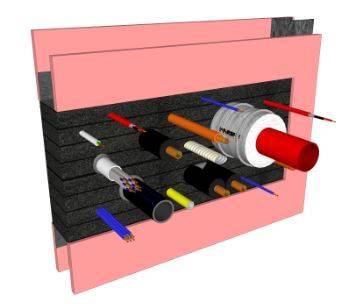

- The TBA Firefly™ FR Multi-Service Block® will accept various cables, plastic and metal pipes.
- Refer to the referenced assessment report for a full description of the assessed construction and performance claims.
- Tested in Accordance with AS 1530.4-2014 and Assessed in Accordance with AS4072.1-2005.
General information
Warranty description | 25 year |
Uniclass | |
NATSPEC National Classification System | 0182 Fire-Stopping |
SpeedSpec | 07810 Fireproofing |
SpecPack | 07810 Fireproofing |
Specification data - Surface-mounted intumescent pipe collars
Sizes | 500 w x 200 h (mm).1000 w x 100 h (mm).Manufacturer guidanceHorizontal, vertical and diagonal spacing between the services must be a minimum of 40 mm service exclusion zone. Consult manufacturer for details. |
Fire resistance level | |
Standard | To AS 1530.4 and AS 4072.1. |
Value | -/60/60. |
Certification | CSIRO RIR FCO-3228. |
Execution | Speedpanel FR. Hebel powerpanel FR. Brickworks pronto panel FR. |
Substrates | Speedpanel. Guidance for specification option: 51 mm width. Fire Grade Plasterboard lined wall. Guidance for specification option: 90 mm width. INEX Wallboard. Guidance for specification option: 162 mm width. TBA Intubatt Penetration Seal. Guidance for specification option: 50 mm width. TBA Firefly Intubatt 2 Layers of 50mm. Guidance for specification option: 100 mm width. |
Integral services | Electrical. Mechanical. Hydraulic. Wet fire. Security. |
