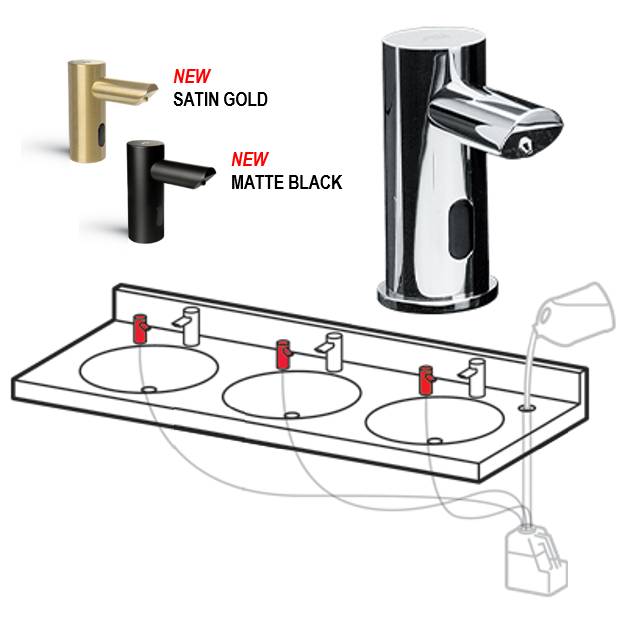

EZFill™ Soap Dispenser Head and Top-Fill Multi-Feed Kit

Verified by manufacturer over a year ago

EZFill™ Soap Dispenser Head (Matt Black)

ASI JD MacDonald Pty Ltd Variant:

Multi-feed, sensor-operated soap dispenser kit.

Jump to:
1800 023 441 Website

Application

Suitable for various environments requiring a vanity mount, hands-free soap dispenser.

Description

EZFill™ Soap Dispenser Head is a vanity mount, automatic soap dispenser with hands-free sensor operation. Supply of soap shall be from the EZFill™ Top-Fill Multi-Feed Tank, which is supplied separately. Some features of the kit include:

  • Sensor operation.
  • Programmable stream cycles.
  • Operating LED lights.
  • 6 L liquid soap capacity.
  • Can supply up to six individual soap dispenser unit per Multi-Feed Tank.

General information

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two years.

Uniclass

Pr_40_70_22_81 Soap dispensersPrimary

SpeedSpec

05580 Architectural Metalwork and Whitegoods

NATSPEC National Classification System

0811 Sanitary Fixtures

0572 Miscellaneous Furniture

SpecPack

05500 Metalwork

Specification data - Soap dispensers

Form

Vanity-mounted.

Size

38 mm (diameter) x 106 mm (height) x 95 mm (depth).

Guidance for specification option:

Spout projection: 57 mm.

Manufacturer guidance

Refers to product overall dimensions above vanity.


Unit can be mounted on vanity deck up to 51 mm thick through a 25–32 mm diameter hole.

Materials

-

Body

Brass.

Finish and colour

Dependant on product configuration.

Operation

Automatic.

Integral accessories

Soap dispenser head, AC adapter and under-counter soap distribution tubing (provided).

Configuration

EZFill™ Top-fill, multi-feed soap dispenser head in matt black finish.

Ancillary components

EZFill™ Top-Fill Multi-Feed Kit (supplied separately).

Viscosity

100–3800 mPa-s.

Manufacturer guidance

Refers to required soap viscosity.

PHLevel

5.5–8.5.

Model

10-0390-3AC-41.

Literature

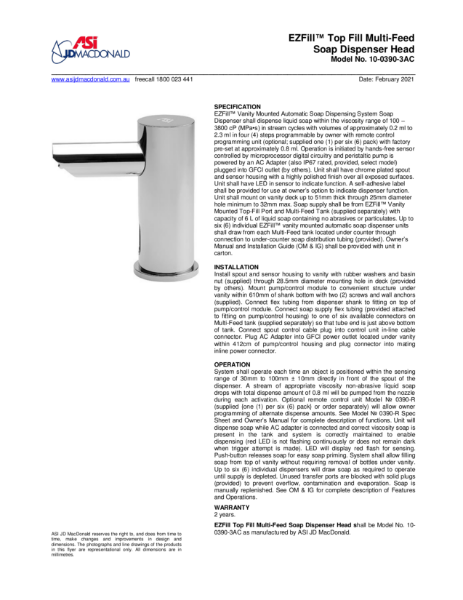

EZ-Fill Soap Dispenser Head Specification Sheet

EZ-Fill Soap Dispenser Head Specification Sheet

Commercial Washroom

Commercial Washroom

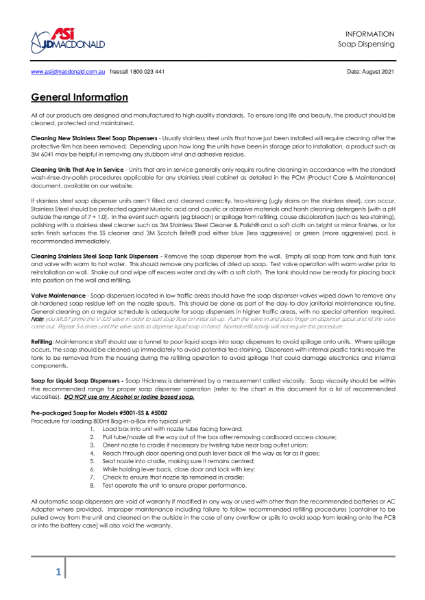

Soap Dispensing Information
