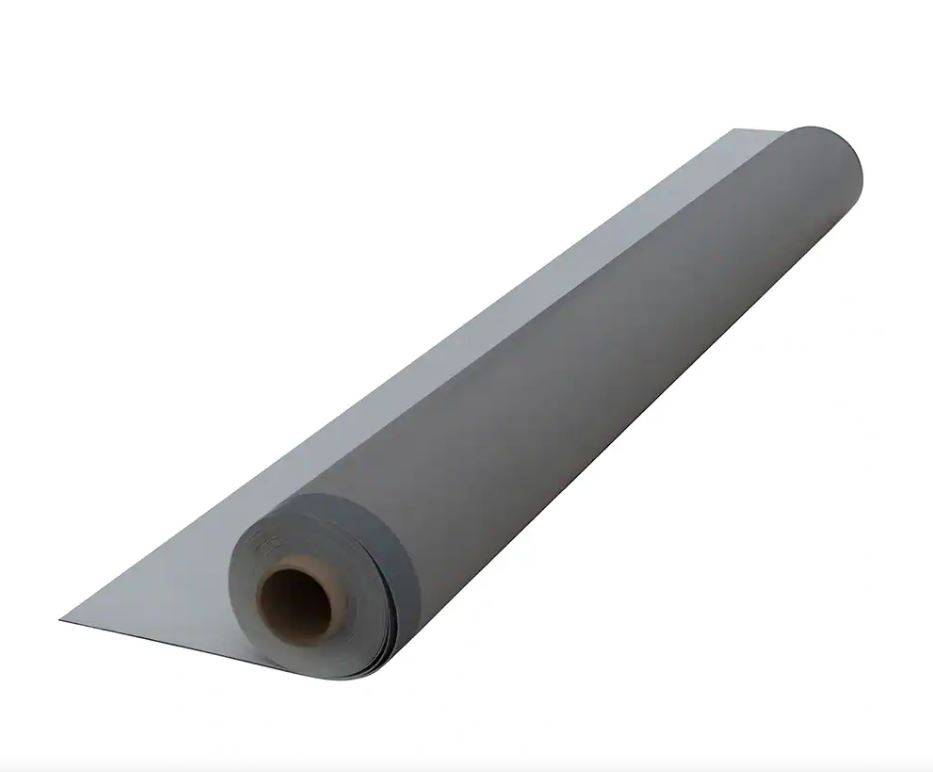

EverGuard Extreme TPO 60 mil (1.5 mm) Smooth

Verified by manufacturer over a year ago

BMI Flat Roofing Australia Third party certifications:
  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • Declare

    Declare

    Certificate type

  • ASTM

    ASTM

    Certificate type

  • FM Approved

    FM Approved

    Certificate type

  • DoP

    DoP

    Certificate type

  • UL Certified

    UL Certified

    Certificate type

Next-generation TPO engineered for extreme applications.

Jump to:
+61418117987 Website

Application

EverGuard Extreme® TPO 60-mil membrane has a versatile application method and is suitable for all types of single-ply systems in outdoor locations.

  • A quick and cost-effective system that can be installed practically year-round.
  • RhinoBond® application can be applied without using adhesives and installed practically year-round.
  • Can be installed with EverGuard® 1121 Bonding Adhesive (solvent-based), EverGuard® Low VOC TPO Bonding Adhesive, or EverGuard® WB181 Bonding Adhesive (water-based) for the smoothest appearance.


In addition, RhinoBond® Attachment Systems have advantages over traditional mechanically attached systems, including:

  • No half sheets and less seams.
  • Longer warranties.
  • No fastener penetrations in the field or seams of the membrane.
  • Less flutter with optimized attachment across the entire sheet.

Description

EverGuard Extreme® TPO 60-mil Membrane has a versatile application method and is suitable for all types of single-ply systems. Some of its features and benefits include:

  • Superior performance at a cost effective price.
  • Heat welded seams that provide greater seam strength to taped and pother seams.
  • Excellent long term heat and UV resistance.
  • Highly reflective and emissive white roof can help reduce energy costs and urban heat island effect.
  • Easy to install.
  • Provides superior wind uplift performance.


EverGuard Extreme TPO is the overall best-performing TPO in accelerated aging in the largest independent TPO study ever conducted and offers the longest TPO warranty available in the industry (up to 35 years.) EverGuard Extreme TPO is available in a variety of thickness and can fit most budgets.

General information

Color

White

Finish

Smooth

Material

Plastic

Shape

Square

Size

-

Manufacturer guidance

1.52 x 30.5 m (Half roll size). 1.21 x 30.5 m (Half roll size).

Length

30500 mm

Width

3050 mm

Height

1.5 mm

Warranty description

25 year

Manufacturer guidance

30 year guarantee.

Uniclass

Pr_25_57_51_66 Polymeric membranesPrimary

NATSPEC National Classification System

0411b Waterproofing – Membrane Roofing and Screeds

0411a Waterproofing – Membrane Roofing

0411 Waterproofing – External and Tanking

SpecPack

07500 Membrane Roofing and Plumbing

SpeedSpec

07500 Membrane Roofing and Plumbing

Specification data - Polymeric membranes

Standard

To ASTM D6878.

Material

Thermoplastic polyolefin.

Width (minimum)

1520 mm.

Manufacturer guidance

Half roll width.

Thickness (minimum)

1.52 mm

Colour

White.

Breaking strength:

305 lbf x 290 lbf (454 x 432.1 kg/m).

Water absorption

0.7%.

Weather resistance

>46,000 KJ/(m² nm) at 340 nm.

Weight

146 kg.

117 kg.

73.5 kg.

58.4 kg.

Certification

UL Listed. FM Approved. Title 24 Compliant. Miami Dade County Approved. Florida Building Code Approve. ENERGY STAR® Qualified.

Elongation at break

305 lbf x 290 lbf (454 x 432.1 kg/m).

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.00 kg·CO₂e/kg

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

2 %

Third party certifications

Cradle to Cradle Certified

Cradle to Cradle Certified

BMI EVERGUARD TPO EXTREME CRADLE TO CRADLE CERTIFCATION

Declare

Declare

BMI EVERGUARD TPO EXTREME DECLARE CERTIFICATE

ASTM

ASTM

BMI EVERGUARD TPO EXTREME SRI TEST EXECUTIVE SUMMARY REPORT

FM Approved

FM Approved

CERTIFICATE OF CONFORMITY OF THE FACTORY PRODUCTION CONTROL

DoP

DoP

Evaluation Listing CCMC 14063-L EverGuard® TPO and EverGuard Extreme® TPO Roofing Products

UL Certified

UL Certified

UL Evaluation Report ® TPO, EverGuard Extreme®
