Delta NP

Verified by manufacturer over a year ago

Ausdrain

An external waterproofing membrane that drains groundwater away from property, reducing water pressure.

Jump to:
1300 287 372 Website

Application

NP Drain is designed to protect structures from moisture. It is also suitable for use in areas such as:

  • Vertical and horizontal drainage in civil engineering, buildings, tunnels and retaining walls.
  • Garden roofs .
  • Basements.
  • Green roof parking decks.


Description

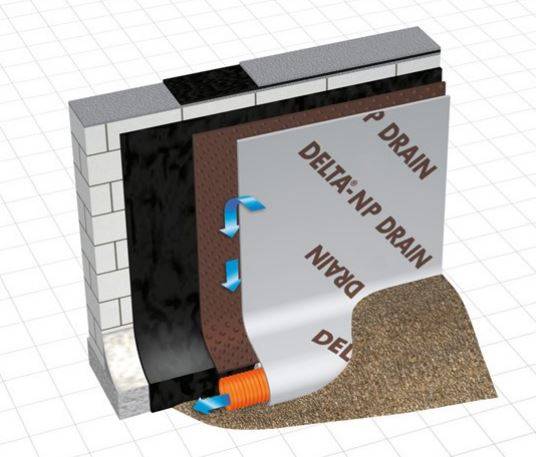

A compact two-layer geocomposite membrane which offers high drainage capacity through specially-configured dimples. The dimpled sheet prevents water logging and offers great protection from root penetration, whilst the geotextile layer filters out fine particles thus, ensuring constant flow of water to drains and discharge point.

General information

Size

8 mm x 1 m x 20 m.

8 mm x 2 m x 20 m.

Uniclass

Pr_15_57_27_36 Geocomposite studded sheetsPrimary

NATSPEC National Classification System

0411 Waterproofing – External and Tanking

SpecPack

07130 Waterproofing and Tanking

SpeedSpec

07130 Waterproofing and Tanking

Specification data - Geocomposite studded sheets

Material

High-density polyethylene (PE-HD).

Stud height

8 mm.

Roll size

2 x 20 mm.

Temperature resistance

-30°C to +80°C.

CompressiveStrength

150 kN/m² (approx).

Drainage

2.25 L/s - m (approx).

Sustainability data

Country of product manufacture

Australia

Literature

Delta NP

Delta NP
