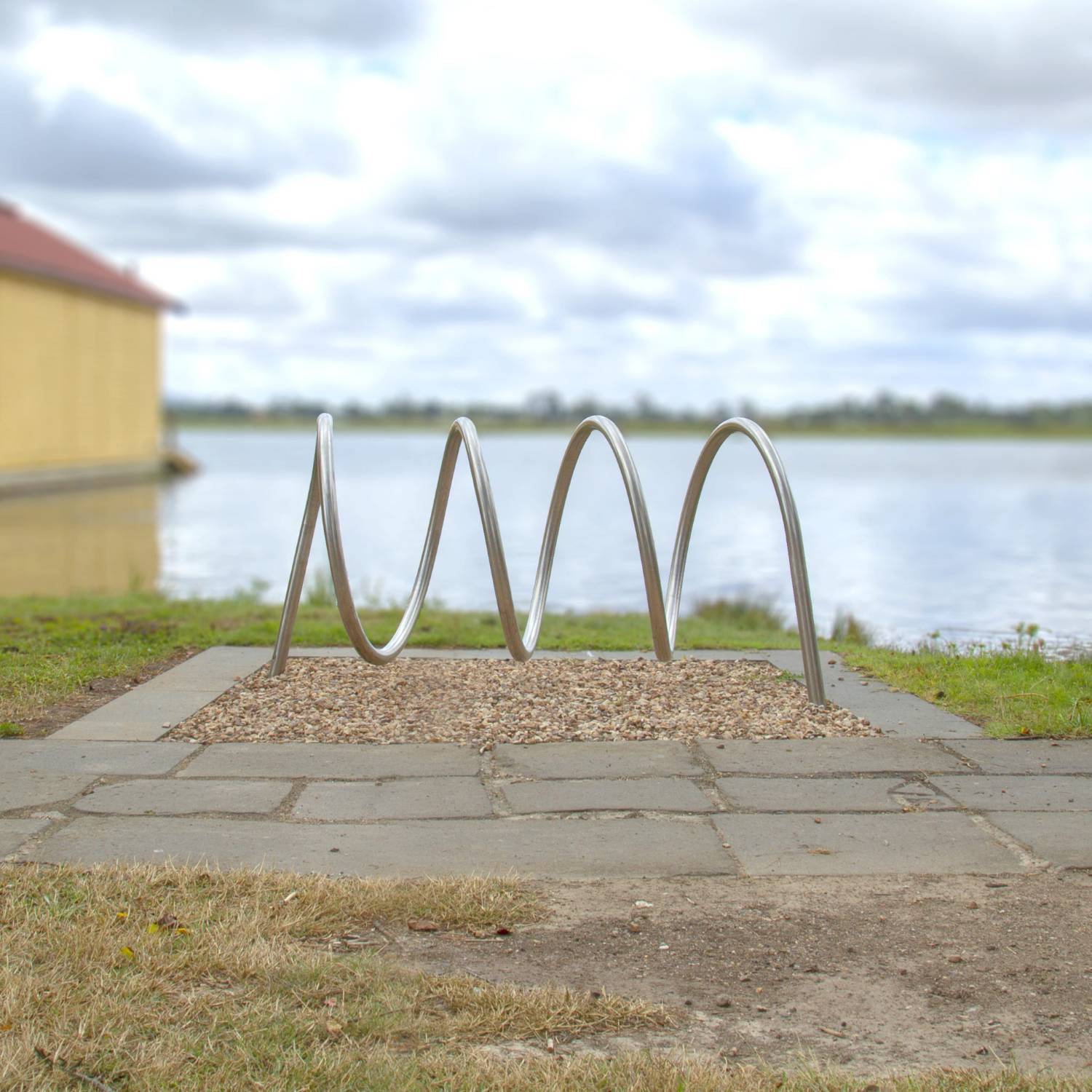

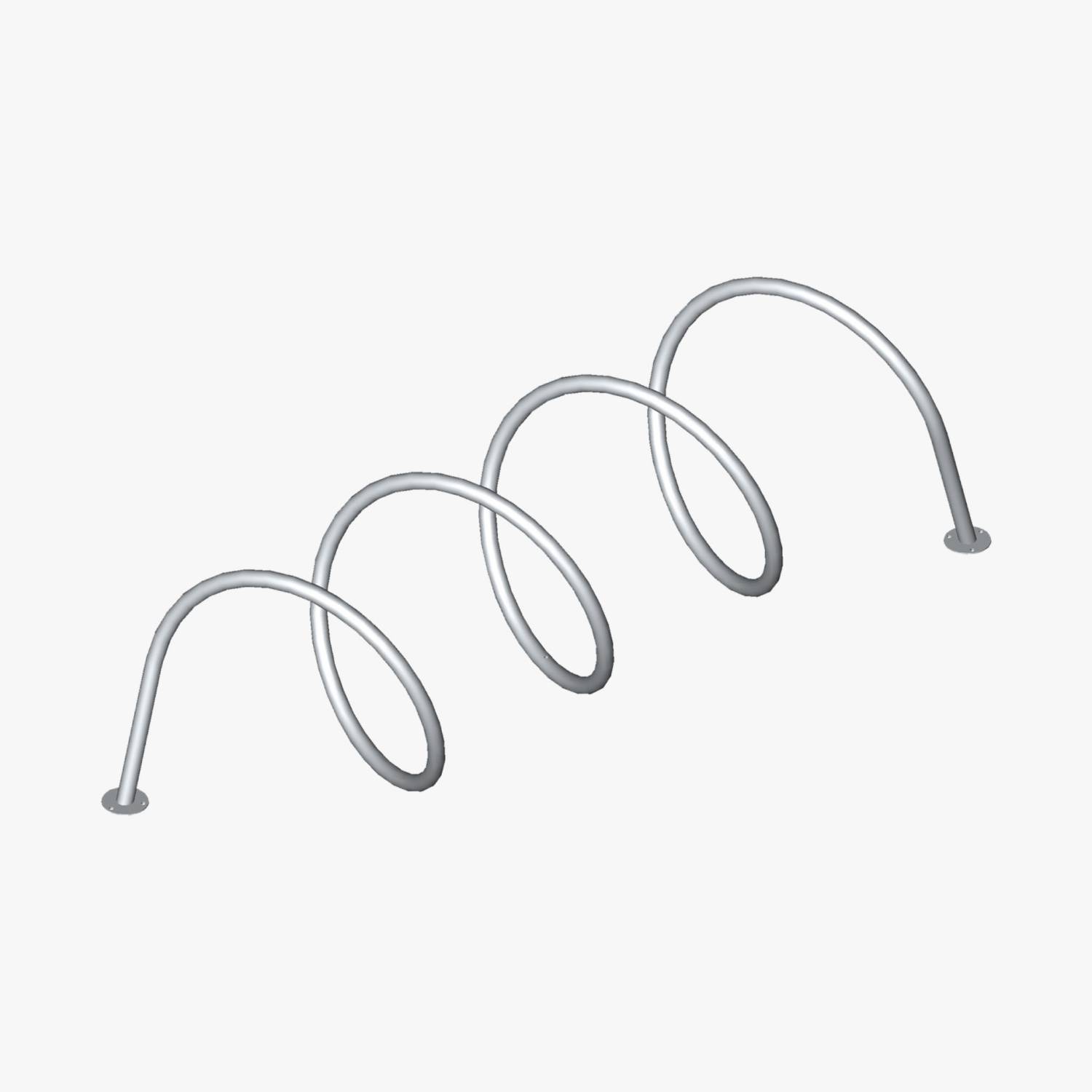

Cycla Spiral Bike Rack

Verified by manufacturer over a year ago

Civiq

Ground mount, fully welded bicycle rack.

Jump to:
1300 600 300 Website

Application

Suitable for high traffic outdoor public spaces and campuses.

Description

Cycla Spiral Bike Rack is a ground-mounted bicycle rack of stylish welded construction that is easy to install and maintain. Some of its features include:

  • Stylish design.
  • Durable and vandal-resistant material.
  • Fully welded construction.
  • Conforms to AS 2890.3:2015 Class 3 security.

General information

Material

Stainless steel.

Size

2600 x 830 x 830 mm. mm

Uniclass

Pr_40_30_21_35 Ground-mounted cycle standsPrimary

SpeedSpec

05580 Architectural Metalwork and Whitegoods

NATSPEC National Classification System

0261 Landscape – Furniture and Fixtures

SpecPack

10340 External Urban Items

Specification data - Ground-mounted cycle stands

Standard

To AS 2890.3.

Material

Stainless steel, grade 316.

Stainless steel, grade 304.

Form

Surface-mounted hoop.

Guidance for specification option:

Bolt down base plate with two anti-theft shear nuts.

Embedded hoop.

Guidance for specification option:

Fixed below ground leg with footing tie pin.

Dimensions

-

Width

830 mm.

Guidance for specification option:

Spiral pitch: 650 mm.

Length

2600 mm.

Above-ground height

830 mm.

Below-ground depth

180 mm.

Manufacturer guidance

Refers to depth of below ground fixed legs. Applicable for embedded units only.

Finish

-

Coating

Mechanical polish.

Guidance for specification option:

Available as standard.

Electro polish.

Guidance for specification option:

Available on request.

Powder-coated (Dulux colours).

Guidance for specification option:

Available on request.

Colour

Natural.

Guidance for specification option:

As standard.

Manufacturer guidance

For powder-coated units, indicate desired Dulux colour. Contact manufacturer for details.

Sustainability data

Country of product manufacture

Australia

Literature

Cycla Spiral Bike Rack

Cycla Spiral Bike Rack
