General information

Size

Dependant on profile configuration.

Uniclass

Pr_20_85_09_11 Carbon steel bracketsPrimary

SpecPack

05400 Cold-Formed Metal Framing

NATSPEC National Classification System

0342 Light Steel Framing

SpeedSpec

05400 Cold Formed Metal Framing

Specification data - Carbon steel brackets

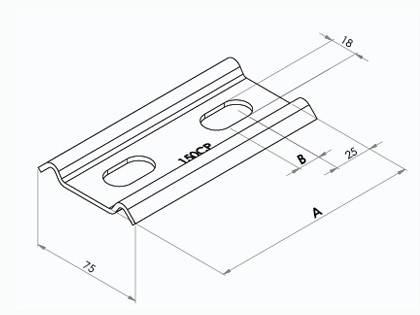

Section size

100 (90 mm length with 40 mm x 18 mm holes).

150 (140 mm length with 15 mm x 18 mm holes).

200 (190 mm length with 15 mm x 18 mm hole).

250 (240 mm length with 15 mm x 18 mm hole).

300 (290 mm length with 40 mm x 18 mm hole).

350 (340 mm length with 40 mm x 18 mm hole).

400 (390 mm length with 40 mm x 18 mm hole).

Manufacturer guidance

Constant width of 75 mm.
