Ceiling Mounted Ventilation Fan - Compact Ventilation Fan.
Verified by manufacturer over a year ago
Smart, lightweight and compact ceiling mounted ventilation fan with motion sensors and energy saving DC motor.
Application
- Suitable application for tight ceiling spaces.
- Automatically maintains constant air volume within fan operating limits to suit varying external static pressure.
- Ideal for bathroom or laundry areas.
Description
A slim profile, lightweight and compact extraction fans. Some of its significant features include:
- Easy to install.
- Built-in / Run on timer.
- Constant Airflow volume.
- 24-hour ventilation setting to avoid mould and damp issues.
- Quiet operation and low noise.
- Energy-saving DC Motor.
- Super quiet with noise level at only 36.5 dB(A) at 1m on high speed.
General information
Color | White |
Size | Manufacturer guidance3.6 W. |
Length | 230 mm |
Width | 230 mm |
Height | 100 mm |
Warranty description | Three year |
Uniclass | |
SpecPack | 10150 Toilet Compartments 15810 Air Distribution Ductwork |
SpeedSpec | 10150 Toilet and Similar Compartments |
NATSPEC National Classification System | 0731 Fans 0702 Mechanical Design and Install |
Specification data - Domestic fan units
Mounting | Ceiling. |
Product code | FV-24JA3. |
Power supply | AC (Single phase). |
Dimensions | 300 x 300 mm Guidance for specification option: Installation cut-out at 230 x 230 mm. |
Net weight | 2.9 kg. |
Cover depth | 12 mm. Guidance for specification option: Body depth at 180 mm. |
Sensors | No sensor. |
System performance | 22 L/s. |
Energy rating | 3.6 W. |
Power input | 50 Hz. |
Acoustical Performance | 24.5 dBA. |
Volume | 22 L/s. Guidance for specification option: Air volume. |
Controller | Wall controller. |
Sustainability data
Country of material origin | China |
Country of product manufacture | China |
Literature
Panasonic Ceiling Mounted Ventilation Fans
Similar products from Panasonic Australia A/C

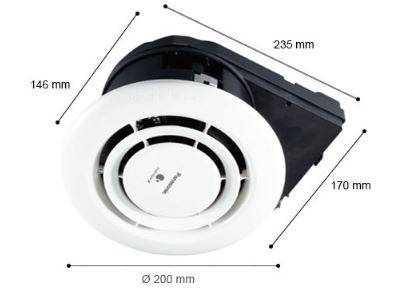

Ceiling Mounted nanoe™ X Generator (Air-e) - Compact Ceiling Mounted Ventilation Fan.
