CBR1 Bike Racks
Verified by manufacturer over a year ago
CBR1B
CBR1B
QA Certificate
Certificate type
Ground-mounted bike racks.
Application
Bicycle rack.
Description
CBR Series bike rails are designed to support the entire bike frame and each unit can accommodate up to two bikes, with one bike on each side. Available in three models:

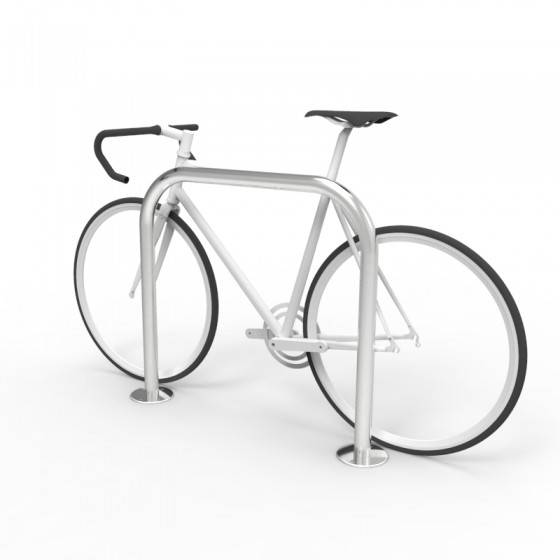

- CBR1B - Surface-fixed with 150 mm x 6 mm round base plate.

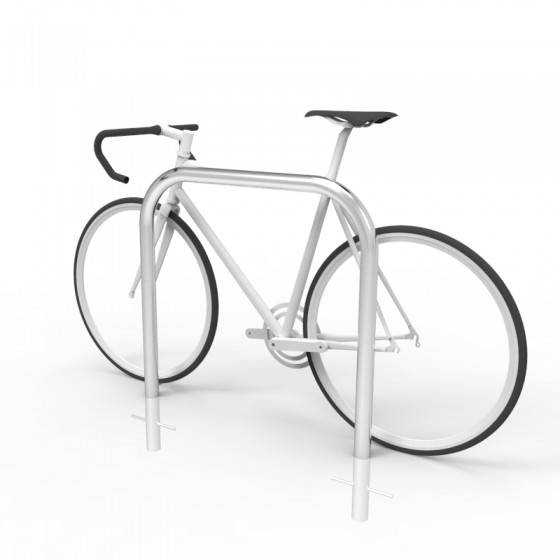

- CBR1F - 200 mm deep spigot fixed in concrete.
- CBR1-SG - Surface-fixed with integrated Scratch Guard bumper.
General information
Color | Manufacturer guidanceAvailable in galvanized, stainless steel (in stock) and any standard Cora colour (powder-coated finish). |
Finish | Powder-coated, Galvanized or Electropolished Stainless steel. |
Material | Heavy duty high quality steel, 304 Stainless steel or 316 Stainless steel. |
Size | Manufacturer guidance850 mm (width) x 800 mm (height). |
Warranty description | Five years. Manufacturer guidanceMaterial and workmanship warranty. |
Uniclass | |
NATSPEC National Classification System | 0552 Metalwork - Fabricated 0261a Landscape – External Urban Items 0261 Landscape – Furniture and Fixtures |
SpecPack | 02870 Unit Pavers |
Specification data - Ground-mounted cycle stands
Standard | To AS 2890.3:2015.Guidance for specification option: Park this item if AS 2890.3 compliance is not required. |
Material | Carbon steel.316 Stainless steel, electropolished.304 Stainless steel.Manufacturer guidanceGalvanized carbon steel and 316 stainless steel are standard. 304 stainless and powder coat carbon steel are available as options. |
Form | Surface-mounted hoop. |
Number of supports | 2. |
Dimensions | |
Width | 850 mm. |
Above-ground height | 800 mm. |
Finish | |
Coating | Galvanized.Powder-coated.Manufacturer guidanceWhere Stainless steel is specified, remove this item. |
Colour | Yellow.Blue.Red.Green.Grey.Black.Manufacturer guidanceApplicable for powder-coated finish only. Select from standard colour range. |
Fixings | Base plate and stainless steel anchor bolts. Manufacturer guidance150 mm x 6 mm round base plate. 4 x M10 x 80 mm stainless steel anchor bolts with tamper-resistant fasteners supplied. |
Supply | Fully welded and assembled. |
Green Certification | Green Star, Eco-specifier global verified. |
Third party certifications
Literature
Cora Bike Rack Product Finishes
CBR1 Brochure
CBR1 SG
Case studies

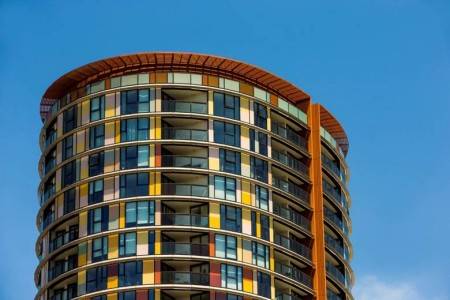

Ovo Green Square - Bike Parking for an Iconic Building
