CBL-1 Bike Locker

Verified by manufacturer over a year ago

CBL-1

Cora Bike Rack Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Class A bike locker for one bike.

Jump to:
+61 1800 249 878 Website

Application

Suitable for outdoor or indoor applications as a secure storage for one bicycle. Can be mounted next to each other in rows for multiple bike storage.

Description

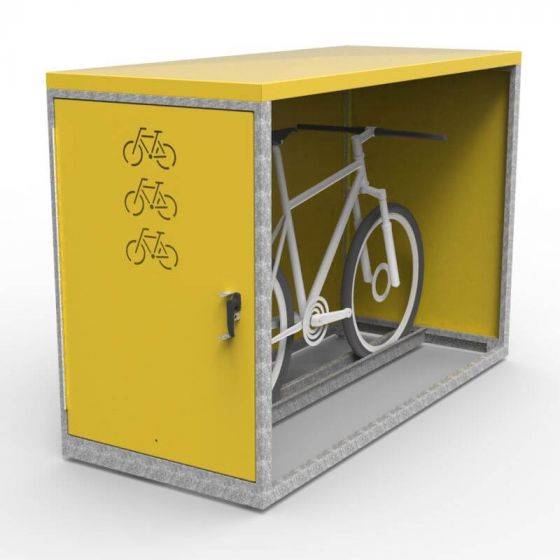

CBL-1 is a single door locker that provides the highest security Level A parking facility for one bike. It is designed for quick and easy assembly with several locking options. Some of its features include:

  • Heavy duty lockers of higher specification materials.
  • Designed for quick assembly.
  • Secure three-point door locking mechanism.
  • Key, latch or electronic locking options.
  • Stainless steel tamper-resistant fixings.

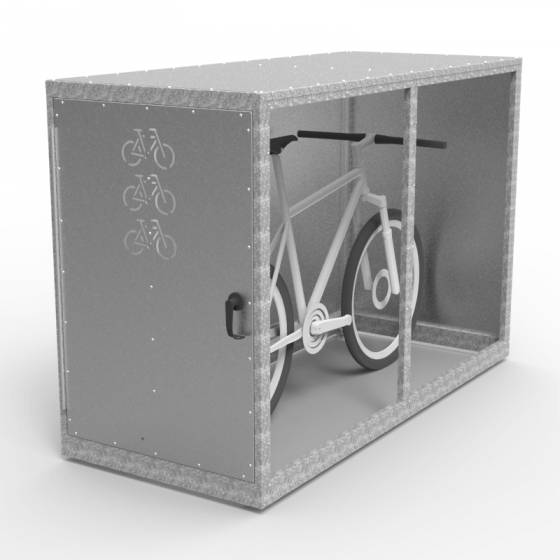

  • Available in galvanized or powder coat finish.
  • Available in light duty model.

General information

Color

-

Manufacturer guidance

Available in any standard Cora colour for powder-coated parts.

Finish

Galvanized frame with powder-coated panels or fully powder-coated frame and panels.

Material

Hot dip galvanized steel frame with 1.5 mm galvanized steel panels.

Size

-

Manufacturer guidance

1850 x 795 x 1260 mm.


Lockers can be installed next to each other in rows. Minimum of 2000 mm spacing is required between rows.

Warranty description

Two years.

Manufacturer guidance

Material and workmanship warranty.

Uniclass

Pr_40_30_21_11 Carbon steel cycle lockersPrimary

NATSPEC National Classification System

0552 Metalwork - Fabricated

0261a Landscape – External Urban Items

0261 Landscape – Furniture and Fixtures

SpecPack

02870 Unit Pavers

Specification data - Carbon steel cycle lockers

Standard

To AS 2890.3:2015.

Manufacturer guidance

Capacity 1 bike per locker.

Type

Cycle.

Form

Single.

Dimensions

-

Width

795 mm.

Length

1850 mm.

Height

1260 mm.

Materials

-

Frame

Hot dip galvanized carbon steel.

Panels

1.5 mm galvanized carbon steel.

Finish

-

Coating

Galvanized frame with powder-coated panels.

Powder-coated frame and panels.

Colour

Yellow.

Blue.

Red.

Green.

Grey.

Black.

Manufacturer guidance

Select from the standard Cora colour range.

Integral accessories

Key.

Latch.

Electronic key pad.

Manufacturer guidance

Select the appropriate locking mechanism.

  • Key Option: supplied with individual keys for each locker door.
  • Latch Option: allows user-supplied U-lock or padlock.
  • Electronic Option: battery-powered key pad.

Fixings

Stainless steel anchor bolts fixed to ground. Stainless steel screws for assembly.

Supply

Supplied flat packed and partially assembled for full assembly and quick mounting on site.

Green Certification

Green Star, Eco-specifier global verified.

Third party certifications

QA Certificate

QA Certificate

Ecospecifier Verified Product Certificate - Cora Bike Rack Range

Literature

Cora Bike Rack Product Finishes

Cora Bike Rack Product Finishes

CBL1 Brochure

CBL1 Brochure

CBL1 LD Brochure

CBL1 LD Brochure
