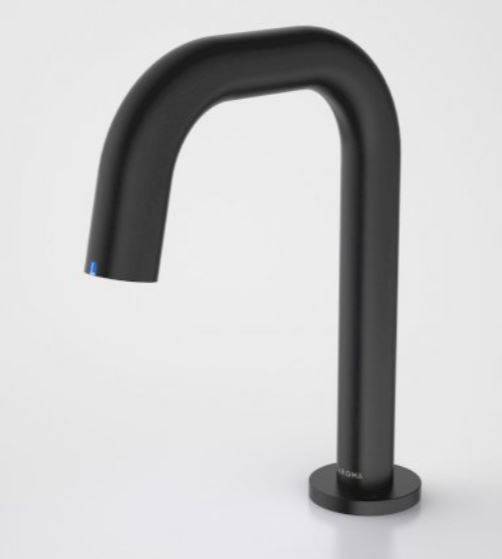

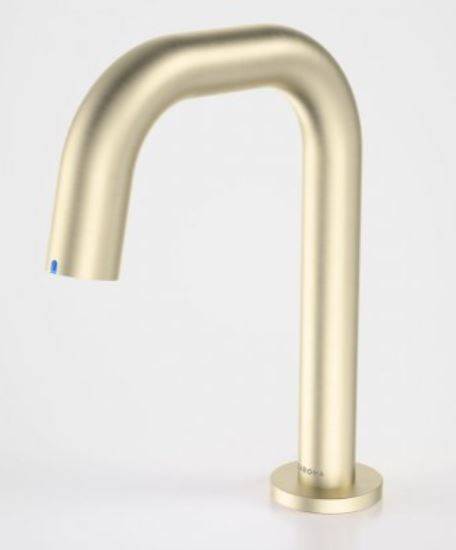

Caroma Smart Command Electronic Hob Basin Tap Blended
Verified by manufacturer over a year ago
Electronic hands-free, BlueTooth® enabled basin tap single supply.
Application
Suitable for commercial applications.
Description
A hob mounted tap with infra-red sensors for touchless activation, no physical touchpoints for a hygienic bathroom. Configurable to three pre-mixed thermostatic temperatures (Cold/Warm/Hot). Pre-set temperatures are displayed via the prominent LED at the end of the spout. Also available in wall mounted version. Some of its significant features include:
- Advanced self configuring tap understands the surrounding surfaces and alters setting appropriately.
- BlueTooth® enabled for direct access from a smart device and communication to Caroma Smart Command Cloud or BMS via API.
- Connected Smart tap enables configuration of operating parameters, testing of fixture status and usage review via Caroma Smart Command Cloud, Mobile App or through a BMS system.
- Hard wearing, low maintenance and solid brass construction.
- Control box can be installed remotely up to 2m distance from spout.
- Available in Chrome (98489C6A), Black (98489B6A), Brushed Nickle (98489BN6A), Brushed Gun Metal (98489GM6A), Brushed Brass (98489BB6A).
Standards complied with:
- Power supply safety compliance to AS/NZS 60950, UL 60950, EN 60950, IEC 60950.
- ROHS Compliance to EN50581:2012.
- EMC Compliance to EN 301 489-1 V2.1.1, EN 300 328 V2.1.1, EN623111, EN62368-1: 2014, AS/NZS CISPR 32:2015 (ITE Class B).
- Electrical Safety Compliance to EC 60950-1, UL 60950-1, CSA C22.2 60950-1.
General information
Finish | Chrome. Manufacturer guidanceAvailable in blended chrome, gunmetal, brushed nickel, brushed brass and blended black version. |
Material | Brass. |
Shape | Other |
Size | Guidance for specification option: Height: 211 mm. Distance to centre of outlet: 236 mm. Width: 50 mm (diameter). |
Width | 139 mm Guidance for specification option: Distance from center of tap outlet to center of waterpoint. |
Height | 211 mm Guidance for specification option: Overall tap height with waterpoint height at 124 mm. |
Warranty description | Two year. |
Uniclass | |
NATSPEC National Classification System | 0811 Sanitary Fixtures 0812 Tapware |
SpecPack | 15410 Plumbing Fixtures |
SpeedSpec | 15410 Plumbing Fixtures |
Specification data - Washbasin taps
Water Efficiency Labelling and Standards Scheme (WELS) | |
Standard | To AS/NZS 6400. |
Rating | 6 star. |
Form | Electronic hob basin tap blended. |
Materials | |
Body | Brass. |
Finish and colour | Blended chrome.Guidance for specification option: Code no. 98489C6A. Blended black.Guidance for specification option: Code no. 98489B6A. Gunmetal.Guidance for specification option: Code no. 98489GM6A. Brushed nickel.Guidance for specification option: Code no. 98489BN6A. Brushed brass.Guidance for specification option: Code no. 98489BB6A. |
Flow rate (maximum) | |
Cold water flow rate (maximum) | 3.5 litre per minute. |
Hot water flow rate (maximum) | 3.5 litre per minute. |
Water supply temperature (maximum) | 80°C (hot water temperature). |
Integral accessories | Infra-red.Bluetooth 4.0. |
Size | 52 diameter (mm). Guidance for specification option: Bench top plate. |
Weight | 650 g. |
Sensor | Infra-red. |
Power consumption | 20 mA (maximum). |
Power supply | Wall mounted power pack. Guidance for specification option: Supplied. |
