Artisan folding door

Verified by manufacturer 6 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

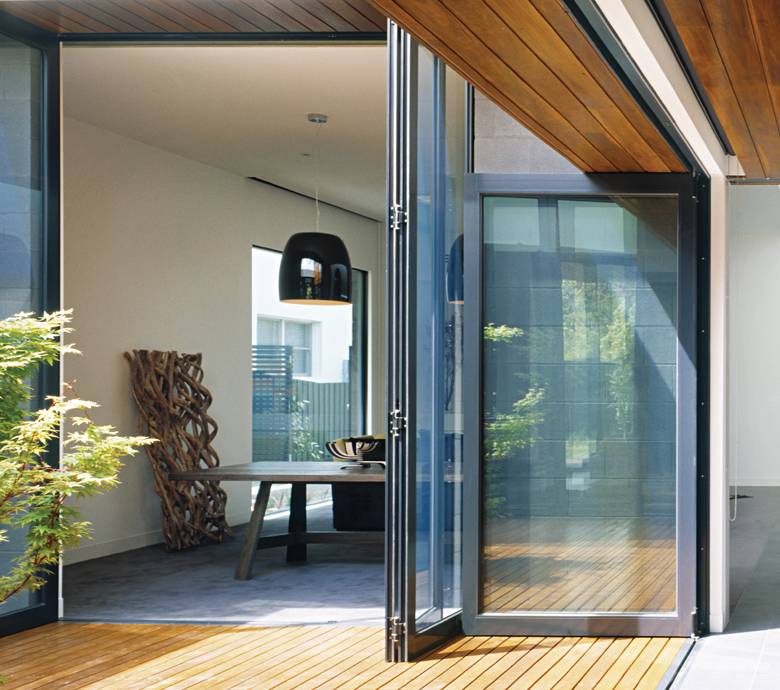

The Artisan aluminium folding door incorporates a technologically advanced folding door system that surpasses that of ordinary aluminium folding doors.

Jump to:
+61 7 3816 7500 Website

Application

Residential and commerical use.

Description

Using Effortless Motion Technology (EMT), Artisan simply leaves other bi-folds in the shade. They move and feel like no other, smooth and responsive. It’s no wonder then that Artisan EMT bi-folds are turning up on more and more prestige residential and commercial building projects all over Australia. It’s not just about EMT though. Artisan also incorporates Capral’s AGS ‘smart hinge’ and ‘Easy Gliding’ channel to make Artisan quietly the best and smoothest door on the market. Designed and tested to comply with Australian Standard AS2047, Artisan folding doors will open up an almost limitless range of possibilities for efficient and flexible use of floor space allowing home and commercial environments to function at peak performance. With slim lines, various sill options and panel configurations, plus a variety of popular colours suitable for domestic and the high demands of commercial applications, and any traditional or contemporary décor, makes Artisan the ideal choice for homeowners, builders, designers and architects alike.

General information

Finish

Anodised or Powder coated.

Shape

Rectangle

Uniclass

Pr_30_59_24_81 Sliding folding doorsetsPrimary

NATSPEC National Classification System

0453 Doors and Access Panels

0451 Windows and Glazed Doors

SpecPack

08350 Folding Doors and Grilles

SpeedSpec

08520 Metal Windows and Glazed Doors

Specification data - Sliding folding doorsets

Standard

To AS 2047.

Operation:

Manual.

Configurations

Biparting.

Odd leaves.

Even Leaves.

Stacking either side.

Door panels

Door Height: 3.0m / Door Width: 1.0m / Weight: up to 100kgs.

Frame dimensions

106.6 x 29 Flat Sill.

101.6 x 45 Std Sill.

101.6 x 57 HP Sill.

Manufacturer guidance

For detailed interlock information please contact Capral Spec Team.

Glazing

Single.

Double.

Performance:

Max SLS: 3000pa / ULS: 8000pa / WATER: 450pa.

Standard:

AS2047.

Acoustic data

Max Rw 36 (-1C;-3Ctr).

Cyclonic impact testing

No

Bushfire attack level (BAL)

BAL 40.

Hardware

• Single Point Locking.
• Triple Point Locking.
• DDA Compliant Handle.

Integral accessories

• Aquago SubSill Drain.
• Stepped Threshold.
• Zero Threshold.

Accessories:

Trickle Vents.

Security Screen.

Flyscreen.

Bushfire Screen.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Capral Aluminium Door Systems Capral Fabricator Network

Literature

Capral Artisan Brochure 2013

Capral Artisan Brochure 2013

Specification Artisan Folding Door 1903

Specification Artisan Folding Door 1903

Technical Manual Artisan Folding Door Capril 2020 11 01

Technical Manual Artisan Folding Door Capril 2020 11 01

Extrusion Wall Chart AGS Doors Capral 2011

Extrusion Wall Chart AGS Doors Capral 2011
