Application

Ventilated rainscreen facade system, suitable for public buildings and high traffic areas such as schools.

Description

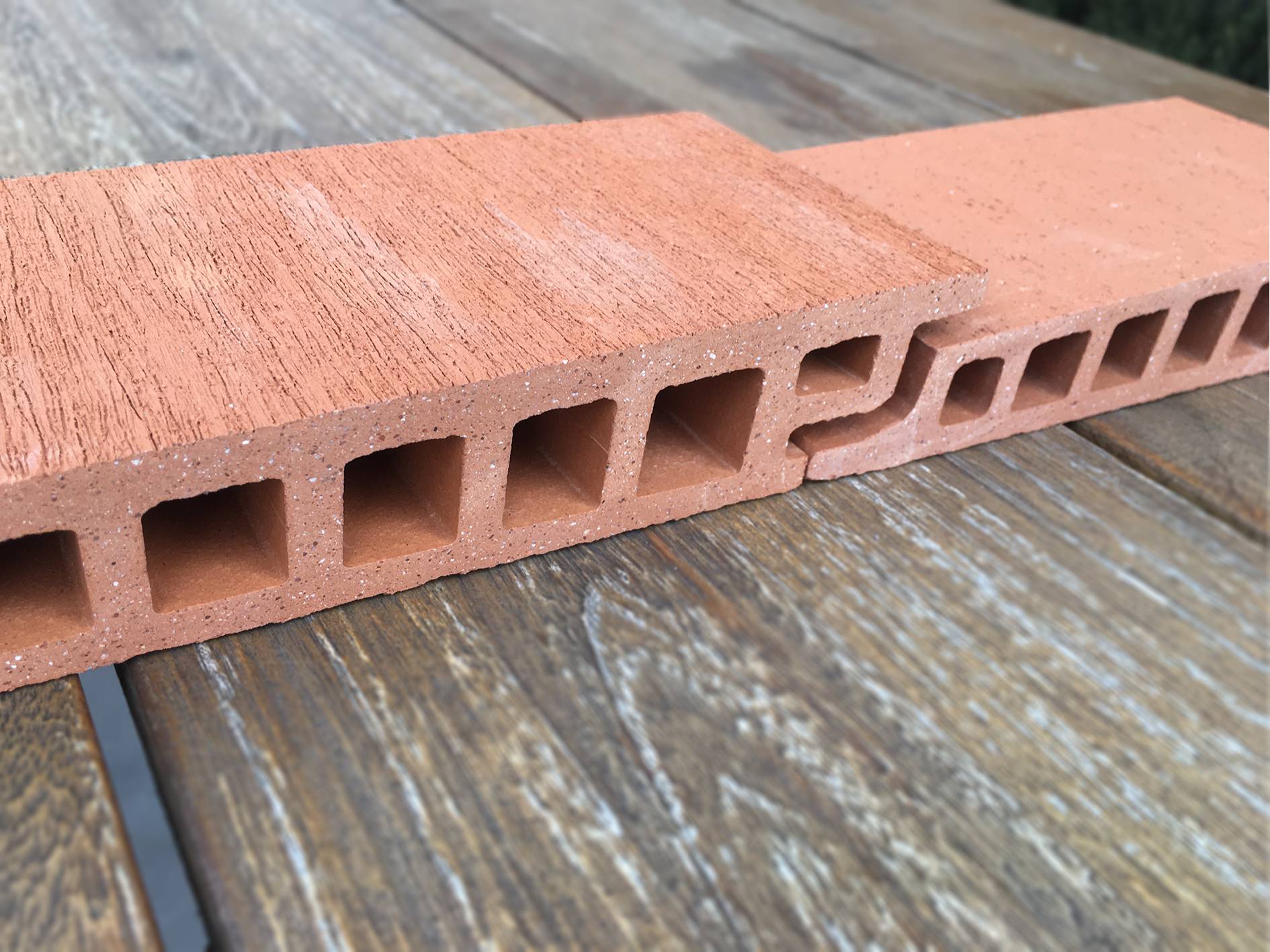

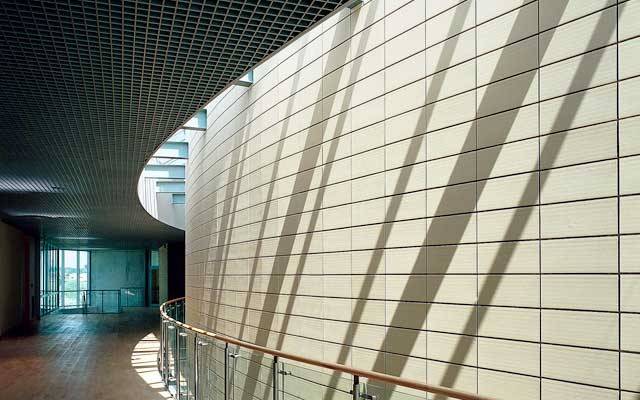

Terracotta ventilated rainscreen facade system, available in a complete range of natural clay tiles and panels. When combined with steel, glass or wood, Argeton can add an elegant and timeless look to exterior facades. Enriching new and modern buildings, the Argeton facade also imparts an exclusive contemporary character to refurbished properties.


Baguettes or sunshades are also available in the Argeton range for solar protection, to act as an effective ventilation screen, to provide security against access, or to add an eye-catching decorative element to the design.


Features and benefits:

  • Concealed fixing system.
  • Scratch and dent resistant.
  • Environmentally friendly.
  • Extreme UV and weather resistance.
  • Architectural appeal with a natural clay finish.
  • Exceptional durability and strength; suitable for high-impact areas.
  • Available in a range of colours, shapes and formats.
  • Non-combustible.
  • Ball impact safety tested to DIN 18032-3.

General information

Color

-

Manufacturer guidance

Available in a wide range of colours. Contact manufacturer for details.

Finish

-

Manufacturer guidance

Standard, glazed or engobe.

Material

Terracotta.

Shape

Rectangle

Size

-

Manufacturer guidance

Dependent on options specified.

Warranty description

15 years as standard. Consult manufacturer for details.

Uniclass

Pr_25_71_14_88 Terracotta panelsPrimary

SpeedSpec

07462 Cladding External Walls

SpecPack

07480 Terracotta Facade System

NATSPEC National Classification System

0431 Cladding - Combined

Specification data - Terracotta panels

Fire performance

-

Combustibility

Non-combustible to AS 1530.1.

Fire hazard properties

-

Standard

To AS 5637.1 and AS/NZS 1530.3

Group number

Consult manufacturer

Smoke growth rate index

Consult manufacturer

Average specific extinction area

Consult manufacturer

Flammability index

Consult manufacturer

Spread of flame index

Consult manufacturer

Smoke developed index

Consult manufacturer

Panel size

-

Length

800 mm.

Manufacturer guidance

Maximum; tolerance ±1.0 mm.

Height

200 mm.

250 mm.

300 mm.

Manufacturer guidance

Centre-to-centre distance; tolerance ±2.0 mm.

Panel thickness

24 mm.

Edge profile

Manufacturer's standard

Finish as delivered

Standard surface

Glazed

Guidance for specification option:

Insert colour requirements in Colour.

Engobe, surface structure 1

Guidance for specification option:

See manufacturer's literature for details.

Engobe, surface structure 2

Guidance for specification option:

See manufacturer's literature for details.

Engobe, surface structure 3

Guidance for specification option:

See manufacturer's literature for details.

Engobe, surface structure 4

Guidance for specification option:

See manufacturer's literature for details.

Engobe, surface structure 5

Guidance for specification option:

See manufacturer's literature for details.

Verification

-

Submittals

Manufacturer's approved installer certification.

Manufacturer's certification.

Timing

At tender.

Before commencement of installation.

Before completion of detailed design.

Before placement of orders.

No later than two weeks following request.

To comply with programme.

Colour

Salmon/ Pastel Red

Burgundy

Chocolate

Platinum Grey

Basalt

Show more

Accessories

None

Argeton Barro - baguettes

Argeton Barro - louvres

Ceramic corner

Product Reference

Argeton Tampa

Guidance for specification option:

Clear and simple form, for a clean-cut building appearance.

Argeton Terzo

Guidance for specification option:

False joints in various widths and distances for a lively facade design.

Argeton Lineo

Guidance for specification option:

Horizontal linear finish formed by 3 mm-deep grooves.

Argeton Danza

Guidance for specification option:

Overlapping panels that generate varying shadows depending on how light falls on the facade.

Argeton Altivo

Guidance for specification option:

Vertically-oriented facade tiles.

Show more
