APF Series

Verified by manufacturer over a year ago

APF-25

Construction Specialties Variant:

Floor joint covers that is suitable for areas with heavy rolling loads.

Jump to:
+61 1300 272 602 Website

Application

Suitable for applications with heavy rolling loads such as:

  • Forklifts with full pneumatic tyres of a permissible total weight of 7 tonnes (tyre adhesion area 200 x 200 mm).
  • Trucks with pneumatic tyres of a permissible total weight of 30 tonnes.
  • Vehicles and goods handling trucks with tyres of hard plastics. The permissible load dependent on tyre width is 6.5 kg per every mm of tyre width.

Description

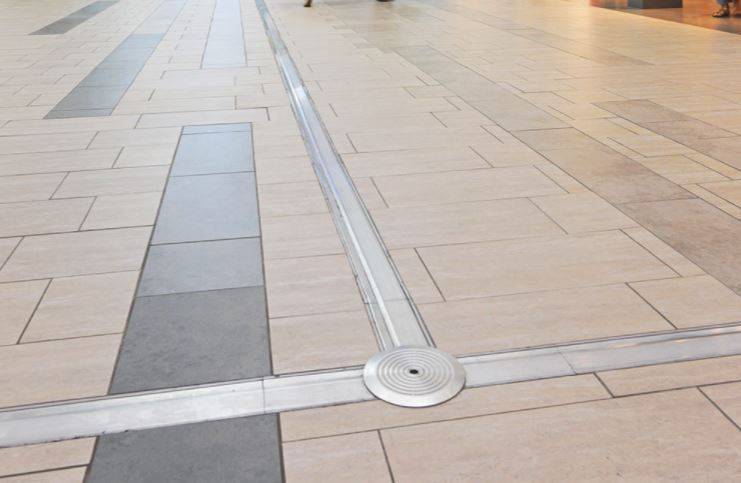

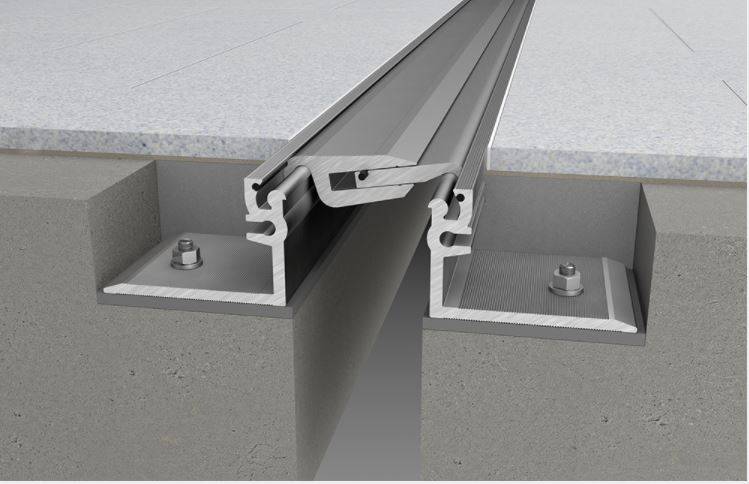

Recess mounted floor joint covers, highly resistant to rolling loads, distortion and wear. Five frame depths are available to suit a variety of situations and they can be mixed and matched if required. Cover plates and exposed frame sections are serrated to provide an anti-slip surface.

General information

Material

Aluminium

Shape

Anodized

Uniclass

Pr_35_90_53_53 Metal section movement jointsPrimary

NATSPEC National Classification System

0612 Cementitious Toppings

0315 Concrete Finishes

0310 Concrete - Combined

SpecPack

03530 Concrete Screeds (Granolithic)

03360 Concrete Finishes

03310 Concrete

SpeedSpec

03530 Concrete Screeds (Granolithic)

03365 Concrete Finishes

03310 Concrete

Specification data - Metal section movement joints

Joint width (nominal)

25 mm.

Edging

-

Material

Aluminium.

Finish

Anodized.

Colour

Clear.

Insert

-

Material

Anodised aluminium coverplate and cover plate insert.

Colour

Clear.

Opening

20 mm.

Guidance for specification option:

Minimum.

30 mm.

Guidance for specification option:

Maximum.
