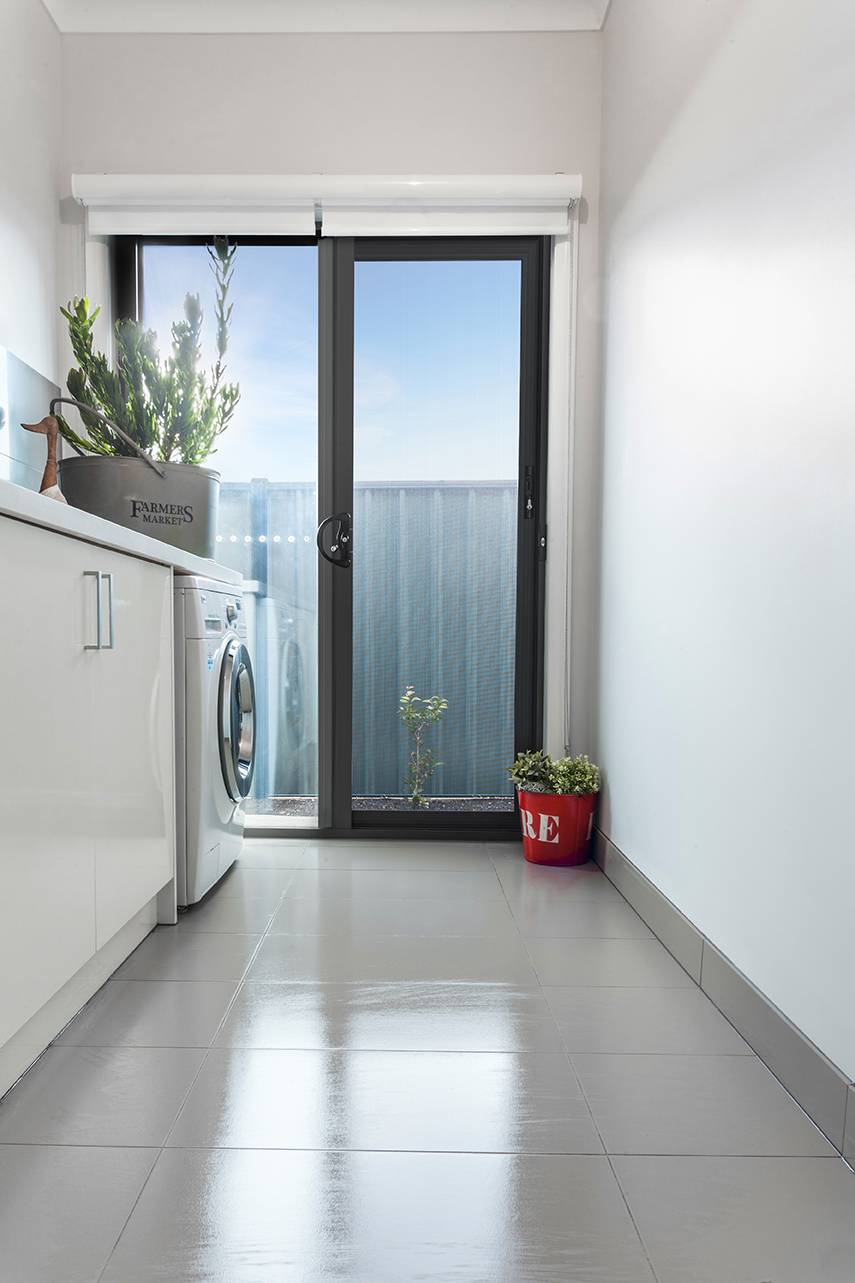

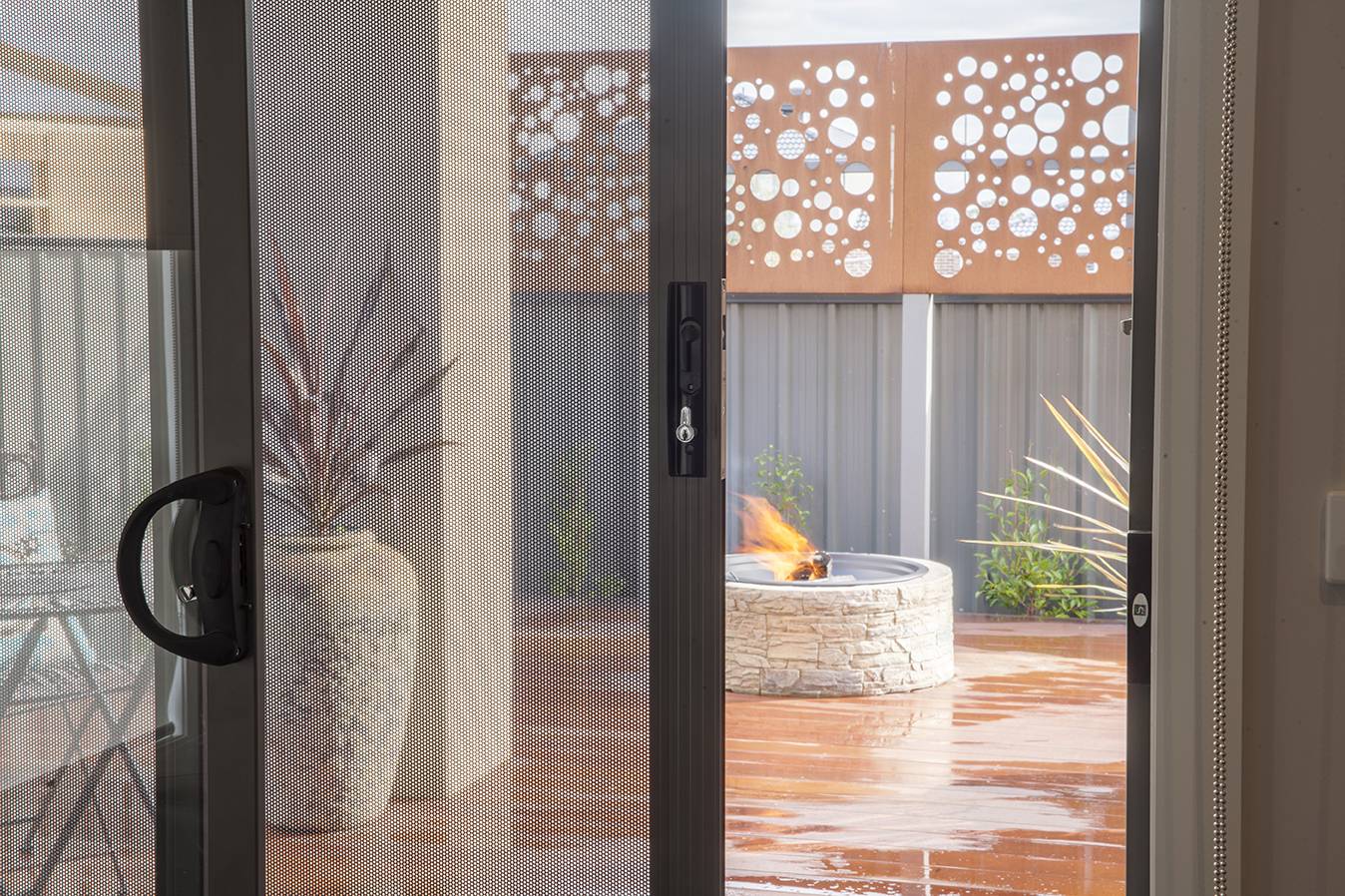

Amplimesh IntrudaGuard

Verified by manufacturer 5 months ago

Capral Aluminium

Commercial and residential screens for windows and doors.

Jump to:
+61 7 3816 7500 Website

Application

Residential and commercial security screens for windows and doors.

Description

IntrudaGuard® security screens for windows and doors are assembled using a unique bonding process to hold the perforated shield in place, which eliminates the need for visible screws, rivets, pins, and snap-ins. The screen is constructed from a single sheet of specially tempered marine-grade aluminum, which features a distinguished perforated design. 5052 Marine Grade 1.2mm Aluminium Sheet Security AS5041, Bushfire AS3959 compliant to BAL29 Fall Prevention AS5203.

General information

Color

-

Manufacturer guidance

Multiple colours available.

Material

Aluminium.

Shape

Other

Manufacturer guidance

Rectilinear.

Size

Customizable.

Warranty description

10-year Amplimesh Intrudaguard Warranty.

Uniclass

Pr_30_59_23_53 Metal door leavesPrimary

NATSPEC National Classification System

0453 Doors and Access Panels

0451 Windows and Glazed Doors

SpeedSpec

08660 Window and Door Security

SpecPack

08660 Window and Door Security

Specification data - Metal door leaves

Standard

To AS 2047.

Format

Fixed window.

Dimensions

customizable.

Performance

-

Building classification

To NCC 2019 Amendment 1, BCA Volume Two.

Fire resistance level

-

Standard

To AS 1530.4 and AS 1905.1.

Bushfire protection level

-

Standard

To AS 3959.

Level

BAL – 29.

Solar heat gain coefficient (SHGC)

-

Manufacturer guidance

Aids SHGC by upto 0.37 improvement.

Material

5052 Marine Grade 1.2mm Aluminium Sheet.

Perimeter seals

Bug Strip.

Finish

-

Colour

Interpon D1000

Sustainability data

Country of product manufacture

Australia

Recyclability

100 %

Literature

IntrudaGuard Technical Manual 2017_08_01

IntrudaGuard Technical Manual 2017_08_01

ExtrusionWallChart_Security_Amplimesh-Capral_R2008

ExtrusionWallChart_Security_Amplimesh-Capral_R2008
