Aluclick
Verified by manufacturer over a year ago
Solid Colour Finish
Solid Colour Finish
Extruded aluminium decorative beam system.
Application

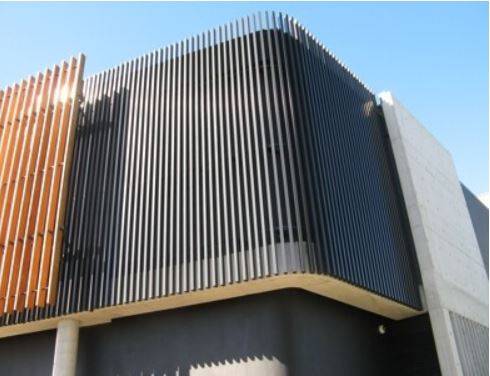

Suitable for interior and exterior ceilings and walls in commercial, retail, residential, education or any place where a durable beam effect is required.
Description
Aluclick is a quick to install, extruded aluminium decorative beam system developed to 'click lock' into a standard suspension system. It comes in a range of different decorative solid colour and woodgrain finishes, as well as three standard profile sizes which can be mixed and matched. Weatherproof and non-combustible.
General information
Material | Aluminium. |
Warranty description | 25 years. Guidance for specification option: The following is applicable to aluminium products in standard colours only (Interpon D2525 powdercoat):
Manufacturer guidanceUp to 25 years warranty available, depending on panel finish. Contact manufacturer for specific colour and project warranty. |
Uniclass | |
NATSPEC National Classification System | 0533 Suspended Ceilings - Ceiling Units 0531 Suspended Ceilings - Combined 0457 External Screens |
SpeedSpec | 10705 Exterior Sun Control Devices 09500 Suspended Ceilings |
SpecPack | 10705 Exterior Sun Control Devices 09500 Suspended Ceilings |
Specification data - Facade-aligned brise soleil systems
Classification data | |
Execution | Installation to be done by a Supawood-certified ceiling and partition contractor. |

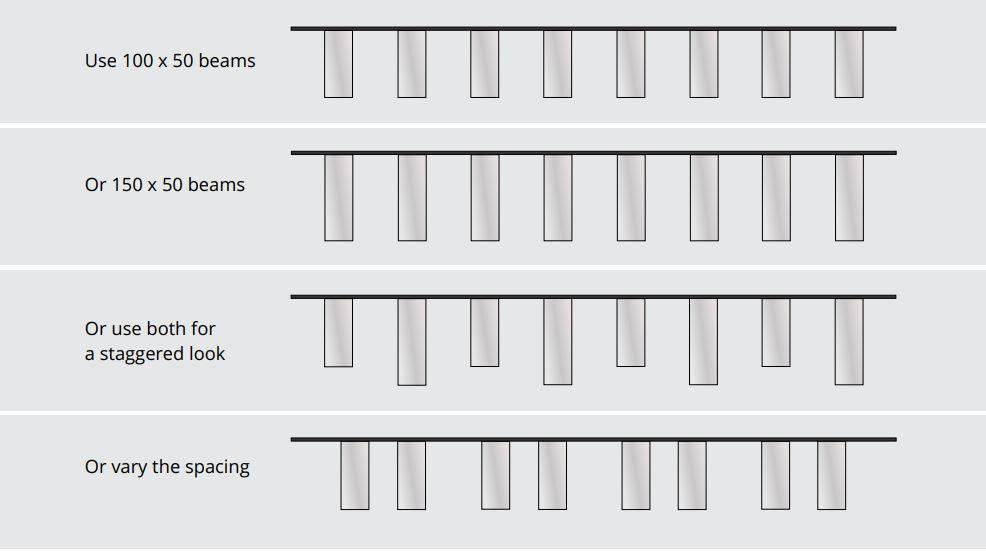

Beam size | 50 mm (width) x 50 mm (height). 50 mm (width) x 100 mm (height). 50 mm (width) x 150 mm (height). Manufacturer guidanceCustom sizes available. Contact manufacturer for details. |
Beam length | 6500 mm. Manufacturer guidanceCustom sizes available. Contact manufacturer for details. |
Applied finish | Powder-coated (Supametal Aluminium Solid Colour Finish). |
Colour and finish | Antimicrobial White Satin. Asteroid Pearl Matt. Bronze Pearl Matt. Dark Grey Matt. Ebony Matt. Flat White Matt. Lunar Grey Matt. Monument MKII Satin. Natural Shimmer Flat Matt. Nobel Silver Pearl. Pearl White Matt. Scintillating Champagne Matt. Manufacturer guidanceOther powder-coated colours are available for quantities over 50 m². Extra lead times and charges apply. Contact manufacturer for details. |
Noise reduction coefficient | 0.80 (Sound Absorption Class C). Manufacturer guidanceNRC of 0.75 – 0.85 (Sound Absorption Class B - C) can be achieved when installed with Supabab acoustic backing. |
Backing | Open. 7 mm Supabab acoustic backing. 12 mm Supabab acoustic backing. |
Fire performance | Group 1. Group 2. Group 3. Manufacturer guidanceAluclick is fully non-combustible and can be used in areas under Fire Group 1, 2 or 3. Acoustic insulation is available for Fire Group 1. |
Joints | Butt joints to have proprietary Aluclick concealed end-to-end splice joiners. Manufacturer guidanceWhere building movement must be allowed for, provide up to 20 mm sliding joint. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | Fully recyclable. |
