4 Way Cassette Air Conditioning - 4-way Cassette air conditioning.

Verified by manufacturer over a year ago

R32 Deluxe Model - 7.1 kW Indoor Unit S - 6071PU3E

Panasonic Australia A/C Variant:

4 Way Cassette air conditioning unit with nanoe X features.

Jump to:
13 26 00 Website

Application

A ducted system that delivers air through ducting pipes into the rooms via vents on floors walls and ceilings. Suitably use for residential and commercial application.

Description

4-way direction airflow released through four flaps provides large powerful airflow and even cooling with its advanced fan motor and the Turbo Fan with Twisted 3D Blade. Design with a compact design and powerful airflow consisting of an outdoor unit and a concealed indoor unit. Some of its significant features include:

  • Large, powerful airflow and even cooling with an average of 30.7 m³ / minute.
  • 360° wide and comfortable airflow coming from the center sent farther and the air blown out of the larger side flaps spreads evenly throughout the room.
  • Long airflow, adding a sub flap, and widening the main flap has reduced turbulence and increased airflow. A wider angle jetting port allows the airflow to reach as far as five meters.

Design with 24-hour nanoe™ X air purification that can run independently from cooling or heating mode.

Product benefit:

  • Active deodorization.
  • Inhibition of hazardous substances.
  • Inhibition of mould, bacteria and viruses.
  • Inhibition of pollen and of major allergens.
  • Moisturizes and hydrates.

Can be controlled with a wired remote controller that offers integration and connects directly to a variety of Cloud base apps.

Available in the following types of panels.

  • Standard Type - CZ-KPU3H.
  • ECONAVI Type - CZ-KPU3A.

General information

Color

White

Size

-

Manufacturer guidance

7.1kW-14.0kW

Length

840 mm

950 mm

Manufacturer guidance

Small Chassis: Indoor 840 mm Panel: 950 mm

Large Chassis: Indoor 840 mm Panel: 950 mm

Width

840 mm

950 mm

Manufacturer guidance

Small Chassis: Indoor 840 mm Panel: 950 mm

Large Chassis: Indoor 840 mm Panel 950 mm

Height

256 mm

Guidance for specification option:

Small Chassis: Indoor 256 mm

33.5 mm

Guidance for specification option:

Small Chassis: Outdoor: 33.5 mm

Large Chassis: Outdoor: 33.5 mm

319 mm

Guidance for specification option:

Large Chassis: Indoor 319 mm

Warranty description

Five year

Uniclass

Ss_65_80_45_72 Room air conditioning systemsPrimary

NATSPEC National Classification System

0702 Mechanical Design and Install

0721 Packaged Air Conditioning

0722 Room Air Conditioners

SpecPack

15782 Air Conditioning - Packaged Units

SpeedSpec

15738 Domestic Air-Conditioning

Specification data - Room air conditioning systems

System performance

7.1 - 14.0 kW.

Air ductwork and accessories

-

Ductwork

Flexible ductwork

Manufacturer guidance

Maximum duct length is..

Description

Panasonic ducted air conditioning system concealed indoor unit design with powerful airflow.

Dimensions

256 H x 840 W x 840 D mm.

Guidance for specification option:

Concealed indoor unit size.

33.5 H x 950 W x 950 D mm.

Guidance for specification option:

Exposed indoor panel size.

TotalCoolingCapacity

7.1 - 14.0 kW.

HeatingCapacity

8.0 - 16.0 kW.

Energy rating

4.06 - 3.41

Power input

240V- 1Phase.

Power supply

AC.

Acoustic performance

60 dBA.

Volume

68 - 99 L/s.

Length

5 - 85 m.

RefrigerantClass

R 32.

PipeConnection

9.52 - 15.88 mm.

Controller

Remote included.

PowerSource

240V- 1Phase.

Sustainability data

Country of material origin

Malaysia

Country of product manufacture

Malaysia

Literature

Brochure Panasonic Comfort Cloud app

Brochure Panasonic Comfort Cloud app

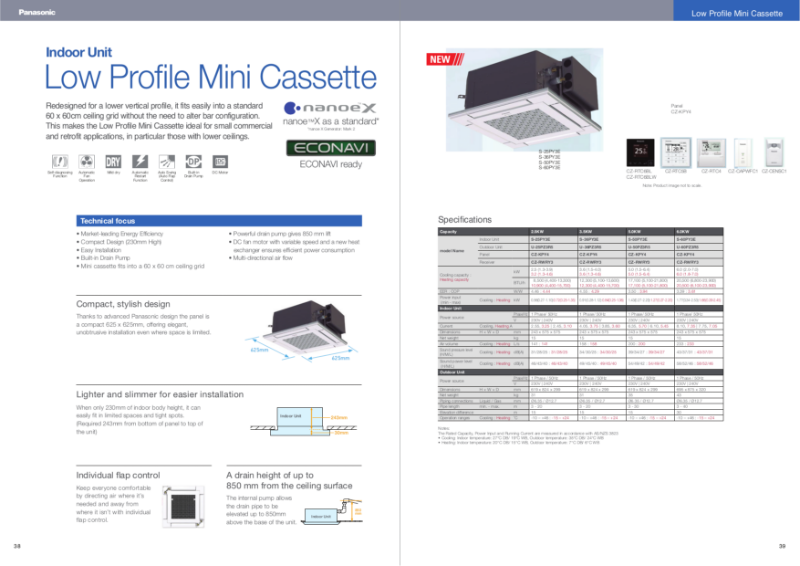

Low Profile Mini Cassette Data Sheet
