16.0 kW High Static Pressure Ducted Air Conditioning - Ducted air conditioning unit

Verified by manufacturer over a year ago

R32 Deluxe Model - 16.0kW Outdoor Unit U-160PZH2R5

Panasonic Australia A/C Variant:

16.0 kW High static and large airflow ducted air conditioning unit, with nanoe™ X air purification.

Jump to:
13 26 00 Website

Application

A ducted system that delivers air through ducting pipes into the rooms via vents on floors walls and ceilings. Suitably use for residential and commercial application.

Description

A high static and large airflow ducted, with a compact design and powerful airflow consisting of an outdoor unit and a concealed indoor unit. Some of its significant features include:

  • Flexible and easy to install.
  • Auto fan operation.
  • Quiet operations.
  • Automatic restart function.
  • Dry mode.
  • Self-diagnosing function.
  • Can be controlled with an intuitive voice control device.
  • Energy-saving.
  • Blue fin technology anti-corrosion fetaure.

Design with 24-hour nanoe™ X air purification that can run independently from cooling or heating mode.

Product benefit:

  • Active deodorisation.
  • Inhibition of hazardous substances.
  • Inhibition of mould, bacteria and viruses.
  • Inhibition of pollen and of major allergens.
  • Moisturises and hydrates.

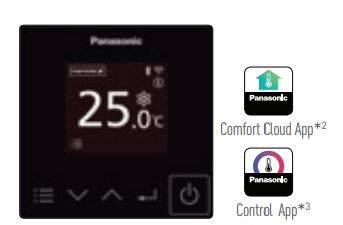

Can be controlled with wired remote controller that offers integration and connects directly to a variety of Cloud base apps.

General information

Color

White

Size

-

Manufacturer guidance

16.0 kW.

Length

700 mm

Guidance for specification option:

Indoor: 700 mm

340 mm

Guidance for specification option:

Outdoor: 340 mm

Width

1200 mm

Guidance for specification option:

Indoor: 1200 mm

940 mm

Guidance for specification option:

Outdoor: 940 mm

Height

430 mm

Guidance for specification option:

Indoor: 430 mm

1500 mm

Guidance for specification option:

Outdoor: 1500 mm

Warranty description

Five year

Uniclass

Ss_65_80_45_72 Room air conditioning systemsPrimary

NATSPEC National Classification System

0722 Room Air Conditioners

0721 Packaged Air Conditioning

0702 Mechanical Design and Install

SpecPack

15782 Air Conditioning - Packaged Units

SpeedSpec

15738 Domestic Air-Conditioning

Specification data - Room air conditioning systems

System performance

16.0 kW.

Air ductwork and accessories

-

Ductwork

Flexible ductwork

Manufacturer guidance

Maximum duct length is..

Description

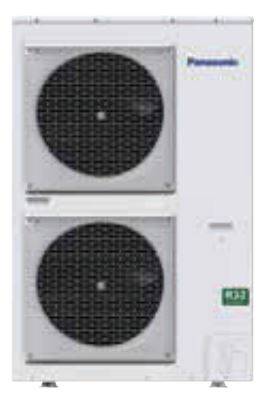

Panasonic Air conditioning system Deluxe Outdoor Units features energy efficiency and space saving technologies, with powerful performance that allows installation even in tight spaces.

Dimensions

1500 H x 980 W x 370 D mm.

TotalCoolingCapacity

16.0 kW.

HeatingCapacity

18.0 kW.

Energy rating

3.26 W/W.

Power input

240V (1 Phase).

Power supply

AC.

Acoustic performance

51 dBa.

Volume

2738 L/s

Length

5 - 75 m.

RefrigerantClass

R 32.

PipeConnection

9.52 - 15.88 mm.

Controller

Remote included.

PowerSource

240V - 1Phase.

Operating temperature range

-15°C - 46°C

Sustainability data

Country of material origin

Malaysia

Country of product manufacture

Malaysia

Literature

Brochure Panasonic Comfort Cloud app

Brochure Panasonic Comfort Cloud app

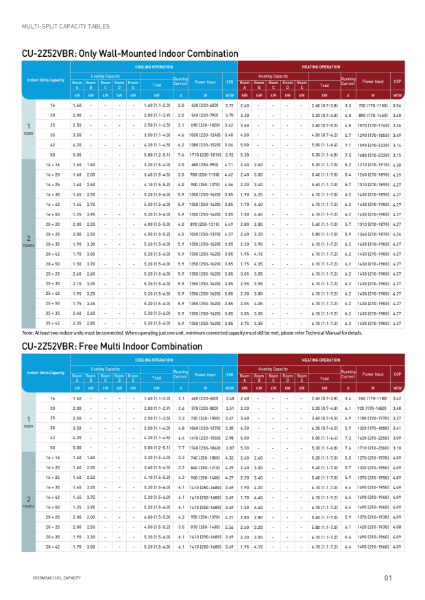

Multisplit Capacity Table

Multisplit Capacity Table

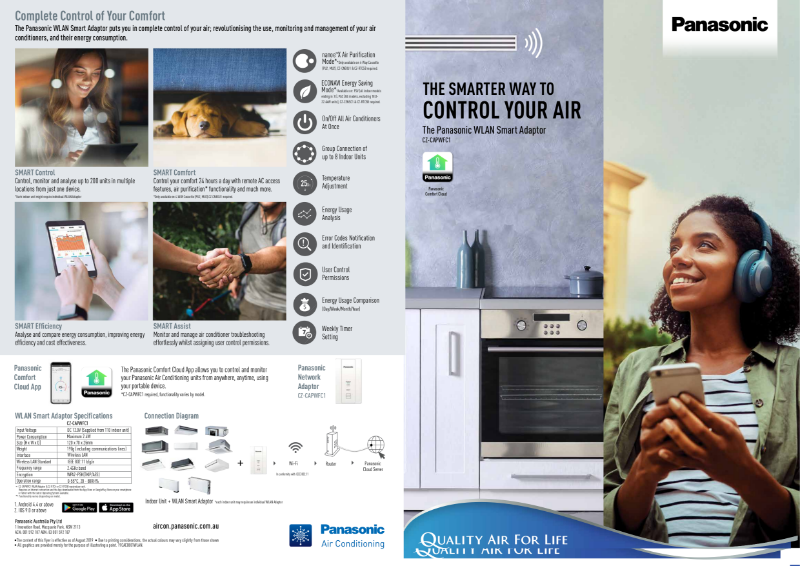

Panasonic CAC WiFi Solutions
