150 Half Round Gutter (COLORBOND® Steel)
Verified by manufacturer over a year ago
ZINCALUME® Steel
ZINCALUME® Steel
Easy to keep clean gutter. Available in SA, NSW and VIC only.
Application
Suitable for domestic and light industrial buildings. Available in South Australia, New South Wales and Victoria only.
AUSTRALIAN STANDARDS
Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.
Fielders steel products comply with:
- AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
- AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
- AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.
Description

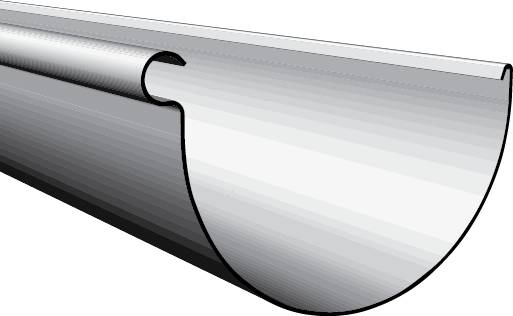

150 Half Round Gutter is an easy to keep clean gutter suitable to a range of applications. Some of its features include:
- Very little debris left due to profile shape.
- Available in a range of colours and finishes.
- Easy to install.
General information
Material | Steel. |
Shape | Crescent |
Width | 150 mm Manufacturer guidanceDiameter. |
Height | 105 mm |
Warranty description | 20 years. Manufacturer guidanceCovered by BlueScope material warranties. All COLORBOND® steel gutters have a warranty of up to 20 years, subject to project assessment and terms and conditions. |
Uniclass | |
SpecPack | 07310 Slate Roofing 07320 Tile Roofing 07410 Insulated Roof and Wall Panels 07600 Metal Roofing, Siding and Roof Plumbing |
SpeedSpec | 07610 Roofing and Roof Plumbing |
NATSPEC National Classification System | 0428 Roofing – Insulated Panel Systems 0427 Roofing - Tiles 0426 Roofing - Slate 0423 Roofing – Profiled Sheet Metal 0421 Roofing - Combined |
Specification data - Galvanized steel eaves gutters
Standard | To AS 1397 and AS/NZS 2179.1. |
Size (nominal width) | 150 mm.Manufacturer guidanceRefers to effective gutter width. |
Thickness or gauge | |
Cross sectional area of gutter ≤ 10 000 mm² | 0.50 mm.Manufacturer guidanceRefers to metal gauge of gutter profiles less than 10 000 mm². |
Corrosion protection | |
Class | AM125. |
Finish | Natural. |
Colour | Standard ZINCALUME steel colour. |

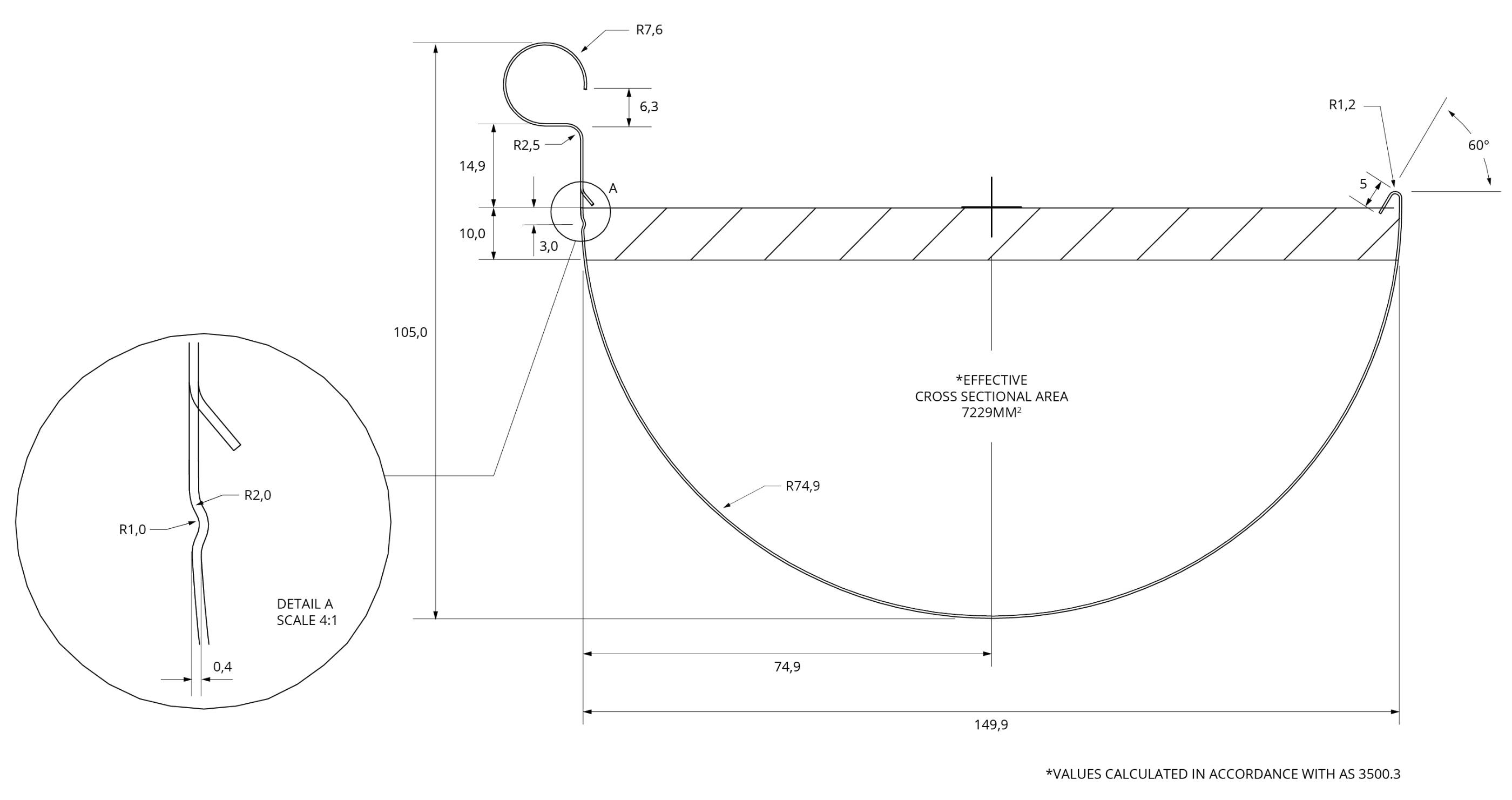

CrossSectionArea | 7229 mm². Manufacturer guidanceRefers to Effective Cross Sectional Area (ECA). ECA is 10 mm below the overflow level. |
Height | 105 mm. |
Length | Manufacturer guidanceSheets are supplied custom cut to length to suit project requirements. Transportation limits apply. |
Material | ZINCALUME® steel. |
Brackets | External Half Round Bracket. Manufacturer guidanceBrackets or straps should be spaced at 1.2 m centres. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100% Recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % Manufacturer guidanceMaximum value only. Product is made with 15–20% recycled content. |
