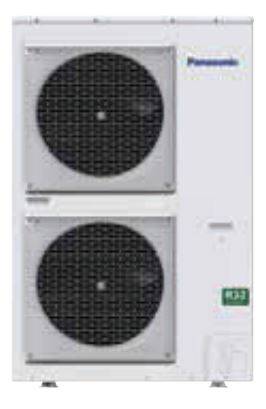

12.5 kW High Static Pressure Ducted Air Conditioning - Ducted air conditioning.
Verified by manufacturer over a year ago
R32 Deluxe Model - 12.5 kW Indoor Unit S-125PE3R
R32 Deluxe Model - 12.5 kW Indoor Unit S-125PE3R
12.5 kW High static and large airflow ducted air conditioning unit, with Nanoe™ X air purification.
Application
A ducted system that delivers air through ducting pipes into the rooms via vents on floors walls and ceilings. Suitably use for residential and commercial application.
Description
A high static and large airflow ducted, with a compact design and powerful airflow consisting of an outdoor unit and a concealed indoor unit. Some of its significant features include:
- Flexible and easy to install.
- Auto fan operation.
- Quiet operations.
- Automatic restart function.
- Dry mode.
- Self-diagnosing function.
- Can be controlled with an intuitive voice control device.
- Energy-saving.
- Blue fin technology anti-corrosion fetaure.
Design with 24-hour Nanoe™ X air purification that can run independently from cooling or heating mode.
Product benefit:
- Active deodorisation.
- Inhibition of hazardous substances.
- Inhibition of mould, bacteria and viruses.
- Inhibition of pollen and of major allergens.
- Mouisturises and hydrates.
Can be controlled with wired remote controller that offers integration and connects directly to a variety of Cloud base apps.
General information
Color | White |
Size | Manufacturer guidance12.5 kW. |
Length | 700 mm Guidance for specification option: Indoor: 700 mm 340 mm Guidance for specification option: Outdoor: 340 mm |
Width | 1200 mm Guidance for specification option: Indoor: 1200 mm 940 mm Guidance for specification option: Outdoor: 940 mm |
Height | 430 mm Guidance for specification option: Indoor: 430 mm 1416 mm Guidance for specification option: Outdoor: 1416 mm |
Warranty description | Five year |
Uniclass | |
NATSPEC National Classification System | 0722 Room Air Conditioners 0721 Packaged Air Conditioning 0702 Mechanical Design and Install |
SpecPack | 15782 Air Conditioning - Packaged Units |
SpeedSpec | 15738 Domestic Air-Conditioning |
Specification data - Room air conditioning systems
System performance | 12.5 kW. |
Air ductwork and accessories | |
Ductwork | Flexible ductworkManufacturer guidanceMaximum duct length is: |
Description | Panasonic ducted air conditioning system concealed indoor unit design with powerful airflow. |
Dimensions | 430 H X 1200 W X 700 D mm. |
TotalCoolingCapacity | 12.5 kW (3.2 - 14.0). |
HeatingCapacity | 14.0 kW (3.2 - 16.0). |
Energy rating | 3.57 W/W. Guidance for specification option: Cooling EER / COP rating. |
Power input | 240 V - 1 Phase. |
Power supply | AC. |
Volume | 2087 L/s. Guidance for specification option: Air volume. |
Acoustic performance | 69 dBA (silent mode). |
Length | 5 - 75 m. |
RefrigerantClass | R 32. |
PipeConnection | 9.52 - 15.88 mm. |
Operating temperature range | -15°C - 46°C. |
Controller | Remote included. |
PowerSource | 240 V - 1 Phase. |
Sustainability data
Country of material origin | Malaysia |
Country of product manufacture | Malaysia |
