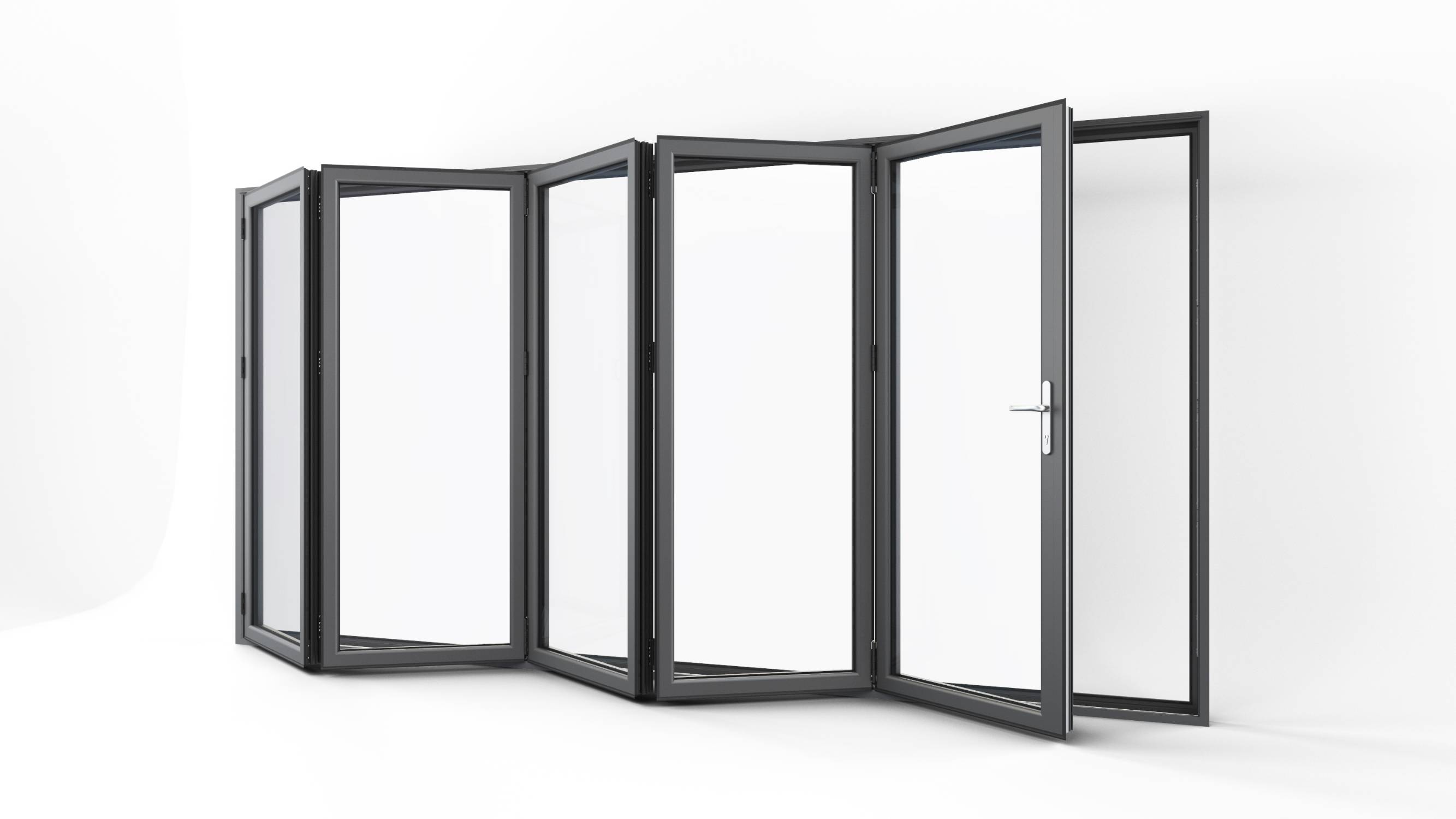

PURe® FOLD Folding Door

Verified by manufacturer 2 months ago

Senior Architectural Systems Ltd Third party certifications:
  • UKAS

    UKAS

    Certificate type

Aluminium folding door.

Jump to:
+44 (0)1709 772600 Website

Application

When used on projects involved in a BREEAM assessment, or within the Code for a Sustainable Built Environment and the Code for Sustainable Homes (which therefore involves the Green Guide to specification) can offer significant benefits. Consult manufacturer for details.

Description

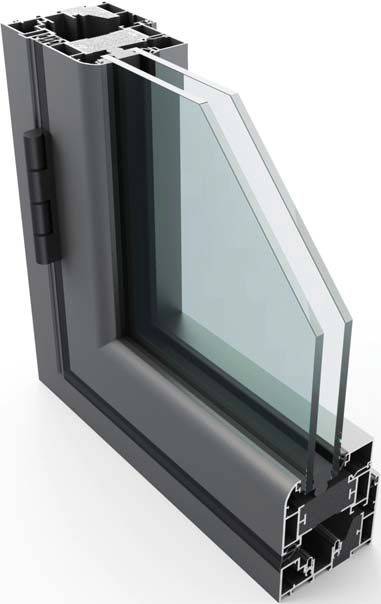

The PURe® Fold door range is a suite of aluminium swing and folding doors with an innovative, enhanced thermal barrier manufactured from expanded polyurethane (PUR), allowing ultra-low U-values to be achieved.


Designed for maximum style and performance, the doors complement the PURe® window range and are fully compatible with all Senior windows and curtain walling.

The door is constructed using mitred corners, joined with mechanical cleats; alignment chevrons assist in clean, accurate mitres. A proprietary sealant is used on all metal joints in line with good practice.


Available pre-finished in an almost unlimited range of colours and finishes both inside and out, with a choice of configurations and sizes. All configurations have excellent weather performance and further thermal enhancement is available. With a life expectancy in excess of 40 years, the range is 100% recyclable and will easily exceed current and meet future building regulations.


Features and benefits:

  • Double or triple glazed units, up to 48 mm for maximum thermal and acoustic performance.
  • Innovative PUR thermal break for unbeatable performance.
  • Narrow sightlines.
  • Easy to adjust and install.
  • Tested to BS 6375-1, -2 and-3, Annex A.
  • PAS 24 rated. Q-Mark fully certified.
  • Backer rod and expanded polystyrene (EPS) insert available for improved thermal performance.
  • High tech roller design for years of trouble-free operation.
  • The jointing method of head and sill allows thermal breaks to always line through with door sash for thermal efficiency.
  • Adjustable locking points for easy locking and weatherproof seal.
  • Same sightlines and sections for inline sliding and standard duty lift and slide doors.
  • Constructed using mitred corners with alignment chevrons to assist in clean, accurate mitres.
  • No need for complicated drainage preps to outer-frame track.
  • Mechanical corner cleats for ease of fabrication.
  • Adjustable locking points and rollers for quick and easy installation.
  • High-performance polyurethane thermal barrier giving U-values as low as 0.97 W/m²K when calculated as a CEN Standard door (48 mm triple glazed unit, 2000 x 2180 mm).
  • Also available as matching double/ single swing doors (specified separately).
  • Polyamide thermal barriers are manufactured in accordance with PA66 GF25.
  • Gaskets are manufactured in accordance with BS 3734.

General information

Color

-

Manufacturer guidance

Available pre-finished in a wide range of colours and finishes both inside and out.

Finish

Anodized

Powder-coated

Material

Aluminium

Guidance for specification option:

All aluminium sections are extruded using Aluminium Alloy 6060 or 6063 T6 to BS EN 755-9:2008 or BS EN 12020-2.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

H11/135 Doors

L20/520 Sliding doors

L20/540 Sliding folding doors

Product range

PURe® FOLD Door System

Specification data - Sliding door and partition sets

Arrangement

Open out.

Open in.

Door leaves

-

Construction

The door is constructed using mitred corners, joined with mechanical cleats. A proprietary sealant is used on all metal joints.

Finish and colour

Anodized.

Guidance for specification option:

Insert colour requirements, 25 µm (minimum), satin or polished finish available.

Polyester powder coated.

Guidance for specification option:

Insert colour requirements, 40 µm standard and 60 µm available for marine environments.

Manufacturer guidance

A full range of standard RAL colours is available, along with colour match for a bespoke solution. Dual colour, with different colours on the exterior and interior surfaces, is available.

Operation

Manual.

Glazing

Double.

Triple.

Manufacturer guidance

28–48 mm thickness available, consult the manufacturer for details and insert requirements.

Dimensions

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Typical sizes (maximum):

  • Door leaf width: 1000 mm.
  • Door leaf height: 2616 mm.
  • Outer frame width: 6000 mm.
  • Outer frame height: 2700 mm.
  • Weight per door leaf: 100 kg.


Internal frame

As exterior.

Anodized.

Guidance for specification option:

Insert colour requirements, 25 µm (minimum), satin or polished finish available.

Polyester powder coated.

Guidance for specification option:

Insert colour requirements, 40 µm standard and 60 µm available for marine environments.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100%

Third party certifications

UKAS

UKAS

ISO 14001

UKAS

UKAS

ISO 45001

UKAS

UKAS

ISO 9001

Literature

Introduction to Senior Architectural Systems Brochure

Introduction to Senior Architectural Systems Brochure

SAS BREEAM Brochure

SAS BREEAM Brochure

SAS CPD Seminars 2023

SAS CPD Seminars 2023

SAS Featured Projects Brochure

SAS Featured Projects Brochure

SAS Accommodation Brochure

SAS Accommodation Brochure

SAS Commercial Brochure

SAS Commercial Brochure

SAS Education Brochure

SAS Education Brochure

Similar products from Senior Architectural Systems Ltd

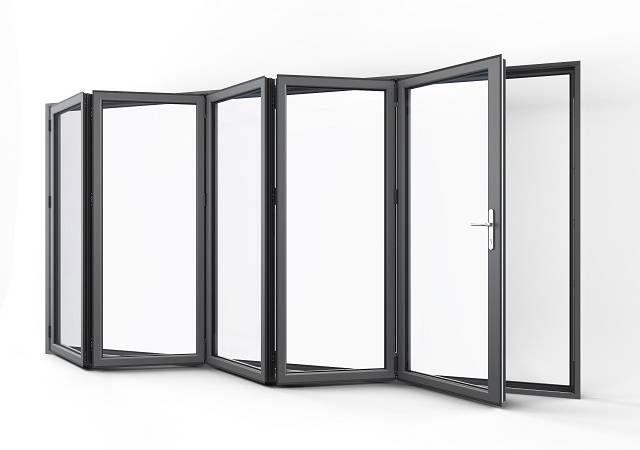

Ali FOLD Folding Door System

Ali FOLD Folding Door System

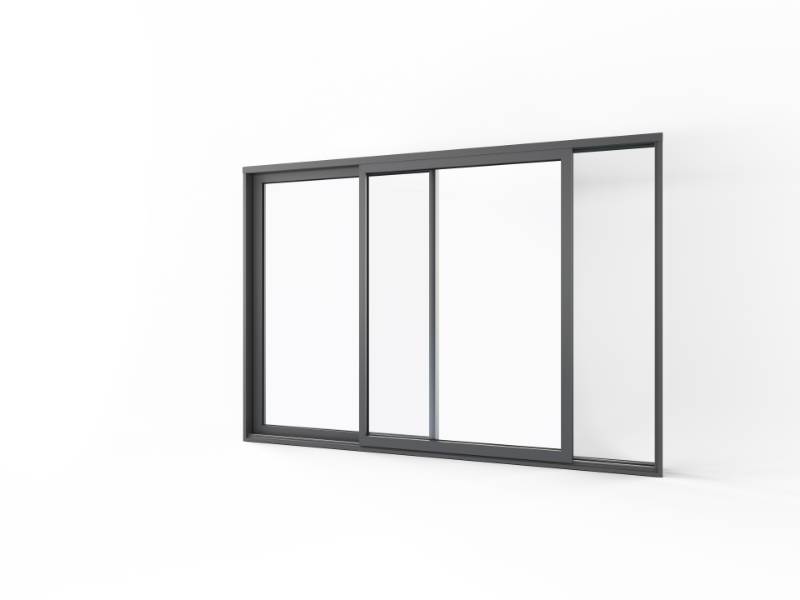

Ali SLIDE Inline Sliding Door

Ali SLIDE Inline Sliding Door

PURe® Slide Inline Sliding Door

PURe® Slide Inline Sliding Door

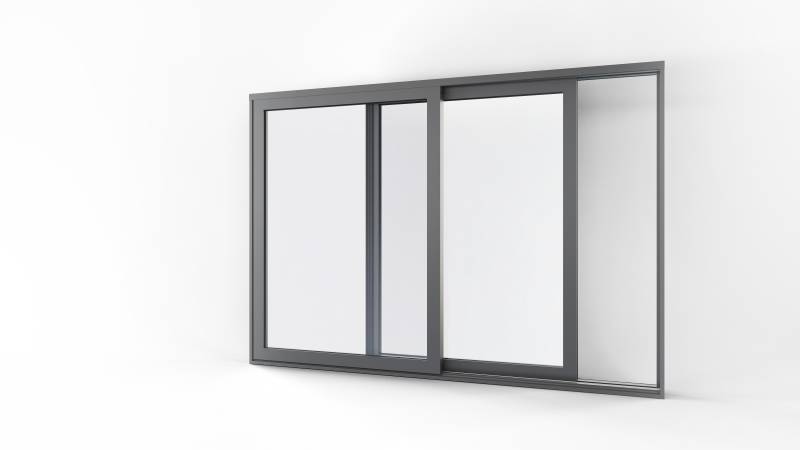

PURe® Slide Lift & Slide Door
