VIGIL3 Charger Module

Verified by manufacturer 4 months ago

Baldwin Boxall Communications Ltd

VIGIL3 charger module, fits alongside the VIGIL3 amplifiers in a 2U mainframe.

Jump to:
BOS
+44 (0)1892 664422 Website

Description

The VIGIL3 charger module is compact and fits alongside the VIGIL3 amplifiers whilst monitoring the power supplies within it. One charger is needed per five amplifiers and the charger continuously monitors the power supplies in the amplifier modules.


Features and benefits:

  • Small-sized battery.
  • Continually monitors the power supplies in five amplifier modules.
  • Charges backup batteries automatically.
  •  lighter weight.
  • Sleep mode included.
  • Touch screen and microphone control available will work with a number of amplifiers.

General information

Color

Black

Finish

Powder-coated

Length

299 mm

Width

69 mm

Height

75 mm

Warranty description

Seven year

Uniclass

Pr_75_75_94_98 Voice alarm power supply unitsPrimary

CAWS

W53/380 Power supply units

W53/380 Power supply units

Specification data - Voice alarm power supply units

Standard

To BS EN 54 and BS 5839.

Rated voltage

30 V.

Output voltage

24 V.

Battery charger

-

Operation

27.35 V.

Controls

-

Display type

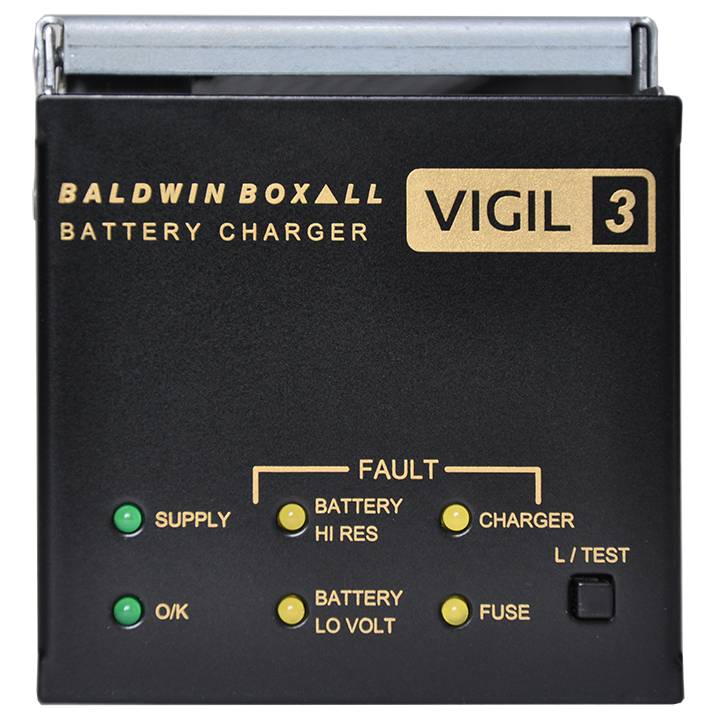

LEDs mounted on front panel.

Display the following conditions

Supply, OK, Batt Hi Res, Batt Low Volt, charger and fuse.

Enclosure

-

Finish

Powder coated.

Colour

Black.

Ingress protection (minimum)

IP30.

Guidance for specification option:

As a system.

Mounting method

Mainframe.

Charging voltage

27.35 V at 20°C.

Temperature

-48 mV/°C.

Manufacturer guidance

Temperature compensation.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1
