SSH Hexagon Head Connector Screw Impreg + Service Class 3

Name: SSH Hexagon Head Connector Screw Impreg + Service Class 3
Brand: Simpson Strong-Tie
SKU: g7A5vPrhMGKhrrH88935kR

Verified by manufacturer 4 months ago

SSH Woodscrew 6.0x40 HEX IMPREG+ 100PCS

Simpson Strong-Tie

Third party certifications:

DoP
Certificate type

Wood screws for use with connectors where high load capability is required.

Jump to:

01827 255 600 Website

Application

Assemblies: Connectors to wood.
Common applications: Fixing connectors to timber.
Suitable for outdoor applications.

Description

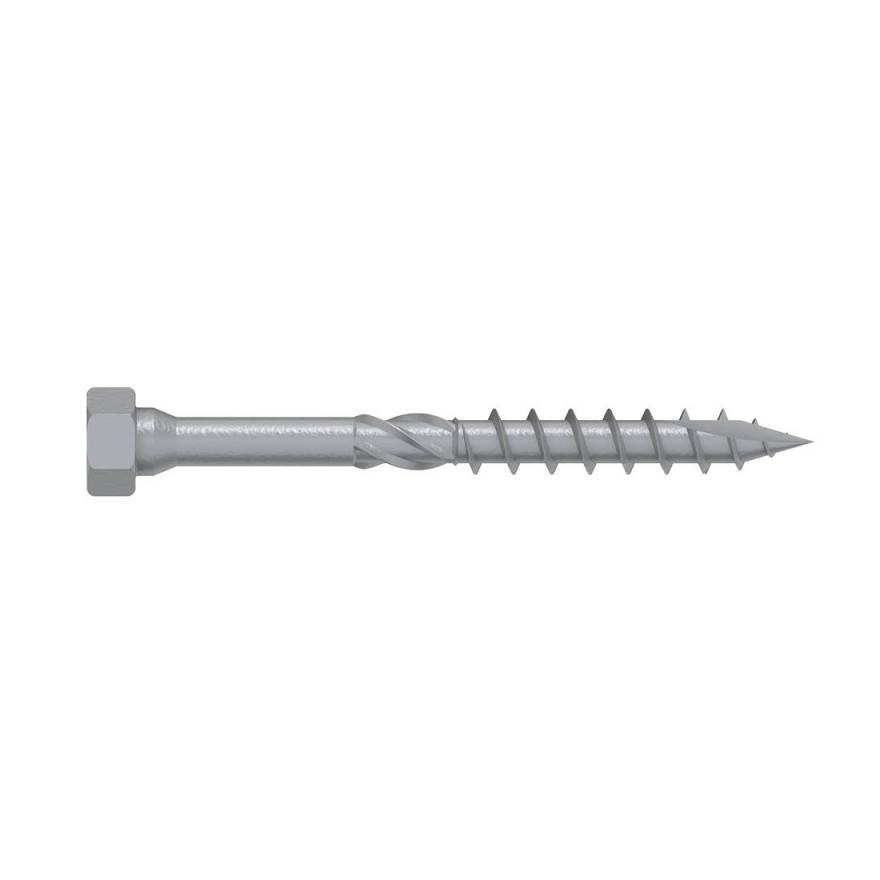

SSH is used together with connectors where high load capability is required. The conical shape under the head ensures full contact with the connector, creating a firm assembly. The superior Impreg®+ coating makes the screw suitable for exterior use. The type 17 cut point prevents timber from splitting, and the milling thread and serrated thread reduce the insertion torque. SSH has both six lobe drive and a hexagonal head, enabling installation both with torx bits or hex wrench.

Features and benefits:

Steel with Impreg®+ coating.
CE marked to EN 14592.
Hex head with integrated six lobe drive.

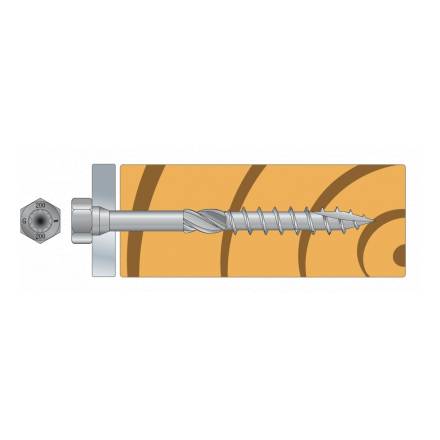

Conical shape under the head for secure fit in connector holes.
No predrilling required.
Milling thread reduces insertion torque.
Type 17 point prevents splitting of timber.

General information

Color	Silver
Finish	Coated
Material	Steel
Shape	Other
Length	40 mm 50 mm 60 mm 75 mm 80 mm 90 mm 100 mm 120 mm 140 mm 160 mm 180 mm 200 mm 240 mm 260 mm 280 mm 300 mm Show more
Width	6 mm 8 mm 10 mm 12 mm
