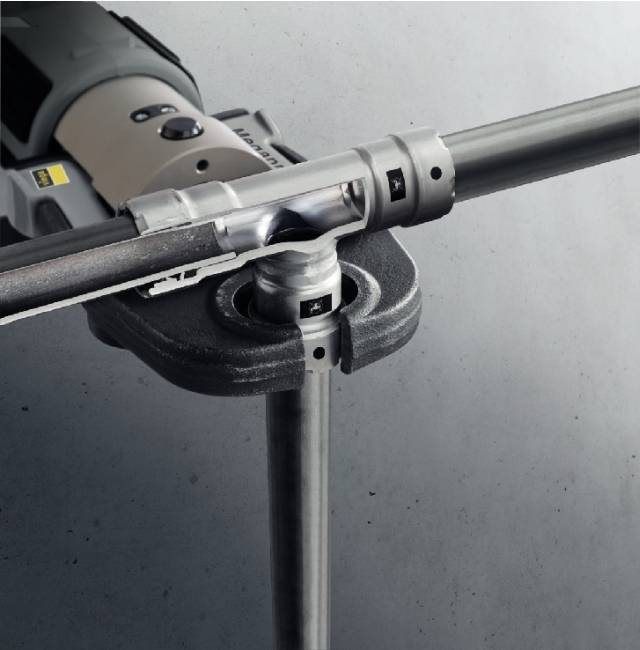

Megapress - Thick steel pipe press connections

Flow optimised, press connector fittings up to 4”, with connectors manufactured from non-alloy steel 1.0308 for seamless, welded, galvanized, epoxy resin coated, industrially painted, steel pipes (medium/heavy) in accordance with DIN EN 10255 (BS 1387) and DIN EN 10220. The fittings shall be supplied and manufactured by Viega and may only be pressed with Viega press machines (e.g. Pressgun 6+ or Pressgun Picco 6+).

Sealing element:

A cutting ring, a separator ring and an EPDM (polished black) profile sealing element are included in the bead of the press connector. The cutting ring cuts into the pipe during pressing and ensures a force-locked connection.

During insertion of the pipe, and later during the pressing, the separator ring protects the sealing element from damage.

Press connectors:

The press connectors are equipped with the Viega SC-Contur, which is a safety technology approved by Kitemark, and ensures that the connection is guaranteed to be leaking in an unpressed state. In this way, inadvertently unpressed connections are noticed immediately during a leakage test.

The connectors may only be pressed with Viega press machines with constant pressing force (e.g. Pressgun 6 Plus).

Viega guarantees that unpressed connections are visible during a leakage test:

• With the wet leakage test in the pressure range from 0.1–0.65 MPa (1.0–6.5 bar).
• With dry leakage test in the pressure range from 22 hPa–0.3 MPa (22 mbar–3.0 bar).

Operating conditions

Operating temperature max. 110 °C / 230 °F

Operating pressure max. 1.6 MPa (PN16) / 1600 kPa / 16 bar / 232 PSI

Press connector material

Steel 1.0308 Silicon bronze: CC246E / CuSi4Zn9MnP

Protection against external corrosion

Thanks to a zinc-nickel coating the press connectors are optimally protected against corrosion – e.g. when condensation forms in cooling systems. The pipe being used should be protected with suitable corrosion prevention – observe manufacturer's information. Pipes and pipe connectors should be insulated in the same way in accordance with the general rules of engineering.

Viega Megapress fittings are offered in +200 configurations, including:

• Elbows.
• Couplings.
• Reducers.
• Tees.
• Reducing tees.
• Threaded adapters.
• Unions.

Features and benefits:

• Up to 80% less assembly time in comparison with other conventional connecting methods, such as welding or threaded and groove connections.
• Economical due to high time-saving during installation.
• Fire-proof, as flames and flue gases are not produced with cold press technology.
• Universal use. Presses thick-walled steel pipes, irrespective of whether the pipe is seamless, welded, uncoated, galvanized or resin-varnished.
