Hudevad Integral Bench - Radiator

Verified by manufacturer 2 months ago

Hudevad Radiator Design A/S Third party certifications:
  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

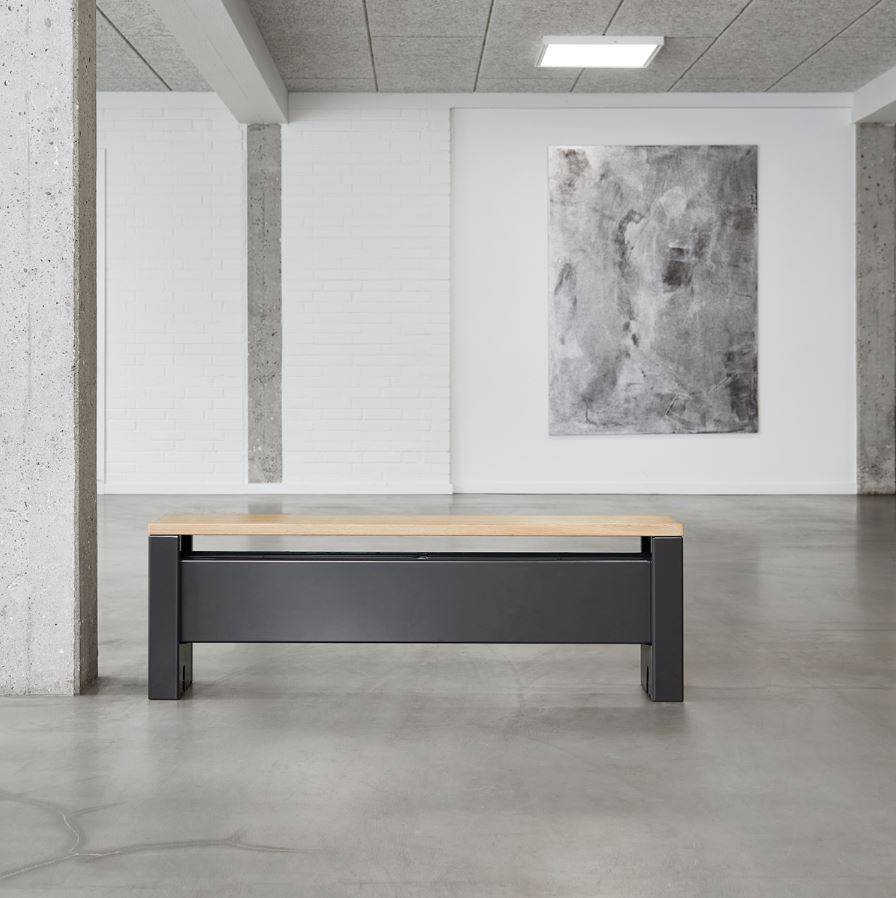

Floor-mounted bench radiator with flat front and back.

Jump to:
+44 (0)24 7688 1200 Website

Application

Suitable for use in restaurants, school institutions, health care, private residences, or workplaces.

Description

The Integral Bench is not only a radiator, but also a piece of furniture. All radiator parts, including pipes and valves are hidden in the legs. Integral Bench is a suitable solution for the minimalist style and can be used in restaurants, school institutions, health care, private residences, or workplaces. Can be supplied with several options for wood cladding on top.


Features and benefits:

  • Pre-treatment by degreasing and passivation.
  • Powder coated in accordance with DIN 55900, EN 442.
  • Max operating pressure 10 bar.
  • 1.20 mm steel panels according to EN 10051.
  • Steel panel (heating element) according to EN 442.
  • Side panels in 3 mm steel plate.

General information

Color

Grey

Other

Finish

Powder-coated

Lacquered

Material

Steel

Wood

Shape

Rectangle

Length

1090 mm

1290 mm

1490 mm

1690 mm

1890 mm

Show more

Width

228 mm

Height

426 mm

Warranty description

Ten year

Uniclass

Pr_70_60_36_73 RadiatorsPrimary
Pr_40_30_29_84 Street and site benches

CAWS

T90/465 Radiators

Q50/220 Benches

T90/465 Radiators

Q50/33 Benches

Specification data - Radiators

Standards

To BS EN 442-1 and BS EN 442-2.

Radiator type

Bench.

Output

Guidance for specification option:

Consult manufacturer and insert requirements.

Finish

Powder-coated.

Guidance for specification option:

 In accordance with DIN 55900, EN 442.

Connections

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

All connections 1/2” standard.

Accessories

Not required.

Electrical socket integrated in side panel.

Casing

To EN 10051, 1.20 mm steel.

Heating element

To EN 442, steel panel.

Side panel

3 mm steel plate.

Bench

30 mm lacquered, solid beech.

Guidance for specification option:

Lacquered, oven-dried, solid beech in long blocks Bench top can also be supplied in oak at no additional charge. All bench tops are made with grade A building quality wood.


Please note, as wood is a natural material, there will be some natural variations in colour, dimensions and grain structure between bench tops and between the various wood types.

Colour

Grey RAL 7022, gloss 70.

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Can be painted in other colours. Insert requirements.

TestPressure

13 bar.

Operating pressure (maximum)

10 bar.

Operating temperature

95°C.

Height

426 mm.

Depth

228 mm.

Length

1090 mm.

1290 mm.

1490 mm.

1690 mm.

1890 mm.

Show more

Manufacturer guidance

Availability of lengths varies depending of chosen tapping configuration and height.

Tapping configuration

Tapping code 50.

Guidance for specification option:

Tapping type: E/F, no valve.

Tapping code 51.

Guidance for specification option:

Tapping type: E/F, with valve, right/left.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Denmark

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

Independent sustainability assessment

Independent sustainability assessment

Green Building Council Denmark

Literature

Integral Bench Data Sheet

Integral Bench Data Sheet

Case studies

Skejby Psychiatry Centre

Skejby Psychiatry Centre
