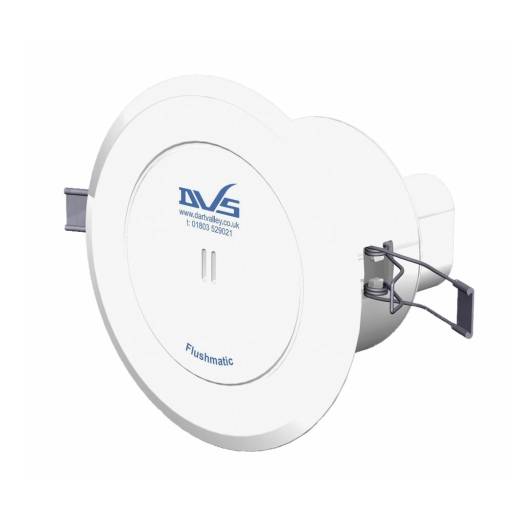

Flushmatic Downlighter Urinal Control

Verified by manufacturer over a year ago

UC01-001

KWC DVS Limited Variant:

The Flushmatic urinal control is used for multiple station urinals and can be surface or ceiling mounted, using a passive infrared (PIR) detector.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

Suitable for commercial and specialist applications, including the healthcare, mental healthcare, custodial and public sector markets.

Description

Offering substantial water savings and a short payback period, installing urinal controls is often the first step in a water management programme. Urinal controls also ensure that washrooms remain clean and fresh, by programming the controls to meet the individual needs of each building. Variable settings allow adjustable time delays between flushing, providing maximum efficiency and savings. Operation is simple; a passive infrared (PIR) detector detects movement within the ‘sensing area’, switching the unit into a timing mode. After a pre-set time, the separately installed solenoid valve opens. Water flows into the cistern and therefore activates the flushing cycle. The fill-time for the cistern can be customised by the user, using the appropriate switches on the Flushmatic board. The system’s fast fill design helps eliminate scale problems associated with slow or drip fed systems. An automatic flush every 12 hours is also programmed into the unit, should the system not be used during that time. Variable settings allow adjustable time delays between flushing providing maximum efficiency and savings.


The Flushmatic is available in four options:


- Flushmatic - Downlighter:

The Flushmatic downlighter is a suspended ceiling urinal control for multiple station urinals.

  • Timed urinal flushing.
  • Valve open button.
  • Ceiling or wall mountable.
  • Available in mains or battery.
  • Battery low detection and indication (optional).
  • Flush ceiling mounted.


- Flushmatic - Surface Mount:

The standard Flushmatic is a wall or ceiling ‘surface mounted’ urinal control for multiple station urinals.

  • Timed urinal flushing.
  • Valve open button.
  • Ceiling or wall mountable.
  • Available in mains or battery.
  • Battery low detection and indication (optional).
  • Flush ceiling mounted.


- Individual Control System:

The individual operation urinal control system can be supplied for single or double station urinals. Standard sensor comes with 50 mm bezel.

  • Single or double station urinal flushing.
  • Only flushes when user walks away from urinal.
  • Mains power only.


- Pearl:

The Pearl is a suspended ceiling urinal control for multiple station urinals. This unit is the size of a mini-downlighter and incorporates low battery indication.

  • Occupancy detection and indication (indicated by a flashing green light).
  • Battery low detection and indication (indicated by a flashing red and green light).
  • Valve closed before battery failure (indicated by a flashing red light until total battery loss).
  • Timed urinal flushing.
  • Valve open button.
  • Available in mains or battery.


Features and benefits:

  • Up to 80% savings on water costs.
  • Extremely reliable.
  • Low maintenance.
  • Low power consumption.
  • Solenoid valve included.
  • Includes power PSU or batteries.
  • Adjustable fill time (15 minutes maximum).
  • Adjustable delay time.
  • Janitorial flush (after 12 hours of non-use).
  • Pearl Retrofit Downlighter Urinal flush sensor - ceiling recessed, for banks of control of single urinals (Incorporates low battery warning lamp).

General information

Color

White

Grey

Finish

Semi-gloss

Material

Plastic

Shape

Circle

Length

128 mm

Width

128 mm

Height

86 mm

Warranty description

Two year

Guidance for specification option:

Two year guarantee.

Uniclass

Pr_75_50_46_31 Flush control devicesPrimary

CAWS

N13/315 Urinals and auto-flushing cisterns

N13/15 Urinals and cisterns

Product range

Urinal Controls

Specification data - Flush control devices

Operation

Occupancy sensor.

Accessories

None.

UC00-023.

Guidance for specification option:

Replacement fuse for Pearl - TR5 (T) 1.25 A.

UC00-024.

Guidance for specification option:

Replacement fuse for Flushmatic - TR5 (T) 1.6 A.

Battery operated individual controller

None.

AC17-005.

Guidance for specification option:

6 V DC ASCO Solenoid valve 6.7 mm orifice - 0–0.7 BAR - 15 mm.

AC17-006.

Guidance for specification option:

6 V DC ASCO Solenoid valve 12.7 mm orifice - 0.5–10 BAR - 15 mm.

UC07-003.

Guidance for specification option:

2 channel urinal control box.

Type

Flushmatic surface mount kit in grey - battery.

Urinal control system kits

None.

AC17-009.

Guidance for specification option:

Plastic valve (12 V DC) with 3 m cable and spade connectors.

PP00-100.

Guidance for specification option:

Urinal control system fuse - primary - 20 mm glass 240 V (T) 100 mA.

PP00-101.

Guidance for specification option:

Urinal control system fuse - secondary - TR5 (F) 500 mA.

UC07-001.

Guidance for specification option:

Urinal control system for 1 or 2 urinals (control box only).

Show more

Dimensions

128 x 128 x 86 mm.
