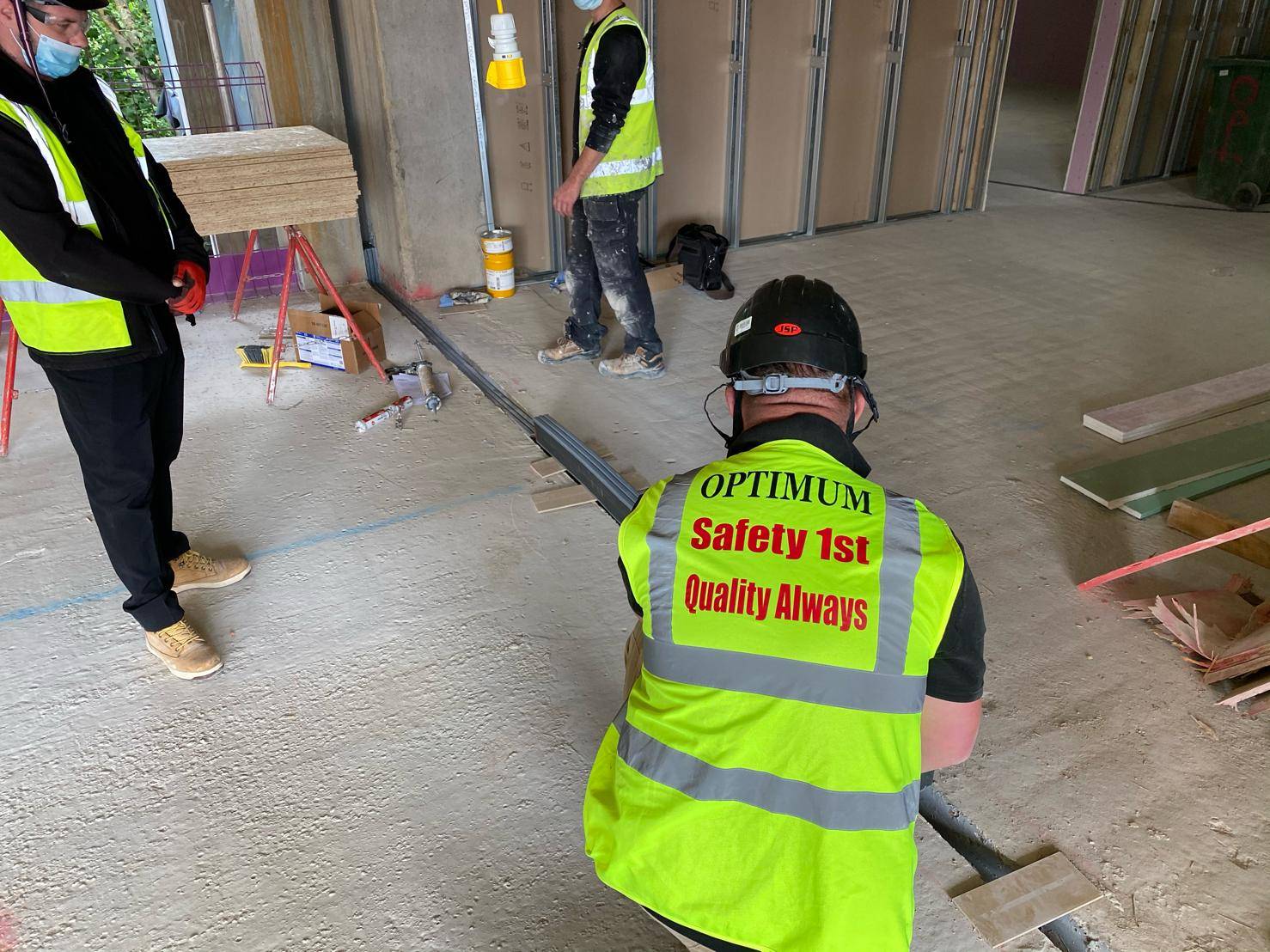

Fire Resistant Floor & Wall Movement Joints - Emshield DFR / WFR CE

Verified by manufacturer 5 months ago

Emshield DFR CE

NCC – Emseal Movement Joints Variant:
Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • LEED US

    LEED US

    Certificate type

  • Declare

    Declare

    Certificate type

Emshield DFR / WFR CE are fire resistant, watertight, structural movement joint sealing systems, CE marked up to 4 hrs, with good sound attenuation & thermal insulation. No mechanical fixings needed

Jump to:
BOS
+44 (0) 1257 266696 Website

Application

  • Emshield WFR CE is used to seal structural movement joints in both exterior and interior walls, where combinations of watertightness, fire-rating, sound attenuation and thermal-efficiency are required, especially for wide and high movement capability up to 100% of the joint width (+/- 50%), and with up to 4-hours fire resistance.
  • Emshield DFR CE is primarily used to seal structural movement / expansion joints in and between structural floor and deck slab, especially for wide (30 to 150mm or even more), and high movement capability, and with up to 4-hours fire resistance.
  • Emshield DFR CE and WFR CE eliminate the need for additional fire blankets, mineral wools, liquid sealants, cover plates, or any other fire stopping materials, joint sealants and insulation etc. The Emseal DFR-WFR-CE Systems provide unique and complete movement joint sealing solutions in many modern buildings and other facilities.

Description

Emshield DFR / WFR CE are CE-marked, ETA-certified, up to 4-hrs fire-rated, double-sided silicone-faced movement joints. They provide a watertight seal with 100% joint movement capability (+/- 50%), good sound attenuation, high and thermal insulation and long-term UV stability, for us within vertical (WFR) or horizontal (DFR) substrates, and with colour coordination possibilities.


The system includes water-repellant silicone sealing surfaces fully adhered to a fire-retardant impregnated foam backing. The symmetrical design allows either side to face out from an exterior or interior wall or floor/deck and to maintain a 1, 2, 3 or 4 hour fire resistance as required for the joints. The field-applied silicone bands ensure the face is completely watertight.


Each system profile is installed by fully bonding directly into the structural epoxy adhesive, which is field-applied to the prepared joint arrisses, with no mechanical fixings being required. Connections between each preformed section / piece are made using the field-applied intumescent sealant on the adjoining faces of the foam cross section, plus the field-applied silicone sealant continues across the join at the bellows’ edges.


Emshield DFR CE and WFR CE have been tested and certified in accordance with EN 1366-4, as well as EN 12154 and EN 12155 with no leakage with up to 1200 Pa of pressure. It also meets the requirements of ASTM E1966, ASTM E119 and ASTM E1399.


Features and benefits:

  • Watertight.
  • Fire resistant up to 4 hours.
  • Good sound attenuation.
  • Non-invasive anchoring (fully bonded).
  • Nominal joint sizes (Standard): 12–100 mm.
  • Factory-fabricated transitions (i.e. corners, upstands and cross sections etc.).
  • Joint movement capability up to 100% (+50% / -50% (100% total) of nominal material size (width) e.g. a nominal joint width of 100 mm sealed with Emshield DFR/WFR-CE, will safely accommodate up to 100mm movement from 50mm to 150mm, including frequent, cyclic movement. It can also accommodate movement in more than one plane.
  • Colour options

General information

Color

Manufacturer guidance

Available in a variety of different colors.

Finish

Silicone

Material

Silicone

Foam

Polyurethane (PUR)

Epoxy resin

Shape

Rectangle

Parallelogram

Square

Length

2000 mm

Width

Bespoke

Height

Bespoke

Warranty description

-

Manufacturer guidance

Standard or project-specific warranties are available from EMSEAL on request. This product can only perform its designed function if it, and the joint-gap into which it is installed, is sized to suit anticipated joint movements in consideration of the movement capability of the product and in consideration of the temperature at time of installation, and if it is installed in strict accordance with EMSEAL's installation instructions.

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

E40/545 Compressible sealing strip system

E40/545 Compressible sealing strip system

Specification data - Strip movement joints

Joint width

12 mm.

15 mm.

20 mm.

25 mm.

30 mm.

40 mm.

45 mm.

50 mm.

55 mm.

65 mm.

70 mm.

75 mm.

85 mm.

90 mm.

95 mm.

100 mm.

Manufacturer guidance

Depth of seal: 100 mm.

Edging

-

Material

Fire rated double sided silicone faced.

Colour

-

Manufacturer guidance

The silicone faces of Emshield DFR CE and WFR CE can be

manufactured in a variety of different colors to blend with their adjacent surfaces. They are available in a complete line of industry standard colors.

Insert

-

Material

Fire retardant impregnated foam.

Colour

Grey.

Reaction to fire

Class B-S2, d0.

Resistance to fire

1, 2, 3 and 4 hour.

Movement

100% seismic movement (+/- 50% of nominal supplied size).

Acoustic performance

Rs.w (C; Ctr): ≥54 (-1, -3).

Thermal Conductivity:

0.0623 W/m.K.

Water permeability

No leakage up to 1200 Pa of pressure.

Air permeability

No leakage up to 1200 Pa of pressure.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

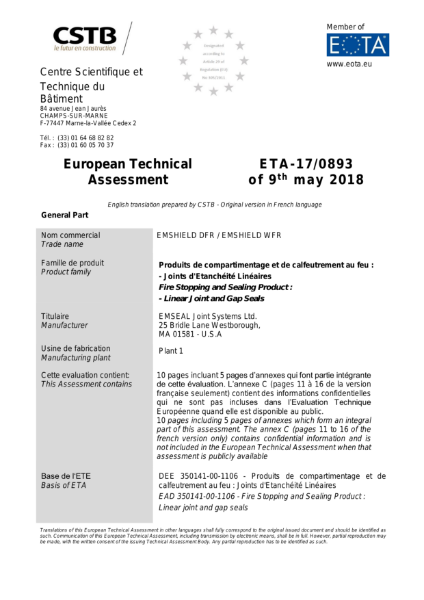

European Technical Assessment ETA-17/0893 - Emshield DFR-WFR-CE

LEED US

LEED US

LEED Rating Emshield DFR3-CE

LEED US

LEED US

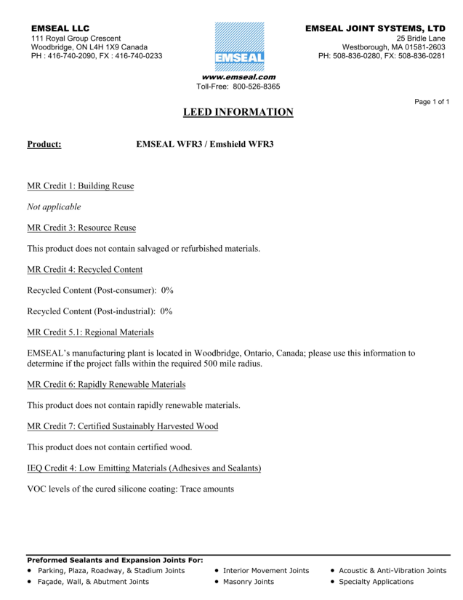

LEED Rating Emshield WFR3-CE

Declare

Declare

DoP-Emshield DFR/WFR-CE

Literature

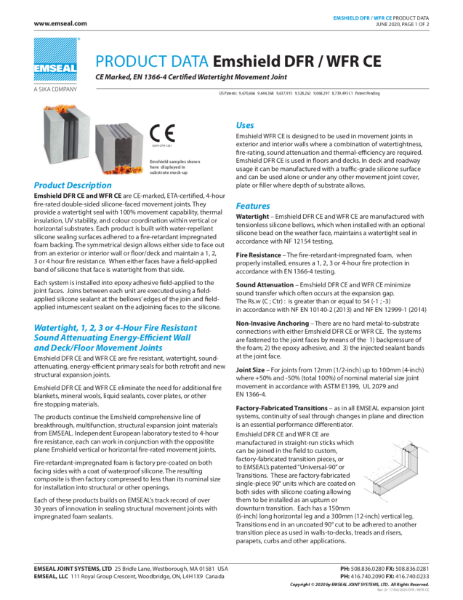

Emshield DFR-WFR CE Product Data Sheet

Emshield DFR-WFR CE Product Data Sheet

Emshield DFR / WFR CE Installation Guide

Emshield DFR / WFR CE Installation Guide

Emshield DFR / WFR CE - CE Declaration of Performance

Emshield DFR / WFR CE - CE Declaration of Performance

Case studies

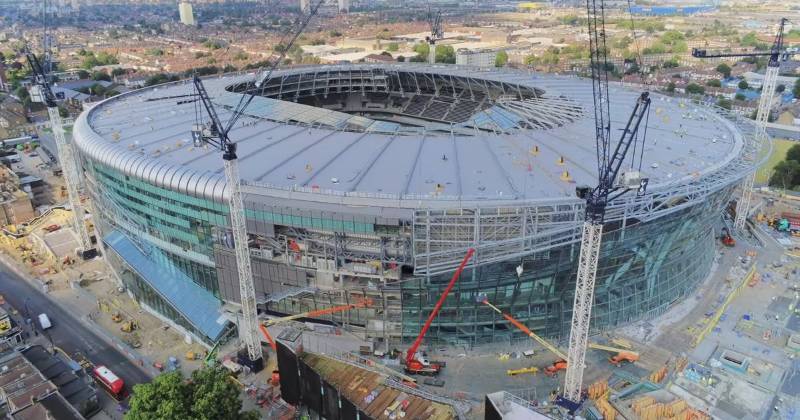

Emshield DFR System was used at the new Tottenham Hotspur Stadium for Fire Resistant Sealing of the High Movement, Wide Structural Movement Joints

Emshield DFR System was used at the new Tottenham Hotspur Stadium for Fire Resistant Sealing of the High Movement, Wide Structural Movement Joints

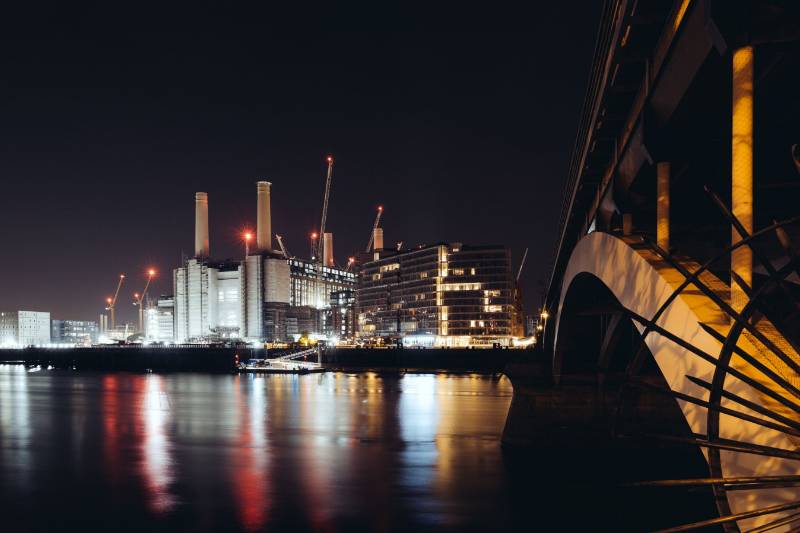

Emshield DFR-2 has been used to successfully sealing & ensuring 2-Hour Fire Resistance, in the more than >100 mm Wide, High Movement, Structural Floor Joints in the Battersea Power Station Redevelopment

Emshield DFR-2 has been used to successfully sealing & ensuring 2-Hour Fire Resistance, in the more than >100 mm Wide, High Movement, Structural Floor Joints in the Battersea Power Station Redevelopment

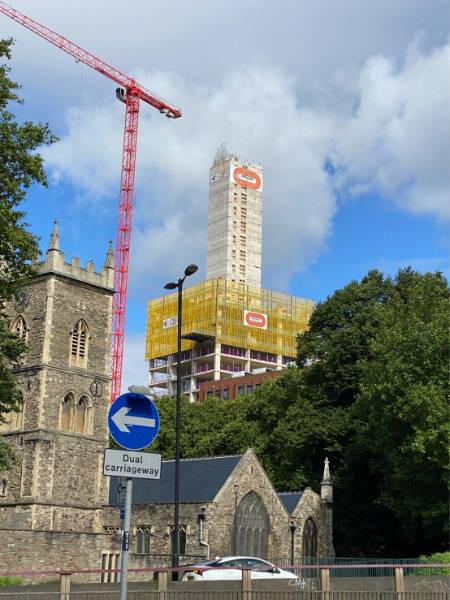

Emshield DFR/WFR - CE has been specified and successfully installed on the Castle View Development in Bristol - Successfully Sealing and providing increased Fire Resistance to the Wide,  High Movement, Structural  Movement Joints

Emshield DFR/WFR - CE has been specified and successfully installed on the Castle View Development in Bristol - Successfully Sealing and providing increased Fire Resistance to the Wide, High Movement, Structural Movement Joints

Emshield DFR-2 Seals Wide (100mm +), High Movement (+/- 50%), Fire Resistant (min 2hrs), Structural Deck & Floor Movement Joints at the Wood Wharf Development in London

Emshield DFR-2 Seals Wide (100mm +), High Movement (+/- 50%), Fire Resistant (min 2hrs), Structural Deck & Floor Movement Joints at the Wood Wharf Development in London

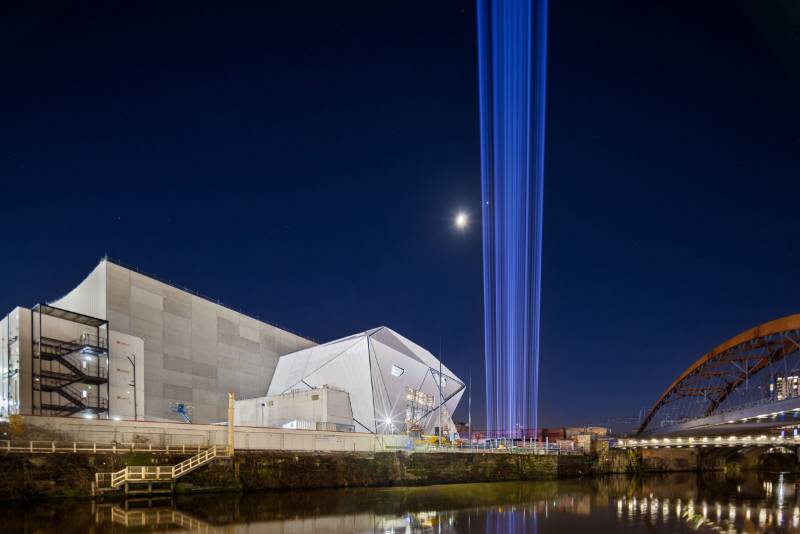

Emseal Acoustic & Thermal Movement Joint Sealing for the New Aviva Studios, Manchester - The Factory

Emseal Acoustic & Thermal Movement Joint Sealing for the New Aviva Studios, Manchester - The Factory
