EverDrain 25mm - Drainage layer

Verified by manufacturer 2 months ago

Evergreens UK Group

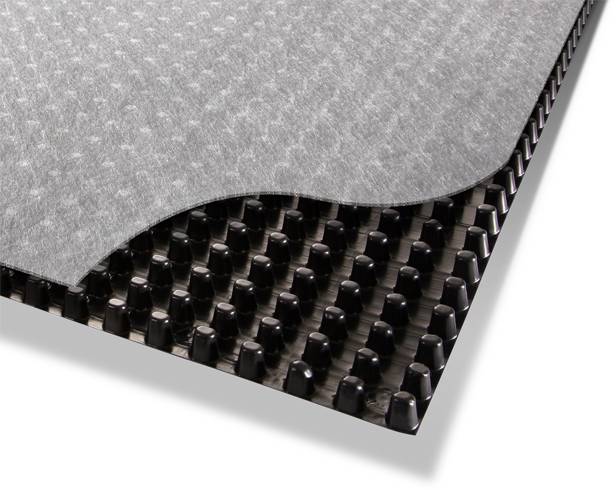

EverDrain 25mm is a drainage layer used for projects requiring horizontal drainage, this is primarily used for roof garden installations with our EverRoof EVR1 system used on warm roof areas.

Jump to:
BOS
+44 (0)1572 768208 Website

Application

Suitable for use on projects requiring horizontal drainage, this is primarily used for EverRoof EVR1 warm roof garden installations.

Description

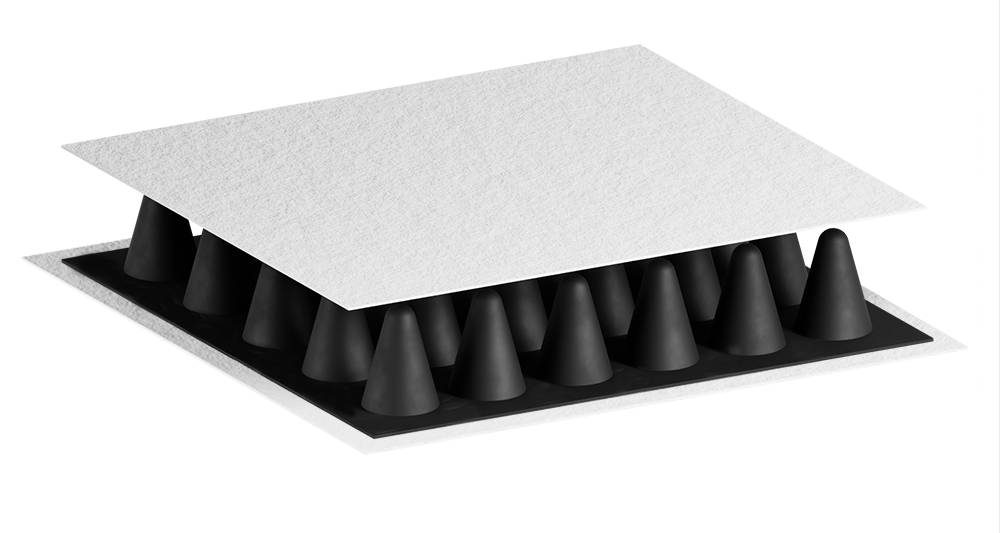

EverDrain drainage layer is purpose designed to provide horizontal drainage on EverRoof EVR1 Broof (T4) roof projects or other areas where artificial grass will be installed and requires water to freely flow away.


Features and benefits:

  • Cuspated HDPE core.
  • Polypropylene geotextile.
  • Puncture resistance 4800 N.
  • Waterflow: 50 mm head: 75 L/m²/s; 2 kPa permeability: 2.8 x 10^-3 m/s.

General information

Color

Black

Finish

Other

Material

High density polyethylene (HDPE)

Guidance for specification option:

Core.

Polypropylene

Guidance for specification option:

Geotextile.

Shape

Other

Length

Bespoke

Width

910 mm

Height

25 mm

Uniclass

Pr_25_71_63_24 Drainage layer corrugated boardsPrimary

CAWS

Q37/350 Drainage layer

Specification data - Drainage layer corrugated boards

Material

Cuspated HDPE core and Polypropylene geotextile.

Depth

26.8 mm.

Elongation

50%.

Puncture resistance

4800 N.

Roll width

915 mm.

TensileStrength

31 kN/m.

Water flow through geotextile

50 mm head: 72 L/m²/s; 2 kPa permeability: 3.2 x 10^-3 m/s.

Weight

1800 g/m².

Sustainability data

Contains Red List materials

No

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
