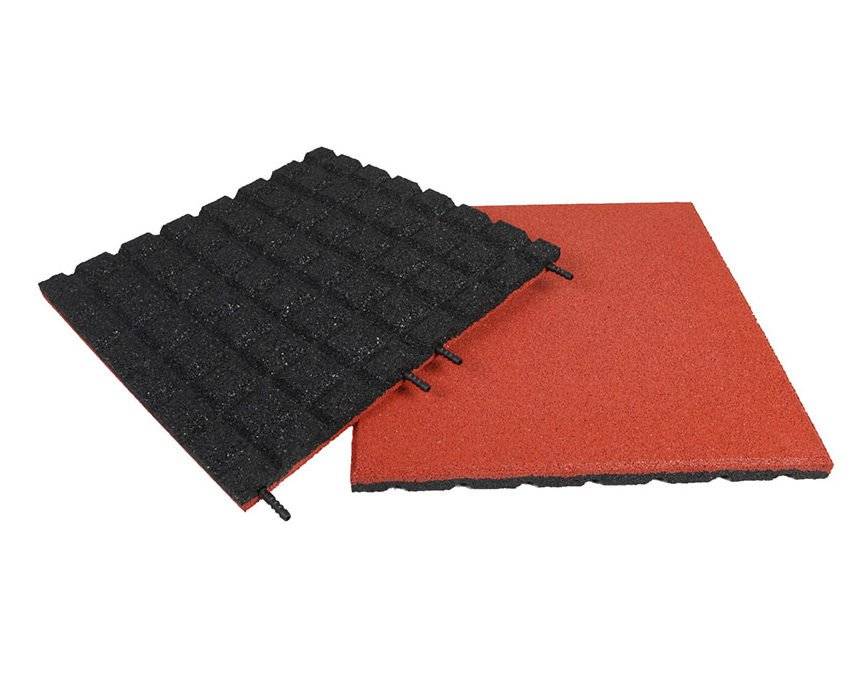

Dflect EPDM Rubber Playground Tile - Rubber Tile

Verified by manufacturer 1 month ago

Castle Composites Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Styrene-butadiene rubber (SBR) playground tile with a polyurethane (PU) binding agent and a top layer of ethylene propylene diene monomer (EPDM).

Jump to:
BOS
+44 (0) 1555 870 003 Website

Application

Suitable for use within playground applications.

Description

Styrene-butadiene rubber (SBR) playground tile with a polyurethane (PU) binding agent and a 5 mm top layer of ethylene propylene diene monomer (EPDM).


Features and benefits:

  • Available in a wide range of colour options.
  • Includes a drainage channel design.
  • REACH compliant.
  • TUV certified.
  • UV stable.
  • Good flammability and smoke classification.
  • Suitable for use in areas with children (not subject to carbon leaching).
  • Can be used with polyurethane (PU) adhesive for fitting - consult manufacturer for details.

General information

Color

Beige

Black

Blue

Green

Grey

Guidance for specification option:

  • Dark grey.
  • Grey fleck.
  • Light grey.

Show more

Finish

Anti-slip

Material

Rubber

Guidance for specification option:

Styrene-butadiene rubber.

EPDM

Shape

Square

Length

500 mm

Width

500 mm

Height

30 mm

Warranty description

Three year

Guidance for specification option:

  • For wear-resistance, with the exception of tiles that are used intensively.
  • Does not apply to colour.

Uniclass

Pr_35_57_71_25 Ethylene propylene diene monomer (EPDM) rubber tilesPrimary

CAWS

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

Product range

Rubber Tiles

Specification data - Ethylene propylene diene monomer (EPDM) rubber tiles

Standard

To BS EN 1177.

Thickness (minimum)

25 mm.

30 mm.

40 mm.

45 mm.

50 mm.

65 mm.

80 mm.

100 mm.

Size

500 x 500 mm.

Colour

Beige.

Black.

Blue.

Green.

Grey.

Grey fleck.

Red.

Sunburst.

Dark grey.

Light grey.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

To BS EN 7976 & EN1339 Annex 1, dry: 102 wet: 62.

Guidance for specification option:

Low potential for slip.

Surface roughness (Rz) (minimum)

Consult manufacturer.

Recycled content

0%.

Material:

Styrene-butadiene rubber (SBR) with EPDM coating.

Third-party certification

REACH compliant and TUV certified.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
