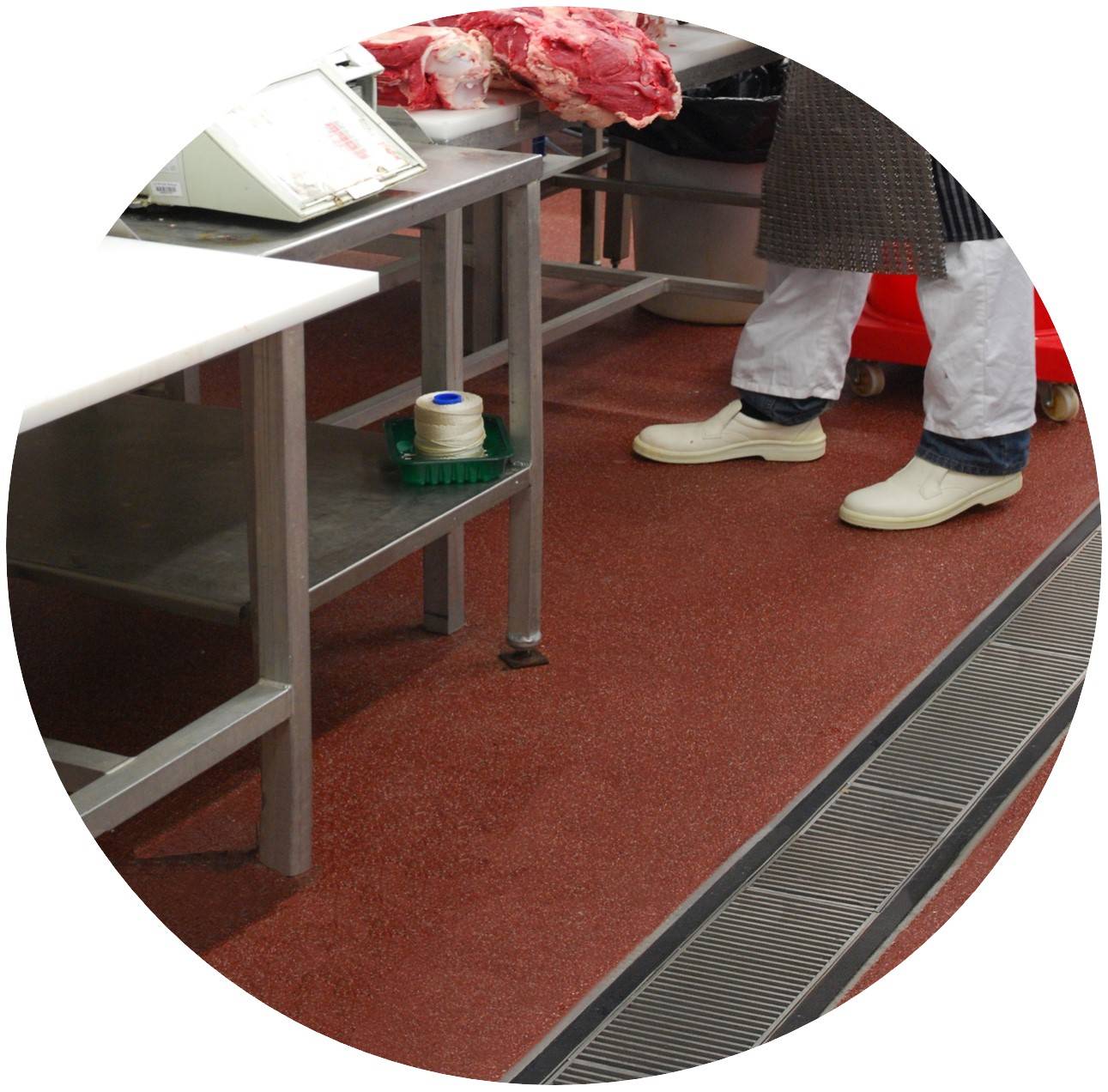

A heavy duty full broadcast textured system based on quick curing resins, created through the broadcasting of coloured quartz aggregate and coloured ali-oxide, providing excellent wear resistance.
Suitable for areas which are continually exposed to high levels of machinery, heavy loads, robotic actions or mechanical process.
Hard wearing, slip resistant, watertight, waterproof, sealed.
Applied by approved Degafloor installers.
A heavy duty system that is 50% more hard wearing than a standard Full Broadcast system.
A methyl methacrylate (MMA) resin screed.
The textured surface is achieved with a full broadcast of coloured quartz and coloured aluminium oxide, which is finished with seal coats providing a fully encapsulated system.
Features and benefits:
Color | Grey Red White Yellow |
Finish | Textured |
Material | Methyl methacrylate |
Warranty description | Ten year |
Uniclass | |
CAWS | M12/110 Resin flooring M12/10 Resin flooring |
System performance | Watertight, impervious to moisture. |
Substrate | |
Testing | Bond test, moisture and compressive tests undertaken by the Degafloor Approved Installer.Guidance for specification option: This is part of Degafloor's Warranty process. |
Preparation | Mechanical preparation required. |
Levelling screed | Bonded or partially bonded cementitious levelling screed system. |
Primer | Manufacturer guidancePrimer dependant on the substrate, i.e. metal, timber, cementitious, asphalt. Specific primer is used for maximum adhesion. Consult manufacturer and insert requirements. |
Resin flooring | Heavy-duty flow-applied flooring. |
Surface treatment | Slip-resistant surface treatments. |
Movement joints | |
Type | Degafloor Flexible Resin Jointing Compound. |
Resin skirtings and upstands | Skirtings and coving to match flooring colour. |
Execution | Installation by Degafloor Approved Installers.Manufacturer guidanceAll Degafloor systems are installed by Degafloor Approved Installers, training must be undertaken. |
System completion | Testing slip resistance. |
Abrasion resistance | Weight loss <3000 mg. |
Adhesion strength | ≥2.0 N/mm². |
Finish | Textured. |
Material | MMA. Guidance for specification option: Methyl methacrylate resin. |
Bond strength | ≥B2.0 |
Capillary absorption | W <0.1 kg/(m²·h^0.5). Guidance for specification option: Capillary absorption and permeability to water. |
Carbon dioxide permeability | SD >50 m. |
Chemical resistance | Reduction in hardness <50%. |

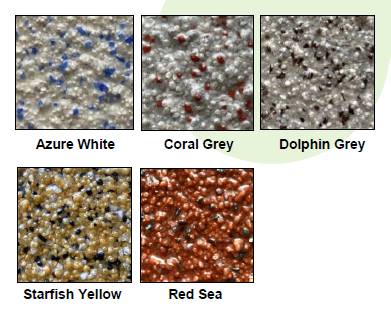

Colour | Azure White. Coral Grey. Dolphin Grey. Red Sea. Starfish Yellow. |
Curing time | 1 hour. |
Impact resistance | Class I, ≥IR 4. |
Reaction to fire | Not tested. |
Release of corrosive substances | SR. |
Standard | To BS EN 1504 and BS EN 13813. |
Third-party certification | To British Board of Agrément-certified (20/Q064). |
Water vapour permeability | Class III. |
Wear resistance | ≤AR 0.5. |
Cleaning options | Guidance for specification option: Cleaning equipment and products for all industrial and commercial floor maintenance. Consult manufacturer and insert requirements or omit:
Manufacturer guidanceFloor Cleaning Solutions. See manufacturer literature 'DegaClean Cleaning & Maintenance Brochure'. |
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
